Lubrication item
Support table
Lubrication frequency: two months
Tool to be used: Brush Grease to be used: 6459 Grease N
1) Move up the support table with the “Manual Control” application, and then apply grease to the entire
surface of the threaded shafts of three ball screws from both sides. There are four ball screws in
case of a machine for an extra-large board.
Ball screws
Support tables
Ball screws
Part 1 Basic Operation Chapter3 Daily maintenance
3-32

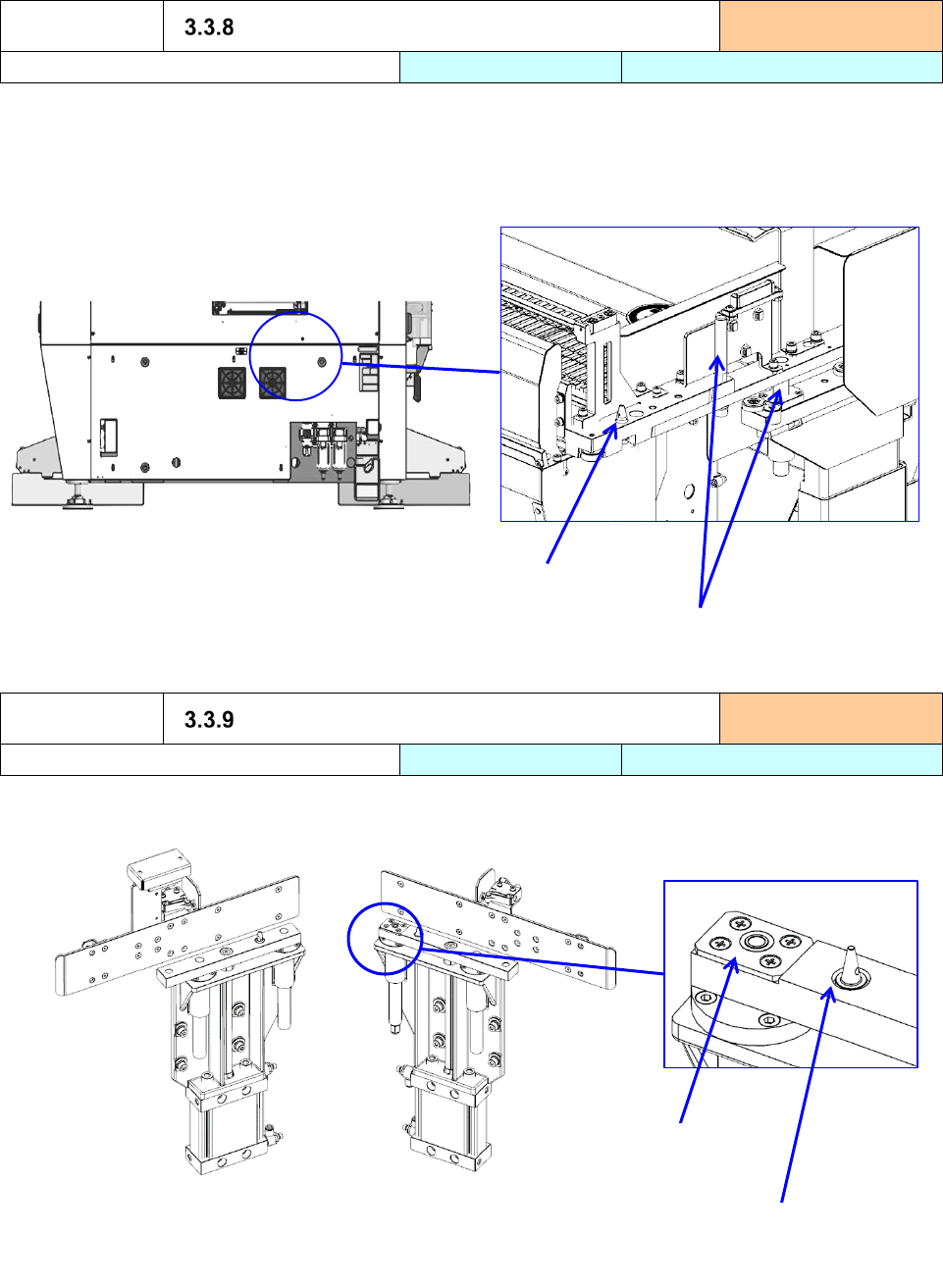

1) Apply grease to the “bank locating pins” and the “guide shafts.”
2) Apply grease to the pin reception side (of the mounter) of the bank locating pin also.
3) Apply grease to the “bank locating pins” and the “O-ring.”
Lubrication item
Feeder exchange trolley
Lubrication frequency:
every two months
Tool to be used: Brush Grease to be used: 6459 grease N
Lubrication item
Bank lifter
Lubrication frequency:
every two months
Tool to be used: Brush Grease to be used: 6459 grease N
Bank locating pin (at two positions
on both sides)
Guide shafts (at four positions of
both sides)
Bank lifter L (left)
Bank lifter R (right)
O-ring
Bank locating pin (at two
positions of both sides)
Part 1 Basic Operation Chapter3 Daily maintenance
3-33

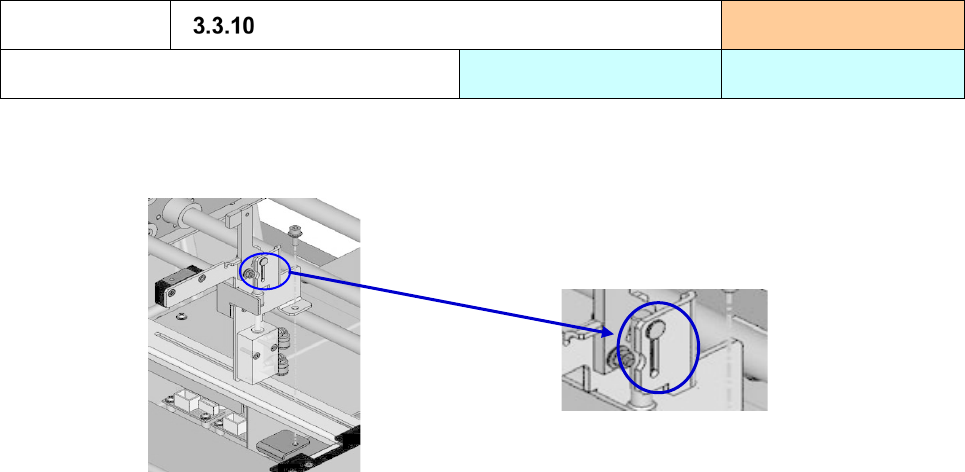

1) Apply grease to the “Stopper Pin.”
Apply grease to the reception side (each elongate hole of the stoppers L and R of the stopper
brackets L and R) also.
Lubrication item
Conveyor stopper
Lubrication frequency:
Every two months
Tool to be used: Brush
Grease to be used:
6459 Grease N
