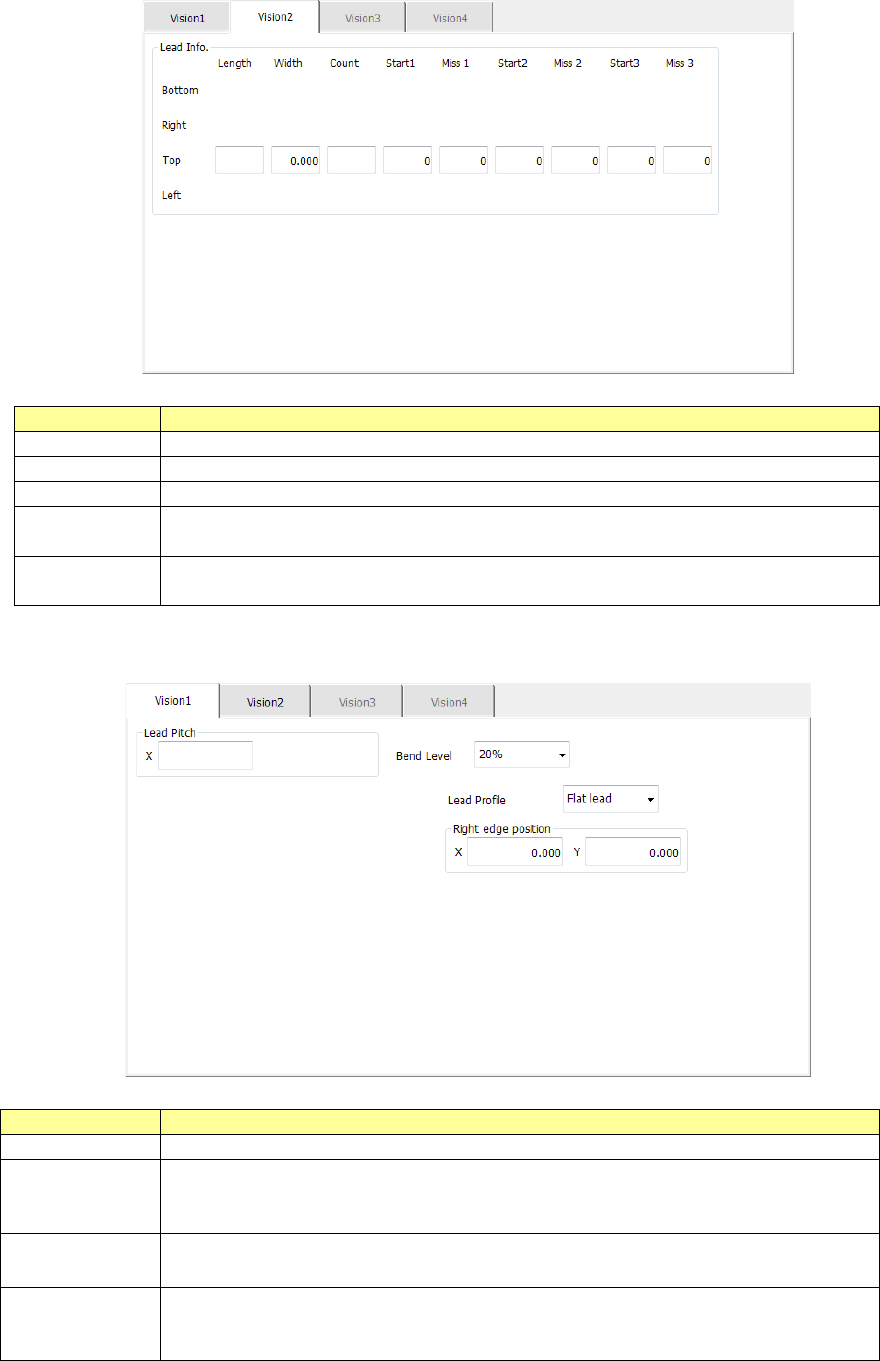

Part 1 Basic Operation Chapter 4 Creating a Production Program
4-105
The “Vision 2” tab allows you to set information on leads.
Menu item
Overview
Length
Enter the length of a section of a lead that is in contact with a board.
Width
Enter the width of a lead.
Count
Enter the number of leads when a component type is a lead component.
Start 1 to 3
Enter the position of a missing lead.
The input range is from 0 to the number of leads (default: 0).
Miss 1 to 3
Enter the number of missing leads.
The input range is from 0 to the number of leads (default: 0).
9) Extended lead
The “Vision 1” tab allows you to set the lead pitch and the lead bending level.
Menu item
Overview
Lead Pitch
Enter the distance between two consecutive leads.
Bend level
Select the bending level of a lead to be detected among “15 %,” “20 %,”
“25 %,” “30 %” and “None.”
The default value is 20 %.
Lead Profile Select the lead shape, “Flat lead” or “Gullwing lead.”
Right edge
position
Enter the position of the right edge of a lead in the “X” and “Y” fields.
Input range of the “X” field: - 99.00 to 99.00
Input range of the “Y” field: - 99.00 to 99.00

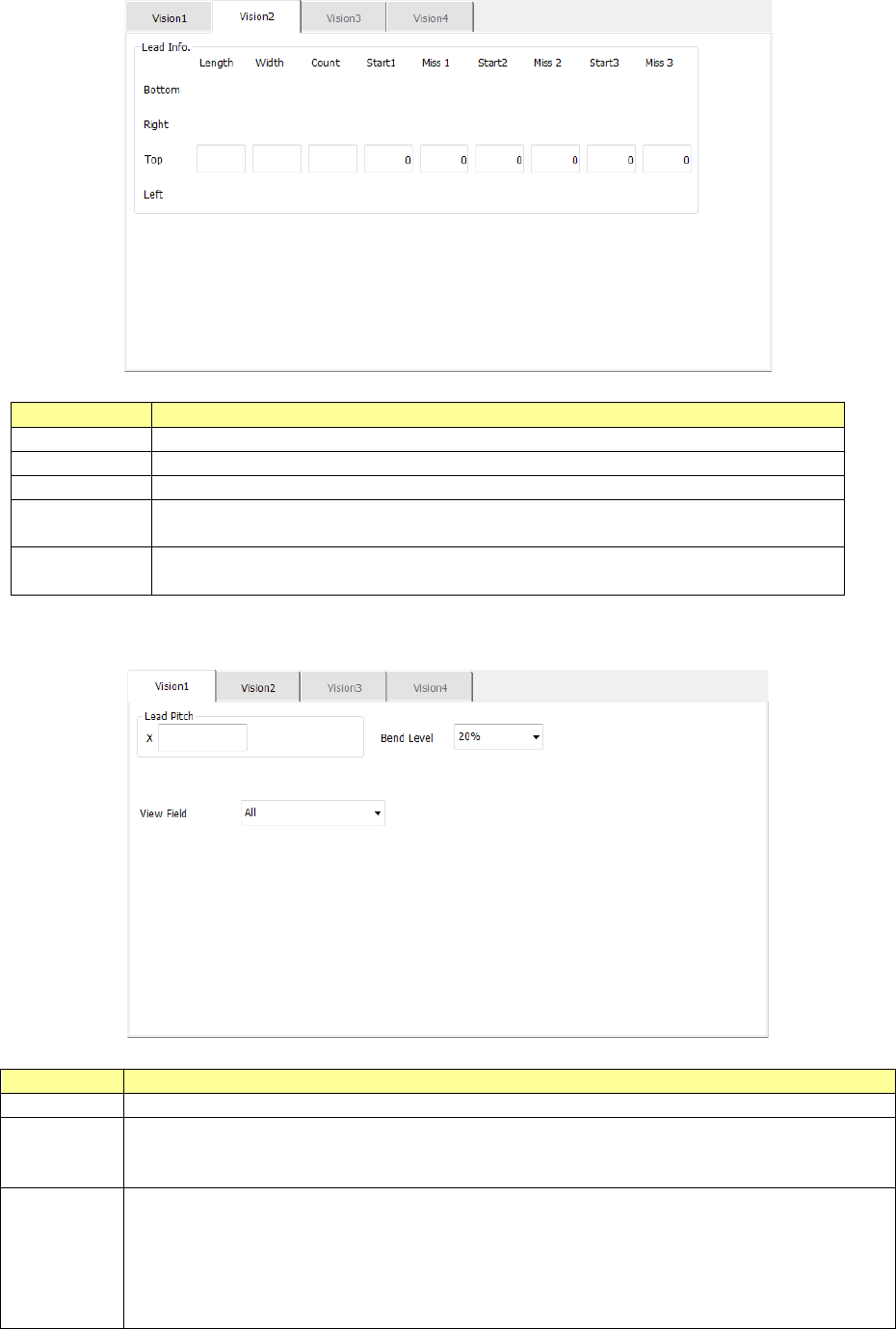

Part 1 Basic Operation Chapter 4 Creating a Production Program
4-106
The “Vision 2” tab allows you to set information on leads.
Menu item
Overview
Length
Enter the length of a section of a lead that is in contact with a board.
Width
Enter the width of a lead.
Count
Enter the number of leads when a component type is a lead component.
Start 1 to 3
Enter the position of a missing lead.
The input range is from 0 to the number of leads (default: 0).
Miss 1 to 3
Enter the number of missing leads.
The input range is from 0 to the number of leads (default: 0).
10) Bidirectional lead, Z-lead
The “Vision 1” tab allows you to set a lead pitch and a lead bending level.
Menu item
Overview
Lead Pitch
Enter the distance between two consecutive leads.
Bend level
Select the bending level of a lead to be detected among “15 %,” “20 %,” “25 %,”
“30 %” and “None.”
The default value is 20 %.
View Field
Select the range of leads of a connector component to be recognized and that not to
be recognized among “All” (all leads), “Only the both ends lead” (only leads on both
ends) and “Both ends lead exclusion” (leads on both ends are excluded).
“All” is selected by default.
When you select “Only the both ends lead” or “Both ends lead exclusion,” the items
“L Top,” “R Top,” “L Bot.” and “R Bot.” are displayed.

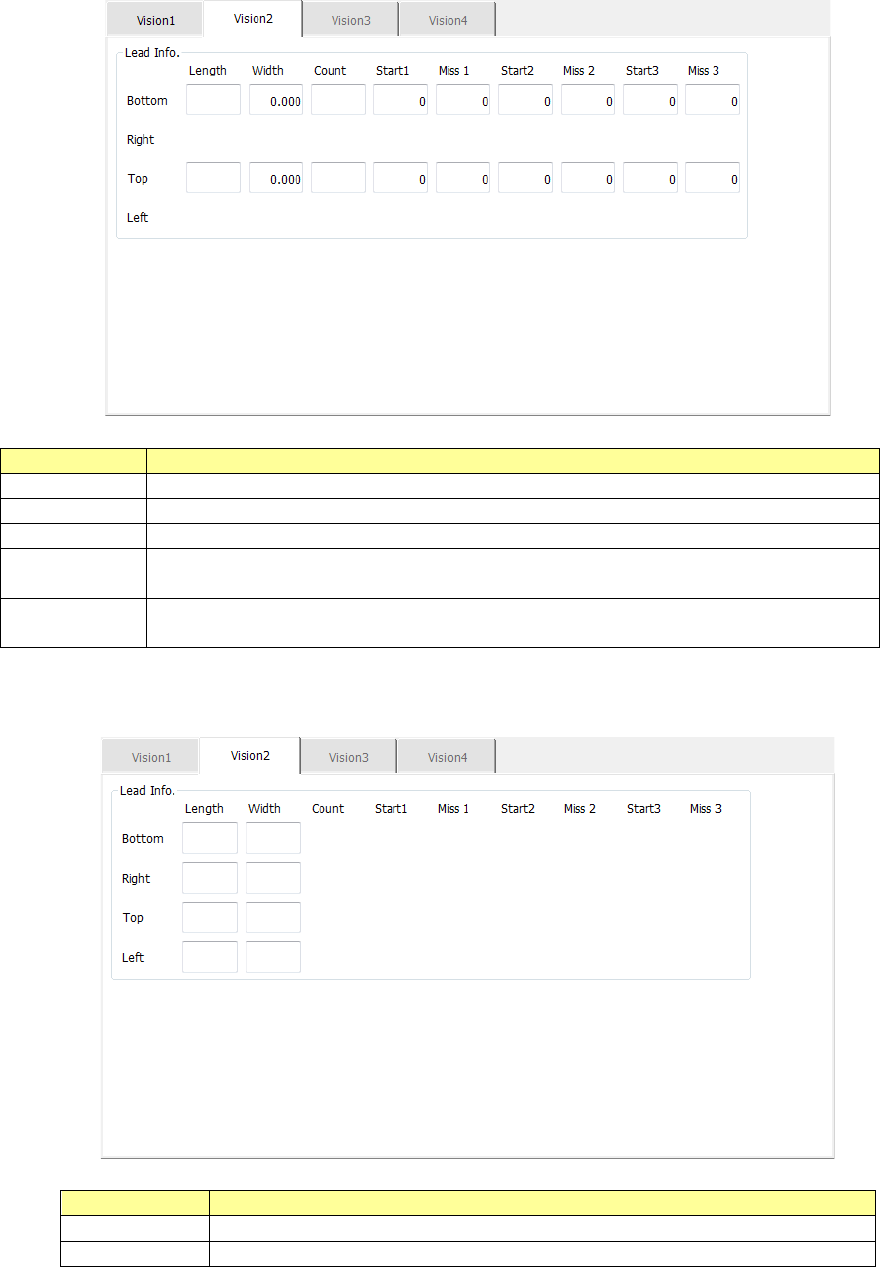

Part 1 Basic Operation Chapter 4 Creating a Production Program
4-107
The “Vision 2” tab allows you to set information on leads.
Menu item
Overview
Length
Enter the length of a section of a lead that is in contact with a board.
Width
Enter the width of a lead.
Count
Enter the number of leads when a component type is a lead component.
Start 1 to 3
Enter the position of a missing lead.
The input range is from 0 to the number of leads (default: 0).
Miss 1 to 3
Enter the number of missing leads.
The input range is from 0 to the number of leads (default: 0).
11) GaAsFET
The “Vision 2” tab allows you to set information on leads only.
Menu item
Overview
Length
Enter the length of a section of a lead that is in contact with a board.
Width
Enter the width of a lead.
