Part 2 Detailed Description of Each Function Chapter 8 Machine Setup

8-21

ATC Setting

Set information on an ATC to be used.

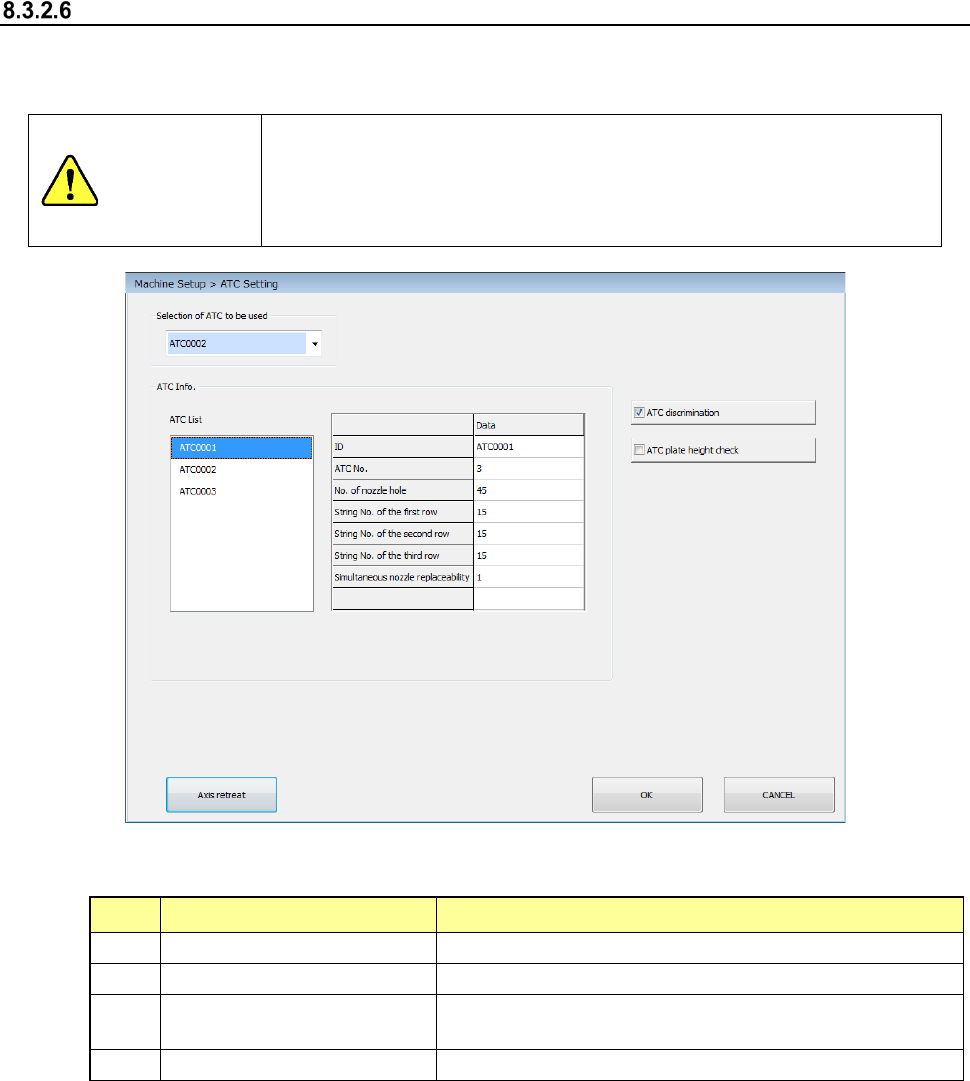

When you select the [ATC Setting] command, the following screen appears.

CAUTION

Be sure to turn off the machine before attaching/detaching or replacing

an ATC plate.

After replacing an ATC plate with another one, be sure to make

settings of the ATC plate on this screen.

If you do not follow this procedure, a nozzle may be damaged.

(1) Setting items

No. Item Description

Selection of ATC to be used

Select an R-ATC to be used.

ATC Info.

Displays the list of registered ATCs and ATC information.

ATC discrimination

Sets the function for discriminating the mounted ATC to

ON/OFF.

4 ATC plate height check Sets the height check of the mounted ATC plate to ON/OFF.

(2) How to set

1) Select an R-ATC to be used from the combo box.

2) Specify whether to discriminate the ATC with the check box.

(3) ATC discrimination operation

1) When you enable the “ATC discrimination” check box, the system discriminates the ATC

at the following timing.

Except for during d) production below, when the system succeeds in discriminating the

ATC on each screen, it does not discriminate the ATC again unless you close the

screen.

a) Machine Setup

- When you change the ATC

Part 2 Detailed Description of Each Function Chapter 8 Machine Setup

8-22

b) Program Editor

- Machine operation: when each function of measurement is executed

- Machine operation: when each function of inspection is executed

c) Manual Control

- When you open the “Atc control” screen

d) Production

- When production starts from the “Production” top screen

- When you restart the suspended production from the pause state caused due to

pressing of the STOP switch

* The system does not discriminate an ATC when you restart the suspended

production from the pause state caused because components run out or an error

occurs.

Condition

ATC discrimination

operation

When the initial production starts

○

When production starts after the previous production finishes

○

When continuous production starts

○

When you restart the production suspended due to a

temporary stop requested by a user

(When you restart the production suspended by the <STOP>

switch)

○

When you restart the production suspended due to an error

(For example, components run out or a laser recognition

error occurs.)

When you restart the production suspended as indicated on

the Retry List.

e) Teaching

- When you switch the selected device to be taught to a head

2) The system discriminates an ATC at the following timing regardless of the setting of the

“ATC discrimination” check box.

- When the semi-automatic nozzle return operation is performed

(4) ATC plate height check

When you check off this check box, the system measures four corners of the plate with the

HMS before discriminating an ATC to check to see if the plate is mounted on the machine

correctly.

CAUTION

When you disable the “ATC discrimination” check box, the system

allows a nozzle to be attached/detached on/from an ATC without

discriminating the ATC. Note that even though the mounted ATC

does not match the ATC specified in a production program, it

attaches/detaches a nozzle on/from the ATC.

Do not replace the ATC with another one without changing the setting of

the “Selection of ATC to be used.” A nozzle may be damaged.

Part 2 Detailed Description of Each Function Chapter 8 Machine Setup

8-23

Attaching the R-ATC

To attach the R-ATC on the machine, pay attention to the descriptions below, and then attach it

securely.

(1) Check to see if the reference pins at two positions are positioned to the R-ATC securely.

(2) Check to see if the plate fixing screws (M4 hexagon-socket-head screws) are set at four

positions securely, and the R-ATC adheres to the ATC base.

Reference pin

Plate fixing screws

R-ATC

ATC base

* No gap
