Part 1 B asic O peration Chapter 1 Overv iew of the Machine 1- 21 Configuration of a Vision Ce ntering System (VCS) When the co m binat ion and br ightness o f each LED lig hting un it are adjusted, var ious lighting pat…
Part 1 Basic Operation Chapter 1 Overview of the Machine
1-20
(3) Minimum component width (D) of each component
⑥ SOJ
① Square chip ② MELF
③ Aluminum
electrolytic capacitor
D = A + 0.5mm
④ SOT ⑤ SOP
⑦ QFP
⑫ BGA
⑧ PLCC ⑨ BQFP
⑩ TSOP
⑪ TSOP2
⑬ Network resistor ⑭ Trimmer
⑮ One-way lead connector
⑯ Gull wing socket
J lead socket
Socket with bumper
A
D
A
D
W
D
A
D = A
A
D
A
D
A
D
A
D
A
A
D = A
A
D
A
D
A
D
A
D = A
D
A
A
A
D = A
Part 1 Basic Operation Chapter 1 Overview of the Machine
1-21
Configuration of a Vision Centering System (VCS)
When the combination and brightness of each LED lighting unit are adjusted, various lighting
patterns are generated and so a lighting pattern suitable for the object of recognition (lead, call, or
component outline) is generated.
The illuminated object of recognition is photographed by the VCS camera provided in the lower part
and then image processing is performed.
Reflective/coaxial lighting : Lead components such as QFP and SOP
Side lighting : Ball components such as BGA and CSP
Penetrative lighting : Outline recognition components
① LED board (for the upper transmittance light)
② LED board (for lower transmittance light)
③ LED board (for the side light)
④ LED board (for the coaxial light)
⑤ 54 mm/27mm/10mm view camera
⑥ Cylinder (Only added when setting 2 cameras)
⑤
③
①
②
④
⑥
Part 1 Basic Operation Chapter 1 Overview of the Machine
1-22

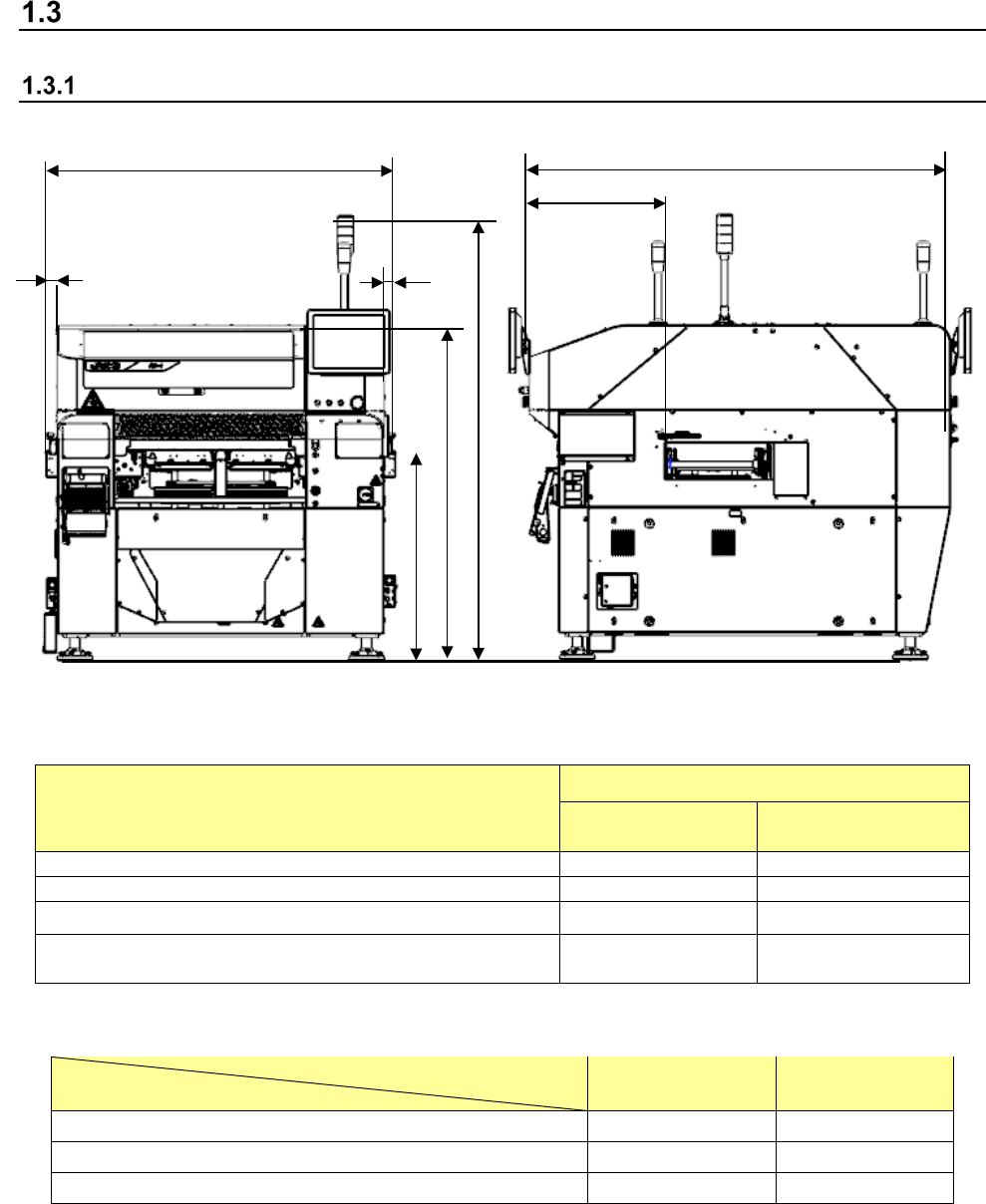

Mechanical specifications
Machine dimensions and mass
(1) Machine dimensions
Unit: mm
Location
Dimension
Standard board
size
Extra-large board
size
A (transport length)
1,500
2,109
C (depth: excluding LCD)
1,810
2,000
H (transport output amount) 50 Left: 354, Right: 220
I (Reference board transport path from the front of the
cover)
604 604
* The tolerance of the above dimensions shall be ±5 mm.
Unit: mm
Transport height
Dimensions
900mm 950mm
B (Top surface of the transport belt from the floor)
900
950
E (Top surface of the cover from the floor)
1,440
1,490
G (Top surface of the signal light from the floor)
1,905
1,955
(2) Mass
Standard board size: 1,700 Kg, Extra-large board size: 1,850 Kg
* Excluding bank and options.
A
B
E
G
H
H
C
I
