3.3 Lubrication
Lubrication item
XY-shaft direct drive unit
Lubrication frequency:
Every 6 months
Tool to be used: Grease gun Grease to be used: 6459 Grease N

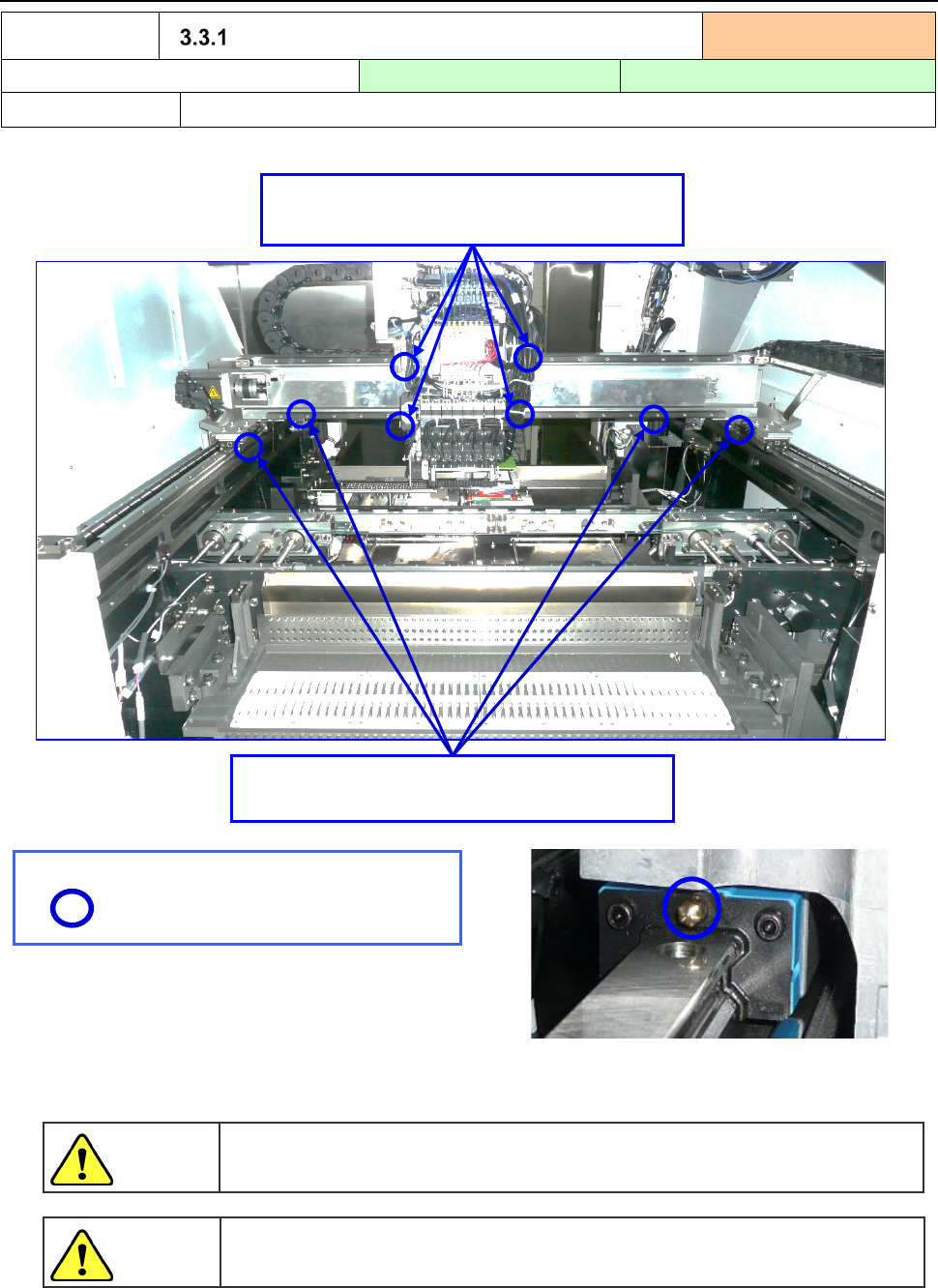

Where to lubricate
XY-shaft direct drive unit (grease nipple)
1) Use a grease gun to insert grease from the grease nipple of the XY-shaft direct drive unit.
Grease gun/nozzle to be used
40127626 GREASE_GUN
40127627 GREASE_GUN_NOZZLE
∗ Replace the nozzle that is assembled to the grease gun as standard shown above with the
GREASE_GUN_NOZZLE (40127627).
*Where to inject grease
LM guide grease nipple
X-shaft direct drive unit rail: four positions
on the top, bottom, right and left sides.
Y-shaft direct drive unit rail: four positions
on the top, bottom, right and left sides.
The grease for the LM guide is different from that for ball screws.
Do not use them in a mixed form.
CAUTION
To prevent the body from injury which can be caused by accidental activation of
the machine, cut off the power to the machine before starting to work.
DANGER
Part 1 Basic Operation Chapter3 Daily maintenance
3-28
Lubrication item
X/Y axis ball screw
Lubrication frequency:
Every 2 months
Tool to be used: Hand grease pump Grease to be used: NSL Grease

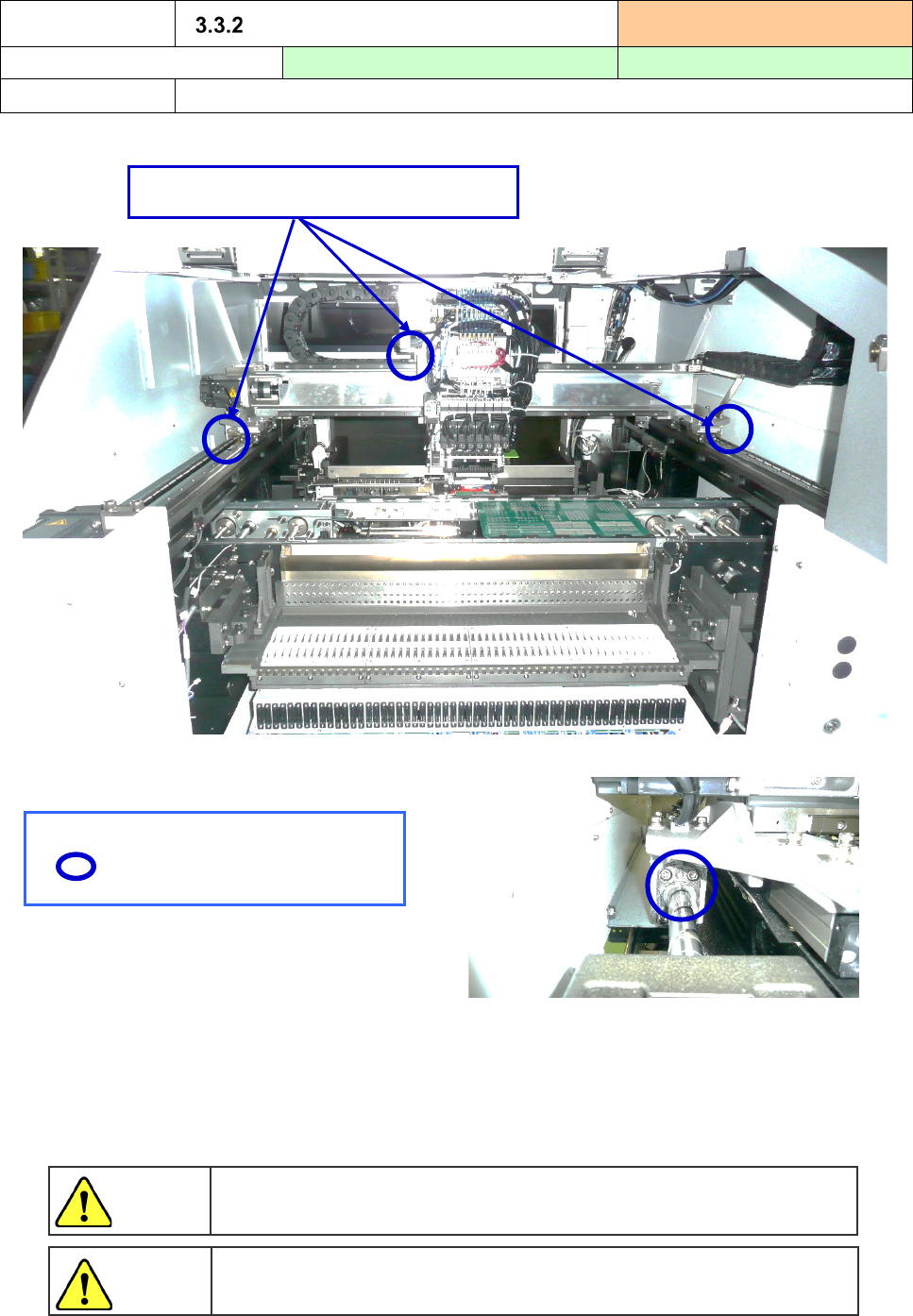

Where to lubricate
X axis ball screw (grease nipple)
1) Use a grease gun to insert grease from the grease nipple of the X axis ball screw.
Grease gun (pump)/nozzle to be used
40098975 NSK_HGP
40106055 FLEXIBLE_NOZZLE
∗ The oil can be applied even when using the nozzle that is
assembled to the grease gun as standard shown above.
However, it is convenient to use the FLEXIBLE_NOZZLE
(40106055).
* Where to inject grease
Ball screw grease nipple
X/Y axis ball screws (at three locations)
The grease for the LM guide is different from that for ball screws.
Do not use them in a mixed form.
CAUTION
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before starting
to work.
DANGER
Part 1 Basic Operation Chapter3 Daily maintenance
3-29

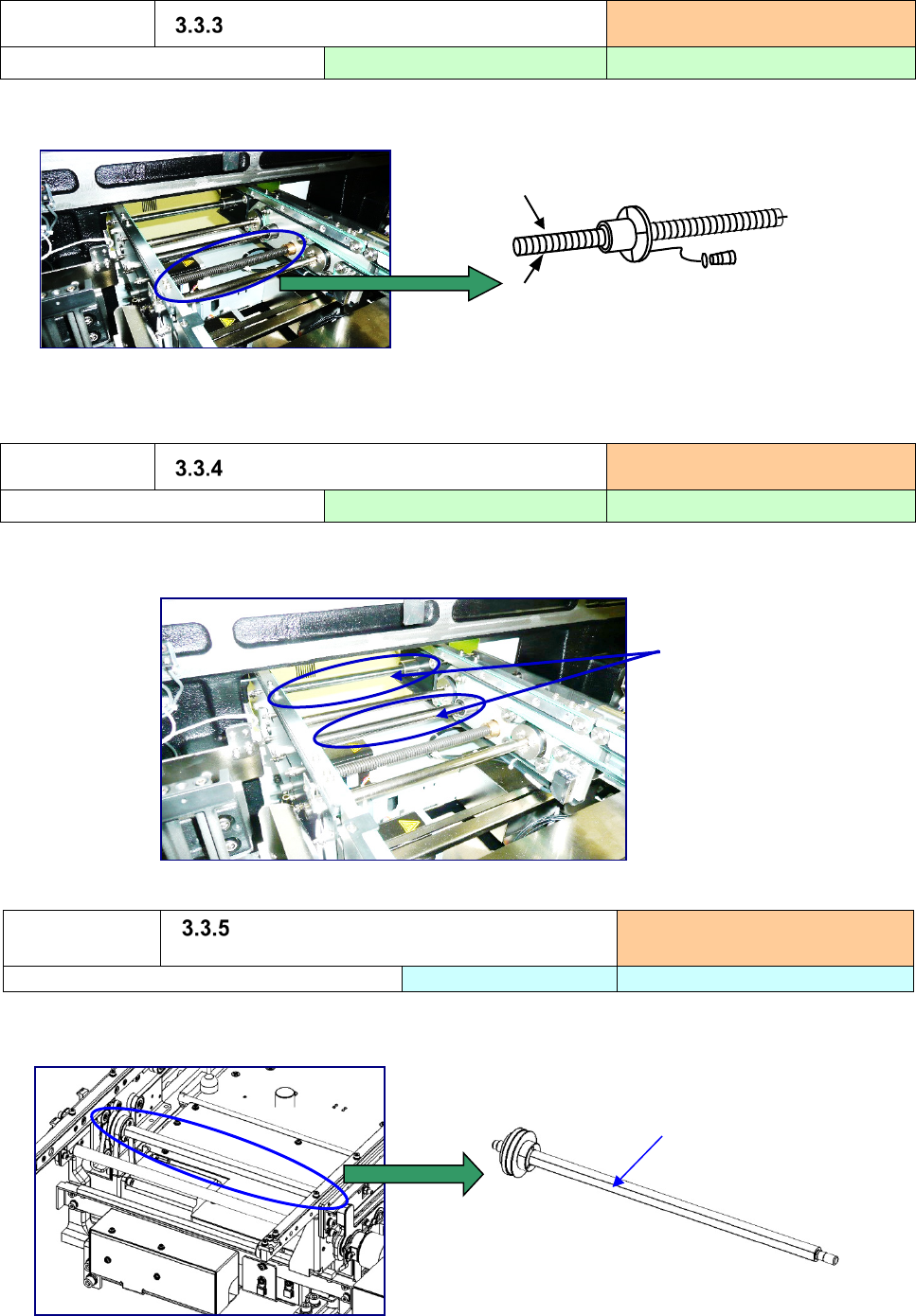

Lubrication item
Transport screw shaft
Lubrication frequency:
Every month
Tool to be used: Brush Grease to be used: 6459 Grease N
1) Screw shaft 1 on each side, right and left
Apply grease to the entire surface of ①.
Lubrication item
Transport guide shaft
Lubrication frequency:
Every month
Tool to be used: Brush Grease to be used: 6459 Grease N
1) Guide shaft: Two pieces on each of the left side and the right side (four pieces in total)
Apply grease to the entire surface of ①.
1) Two drive shafts both on the left and right sides: total four
Apply grease to the entire surface of ①.
Lubrication item
Drive shaft
(Single-lane conveyor specifications)
Lubrication frequency:
Every month
Tool to be used: Brush
Grease to be used: 6459 Grease N
①
*
①
①
