Part 1 Basic Operation Chapter 2 Production
2-164
Function for replenishing a component supply device with components when
the system pauses
When you check the option “Display ‘Supply’ button in the pause dialog” on the “Production (Pause)”
tab invoked from the “Operation option” screen, the <Supply> button is displayed in the “Various
information” group of the “Pause” screen.
The <Supply> button is displayed when the system pauses due to an error other than a component
run-out error and a mark recognition error.
When you press the <Supply> button, the confirmation message appears on the screen.
When you press the <Yes> button, the system refills the machine with components. Components
supplied with a tape feeder are to be refilled. When the machine is refilled with components, the
system resets the menu item “Remain” to the initial value if it is set to “0” in order to cancel a
component run-out error. When the value set in the menu item “Remain” is not “0,” the system
cancels the component run-out error without changing the setting of the menu item “Remain.”
When you press the <No> button, the system closes the confirmation message without doing
anything.
Part 1 Basic Operation Chapter 2 Production
2-165
Checking before PWB production starts
When you press the <START> switch of the operation panel to start PWB production, the system
checks a production program, creates a master schedule, and then check the master schedule in
order to judge that it can start PWB production.
- Checking a production program
- Creating a schedule
- Checking the schedule
If a warning is issued as a result of a production program check, the system displays the description
of the warning on the list. (Up to 100 warnings)
If the total number of errors and warnings such as an “incomplete production program” reaches 100,
the system aborts the check and then displays the list immediately.
If the system detects an error or the number of warnings reaches 100, the system cannot start PWB
production.
If no error occurs and the number of warnings does not reach 100 yet, you can start PWB
production by pressing the <START> switch again.

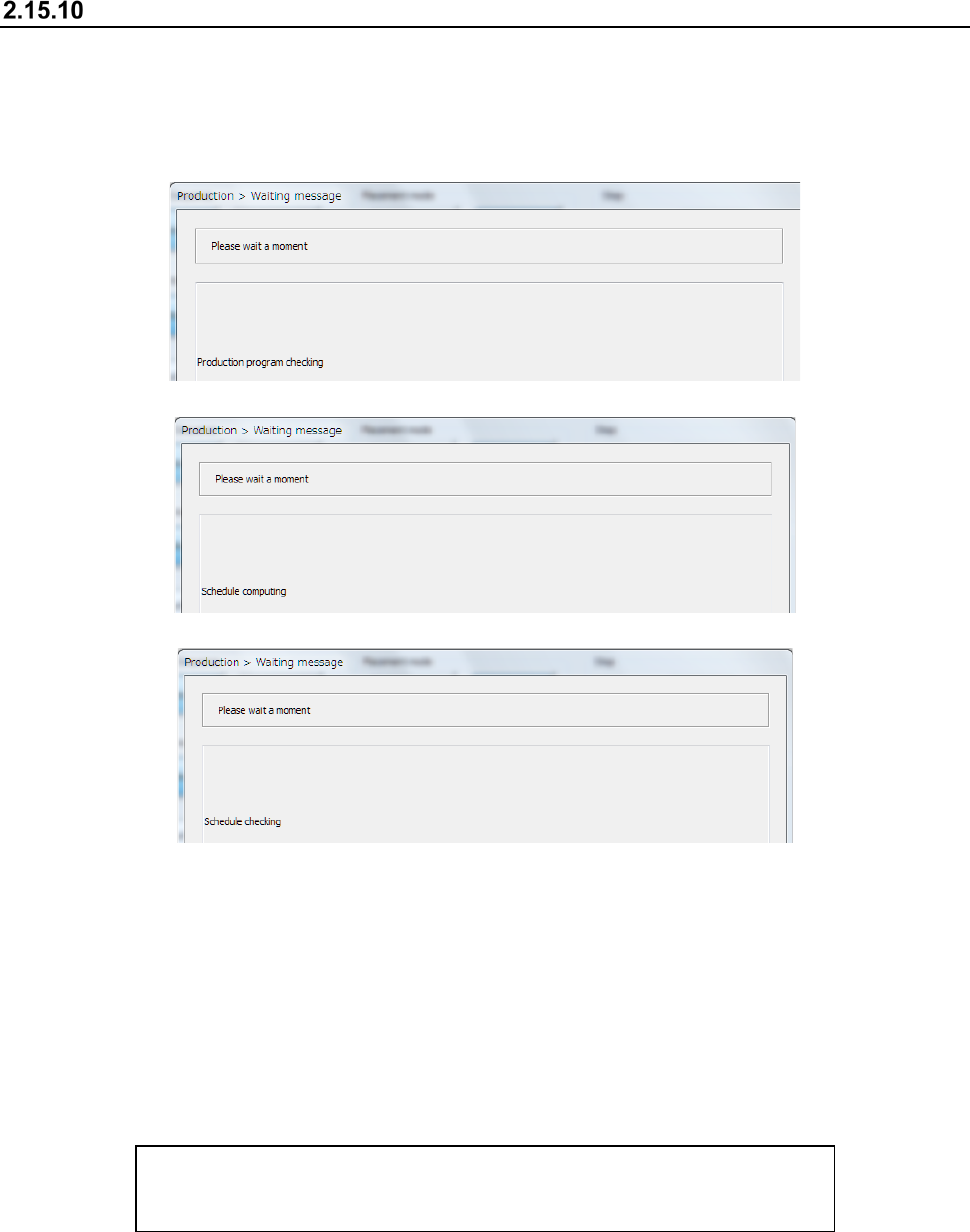

The list of errors or warnings is displayed in the following format:
Data name, error message
(Example) Component, The specified nozzle (7500) has not been set.
Part 1 Basic Operation Chapter 2 Production
2-166
Cycle Stop

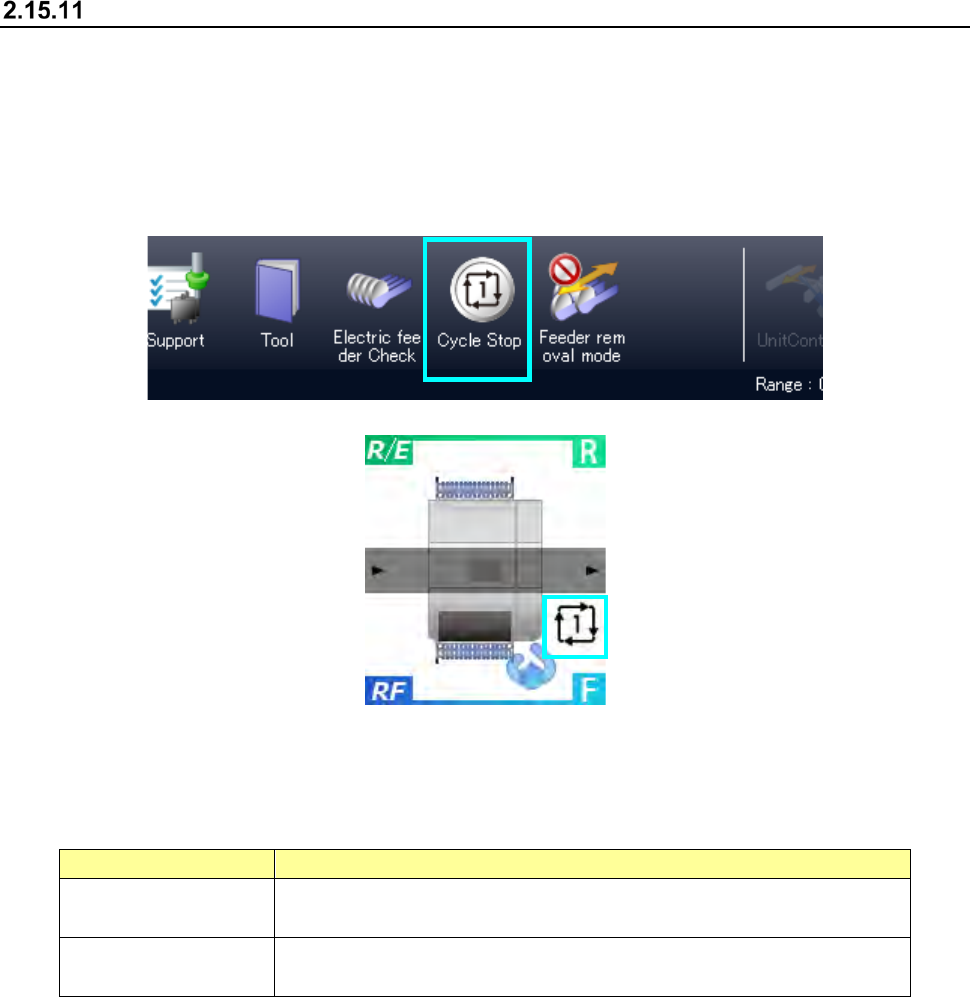

When you press the “Cycle Stop” button on the main menu, and the Cycle Stop icon appears on the
event display view, the system enters Cycle Stop mode.
In Cycle Stop mode, the system finishes PWB production with ejecting a board when it finishes
placing a component(s) on the PWB that is being produced.
This is handled as normal termination of PWB production.
When you press the <Cycle Stop> switch again in Cycle Stop mode, Cycle Stop mode is canceled.
You can specify when to terminate PWB production in Cycle Stop mode by specifying the
operation option “Action on cycle-stop” on the “Production (Function)” tab invoked from the
“Operation option” screen.
Menu item
Description
Do not eject PWB. Stops PWB production temporarily without feeding a board after placing all
components on the board.
Eject all WIP PWBs. After the system continues PWB production until it ejects all PWBs on which
all components are placed, it ejects the PWBs to finish the PWB production.
