Part 1 Basic Operation Chapter 1 Overview of the Machine
1-85
The system gets the error log file you have checked off and saves it.
If you check on the “Set” check box in the “Set Date” area of the “Set Criteria” area, specify a
start date and an end date, and click the <Check All Matches> button, the system checks the
error log files matching with the conditions.
If you check off the “Set” check box in the “Error Message Setting” area of the “Set Criteria” area,
specify a specific error code, and click the <Check All Matches> button, the system checks the
error log files matching with the conditions.
If you click the <Check All Matches> button when the “Set” check boxes in both the “Set Date”
and “Error Message Setting” areas of the “Set Criteria” area are checked, the system checks off
the error logs matching with both conditions.
If you check the “Check All” check box, all items displayed in the dialog box are checked.
If you uncheck the “Check All” check box, all items are then unchecked.
The error log files from now to one week before are checked off by default.
If you click <OK>, the settings you have made are saved and the “Save Machine Data: Advanced
Settings” dialog box is closed.
If you click <Cancel>, the settings are not saved and the “Save Machine Data: Advanced
Settings” dialog box is closed.
Part 1 Basic Operation Chapter 1 Overview of the Machine
1-86
The system gets the image data you have checked off and saves it.
If you check off the “Check All” check box, all items displayed in the dialog box are checked off.
If you uncheck the “Check All” check box, all items are then unchecked.
All image data files are checked on by default.
If you click <OK>, the settings you have made are saved and the “Save Machine Data: Advanced
Settings” dialog box is closed.
If you click <Cancel>, the settings are not saved and the “Save Machine Data: Advanced
Settings” dialog box is closed.
Part 1 Basic Operation Chapter 1 Overview of the Machine
1-87

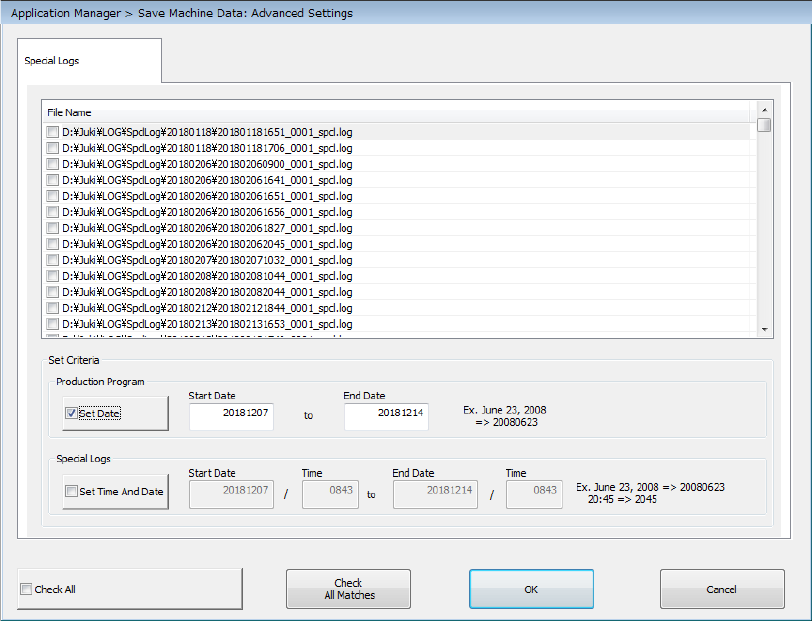

The checked special logs are acquired, and then saved.
When you check off the “Set Date” check box, specify the “Start Date” and the “End Date” in the
“Production Program” column of the “Set Criteria” area, and then press the <Check All Matches>
button, the system checks off items that match the specified criteria.
When you check off the “Set Time And Date” check box, specify the “Time” of the “Start Date”
and the “Time” of the “End Date” in the “Special Logs” column of the “Set Criteria” area, and then
press the <Check All Matches> button, the system checks off items that match the specified
criteria.
When you check off both the “Set Date” check box in the “Production Program” column and the
“Set Time And Date” check box in the “Special Logs” column of the “Set Criteria” area, and then
press the <Check All Matches> button, the system checks off items that match both specified
criteria.
When you check off the “Check All” check box, the system checks all displayed items.
When you clear this check box, checkmarks are erased from all displayed items.
By default, checkmarks are put in the check boxes of production programs, special logs and
operation information all of which were created from the day one week before to today.
The <OK> button closes the “Save Machine Data: Advanced Settings” dialog box.
The <Cancel> button closes the dialog box without making settings of the “Save Machine Data:
Advanced Settings” dialog box.
