Part 2 D etaile d Descript ion of E ach Functi on Chapter 12 Handling th e Optional Device s 12 - 18 3) Push the main un i t stoppe r against the feeder ba nk.

Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-17

12.3.3 Matrix tray server setup (When a TR8SR is selected)

12.3.3.1 Setting up the TR8SR (RS-1/1R)

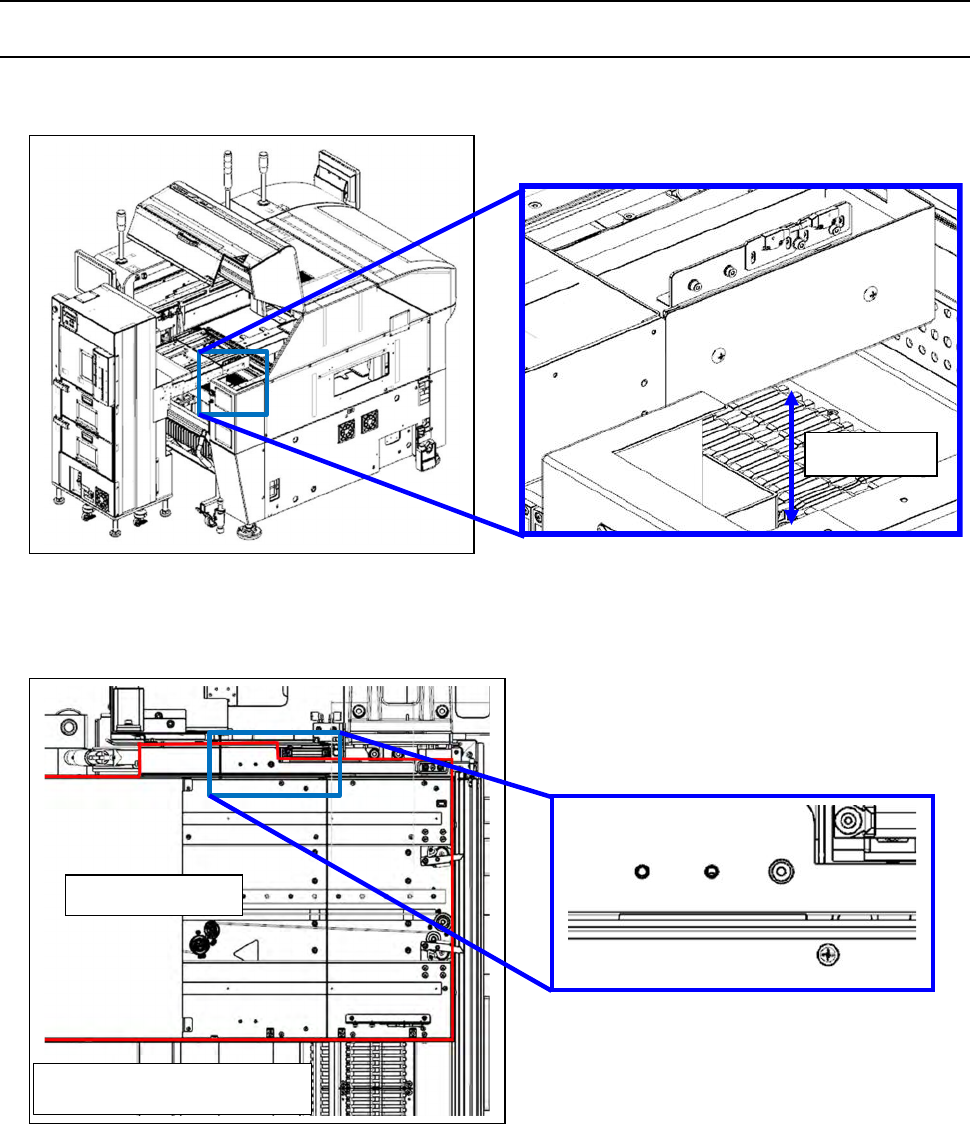

1) Indication of the installation height

2) Rubber stopper abutment.

32mm

RS-1 rear feeder bank

TR8SR body

RS-1/1R rear feeder bank

Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-18

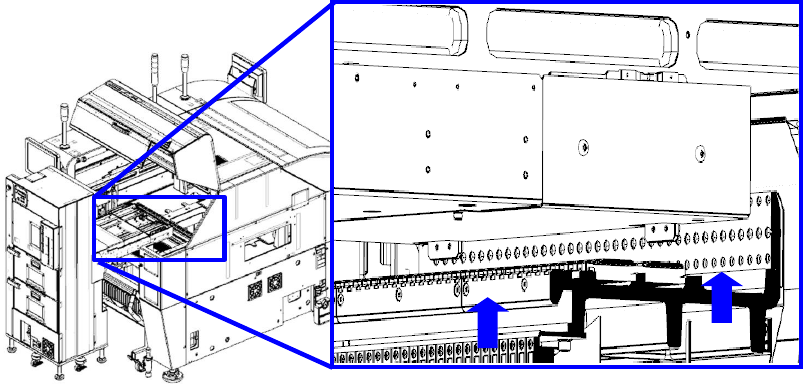

3) Push the main unit stopper against the feeder bank.

Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-19

12.3.3.2 Checking the height

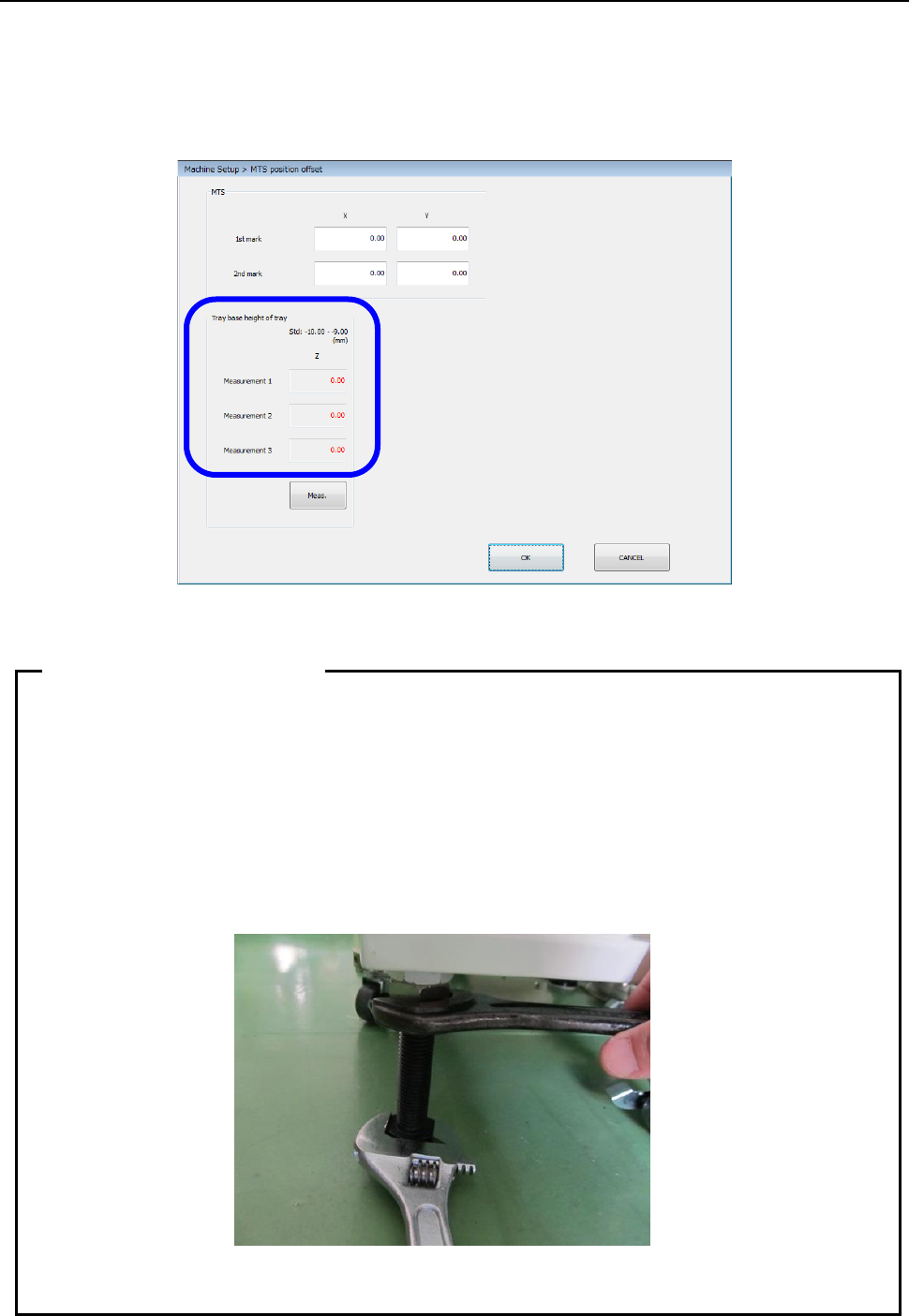

Set a tray base on the first stage of the MTS. After return-to-origin operation, display the “MTS

position offset” screen from the “Position setting” screen invoked from the “Machine Setup” screen,

and then press the <Meas.> button. The system pulls out the tray base, and automatically

measures the height. Check the screen shown below, and repeat this measurement operation and

adjustment of the height until a value in the range of – 10.00 mm to – 9.00 mm is displayed in each

of the “Measurement 1” field, the “Measurement 2” field and the “Measurement 3” field.

After the adjustment has been completed, tighten the adjuster nuts to secure the height.

• As the adjuster is turned one rotation, the height changes 2.5 mm.

• Since the adjuster screw has a play, pay special attention to the following points when

securing the adjuster with the nut.

① Adjust the Z-height to around -9.15 mm by taking the play into consideration.

② When tightening the fixing nut, put a spanner on the height adjustment nut and

hold it so that the adjuster does not turn.

• Turn four casters and four adjusters evenly to install them.

• After the setup has been completed, insert the RF08AS into the rear lane No. 14.

When there is no interference, this position becomes the correct position.

 Tips on leveling work
