Part 1 Basic Operation Chapter 2 Production

2-15

Setting the warming-up conditions

(1) Which part to be warmed up

Select which part to be warmed up, “Axis”, “Conveyor”, “Conveyor stopper” or “MTC”(Initial

selection: Axis).

You can select “Conveyor stopper” when “Conveyor” has been selected.

(2) Selecting the condition for finishing warming up

Click one of the buttons: <Time (min)>, <Count> and <Temperature> to select the condition

for finishing warming up: warming-up time, number of times the machine has to warm up or

temperature (Initial selection: Time (min)).

(3) Setting the mode

Enter the time the machine finishes warming up, the number of times it has to warm up, or the

temperature at which it finishes warming up in the edit box.

The range of available values is as follows (Initial value: “0”).

Time (min) : 0 to 9999 (minutes)

* When you enter “0,” the machine will not stop warming up until you forcibly stop it.

Count : 1 to 999999 (times)

Temperature : 10 to 60 (°C)

* The system recommended 25°C (the temperature that guarantees placement accuracy),

and set it as the initial temperature. However, as the environments around the machine

changes, the ranges of temperatures change based on temperatures inside the

machine.

Temp. Inside Machine

Initial Temperature

Settable Temp. Range

Lower than 10

C - 60

10°C - below 25°C 25°C Temp. inside + 1 - 60°C

C - below 30

Temp. inside + 1

Temp. inside + 1 - 60

30°C - 60°C Temp. inside + 1°C Temp. inside + 1 - 60°C

C or higher

Temp. inside + 1

Temp. inside + 1 - + 2

This temperature setting mode allows the machine to continue warming up until the

temperature inside the machine reaches the temperature you set.

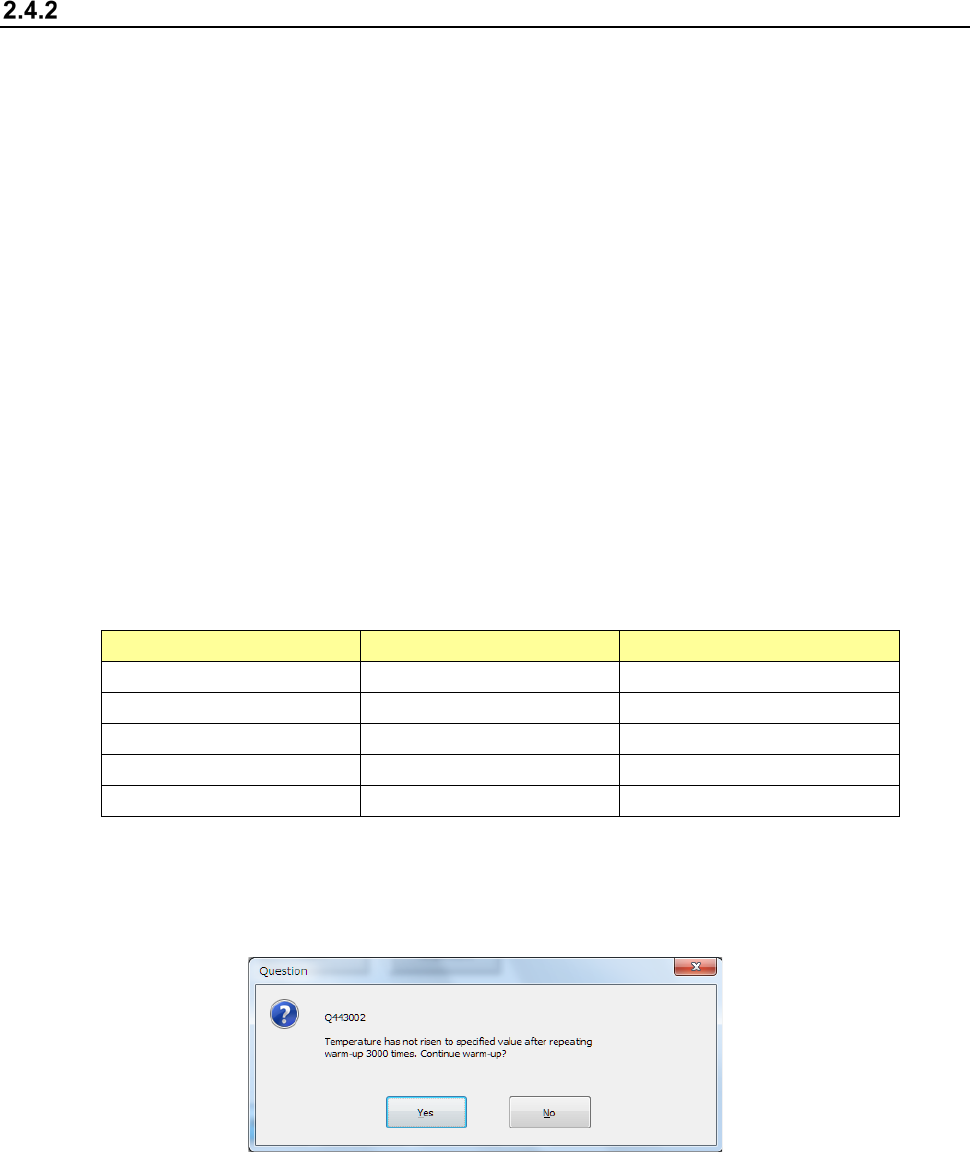

If the temperature does not reach the set temperature, the machine displays the "Question"

screen that asks you whether to continue warming up every time it performs a warming-up

operation 3000 times.

(4) Setting the speed (Your user level should be a service man level or higher.)

Specify the axis moving speed here.

Select the speed among “Middle,” “High,” “High 2.” (Initial setting: “High 2”).

(5) Setting the sequence (Your user level should be a service man level or higher.)

Select the warming-up sequence: “Diagonal,” “Square” and “Simulated production” (Initial

setting: “Diagonal”).

(6) Setting of Speed change (Your user level should be “Service Engineer” or higher.)

Select whether to change the speed during warming-up.

This setting item allows the machine to warm up at the certain speed only at the present.

Part 1 Basic Operation Chapter 2 Production

2-16

Descriptions of a warming-up operation

The following dialog box appears on the screen while the machine is warming up.

The part you have selected warms up as described in the table below.

Part to be warmed up

Description

Axis

Drives the X-, Y-, Z-, θ- and ZA-axis, turns on/off the vacuum and the blower, and

opens/closes the ATC slide plates.

Note that when the system opens/closes the ATC slide plate ten times, it finishes warming

up the ATC slide plate..

Conveyor

Drives the IN motor, the OUT motor and the support table motor.

MTC

Drives the shuttle.

The following information appears on the screen.

Information Description

Settings you made Displays the time or number of times you have set on the initial screen.

Time (min)/

Count/Temperature

Displays how long the machine has operated, how many times the machine performed a

warming-up operation, or the current temperature.

Total information

Displays the total time and number of times the machine has warmed up.

You can clear this information on the “Machine management information” screen.

When you press the <STOP> switch or click the <STOP> button displayed on the screen, the

screen for confirming your stop operation appears.

When you click the <Yes (Y)> button:

When you click the <Yes (Y)> button on the confirmation screen, the machine stops the

warming-up operation, and displays the initial screen again. If you start warming up the

machine again, you can continue the previous warming-up operation without clearing the

time or number of times the machine has warmed up. However, if you change the

warming-up condition, Time to Count or vice versa, the total warming-up time or number of

times the machine has warmed up is cleared.

When you click the <No (N)> button:

When you click the <No (N)> button, the machine restarts warming up.

Total information

This indicates the total

time/number of times the

machine has warmed up.

Time/count/tempe

rature you have

set on the initial

screen

Current

time/count/temperature

of warming-up

operations

Part 1 Basic Operation Chapter 2 Production

2-17

2.5 Pass-Thru Mode

Use this command when you transport a PWB through this machine as a PWB transportation buffer

without producing any PWB.

When you select the “Product” button command from the menu of the main screen, then the

[Pass-Thru Mode] command, the following screen appears to move back all axes if the return to

origin operation was performed already.

After all axes are moved back to the safe areas, the “Information” dialog box that asks you whether

to change the conveyor width.
