Part 2 Detailed Description of Each Function Chapter 8 Machine Setup
8-61

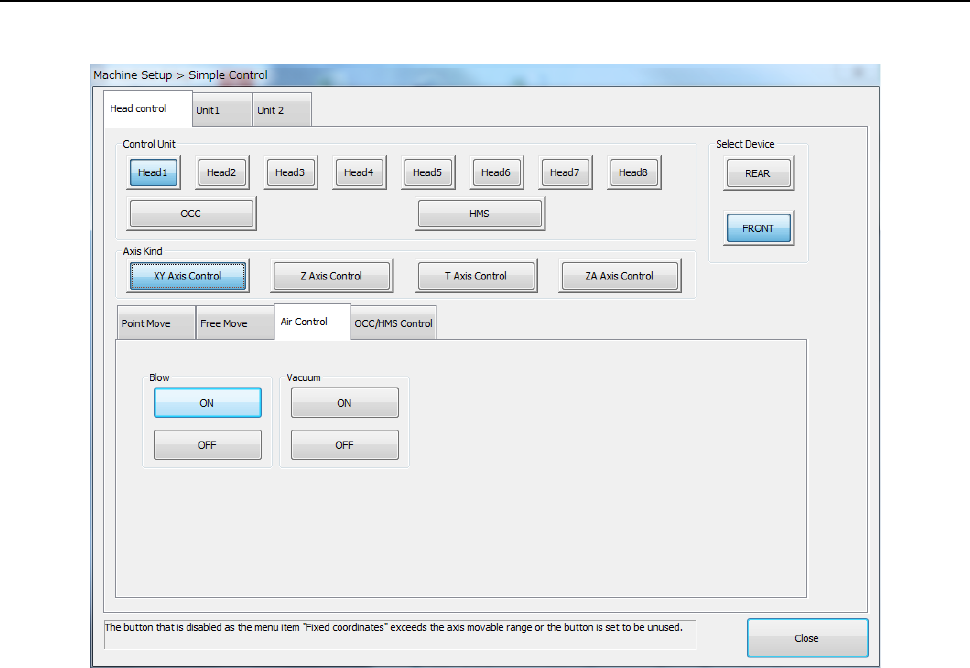

8.4.4 Air control
When [Control unit] is specified as the head, vacuum control can be exerted.
When you press <ON> or <OFF> button of “Blow” or “Vacuum,” blow control or vacuum control
can be exerted for the head selected by control unit.
Blow control and vacuum control cannot be turned on simultaneously by the same head.
Part 2 Detailed Description of Each Function Chapter 8 Machine Setup
8-62

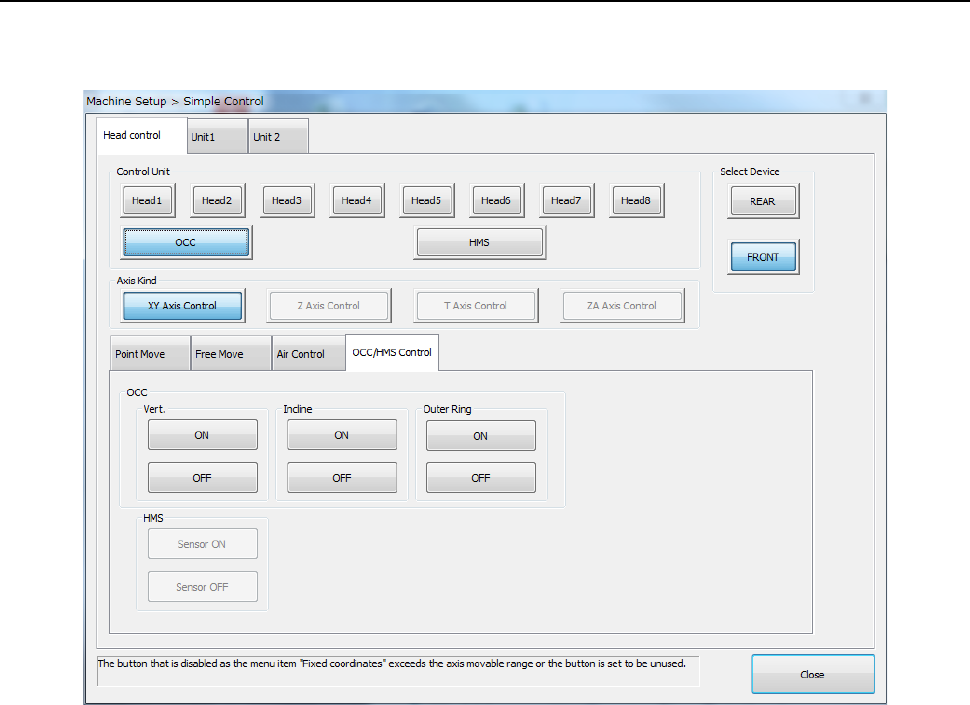

8.4.5 OCC/HMS control
When [Control units] is specified as the OCC, OCC control can be exerted. When [Control unit]
is specified as the HMS, HMS sensor control can be exerted.
When you press the <ON> or <OFF> button of “Vert.”, “Indn.” and “Outer Ring.”, lighting control
can be exerted for the OCC. The outer ring lighting can be selected only when the setting is valid.
When you select <Sensor ON> or <Sensor OFF> of “HMS,” sensor control can be exerted for the
HMS.
Part 2 Detailed Description of Each Function Chapter 8 Machine Setup
8-63

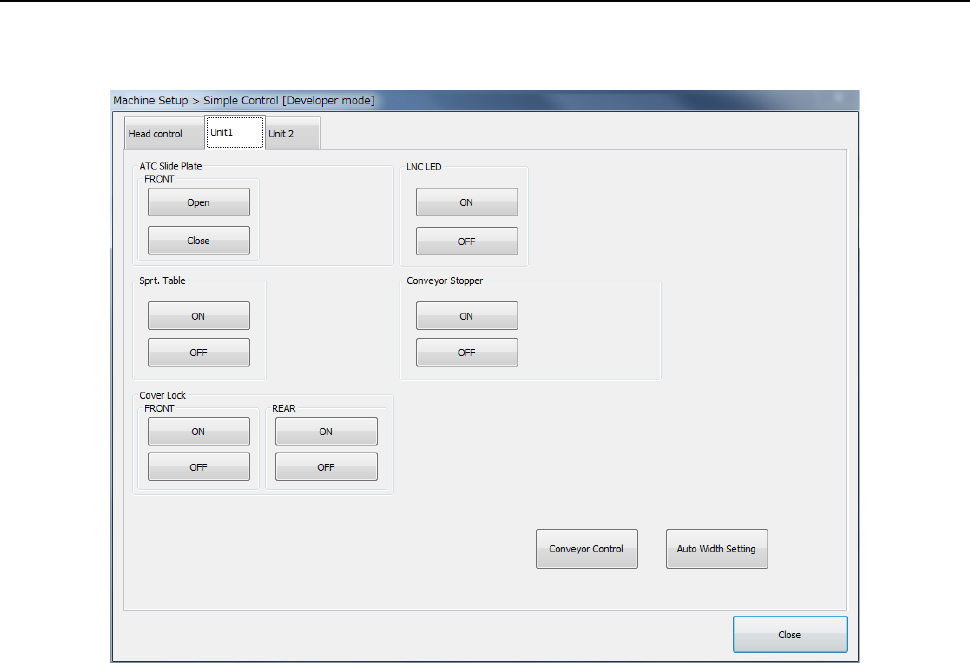

8.4.6 Unit 1
The “Unit 1” tab allows you to control the ATC slide plate, the support table, the cover lock, the
LNC LED, the conveyor stopper, the conveyor and/or the AWC.
(1) ATC slide plate
You can exert slide plate “OPEN/CLOSE” control of each ATC.
(2) Support table
You can exert “UP/DOWN” control of the support table.
(3) Cover lock
You can perform “Cover lock ON/OFF” of the front/rear.
(4) LNC LED
You can set the LNC LED to “ON” or “OF F.”
(5) Conveyor Stopper
You can set the conveyor stopper to “ON” or “OF F.”
(6) Conveyor control
When you press the <Auto Width Setting> button, the PWB wide adjustment screen appears.
When you select <Conveyor Control> button, the PWB conveyor main screen appears.
