Part 1 Basic Operation Chapter 4 Creating a Production Program
4-51
(2) Packaging style
The displayed items vary depending on your selection in the “Packaging style” field of the “Basic
setting” tab sheet.
1) How to enter data when you select “Tap e ” as the “Packaging style”
① Tape width
A list of selectable feed units is displayed in the list box. Select a feed unit in this list.
② Feed pitch
Select the tape feeding pitch.
For tapes with a size of 12 mm to 88 mm, set the pitch
of the component data corresponding to the feed pitch
setting on the tape feeder side.
Example) When 12mm-tape is fed 8 mm,
8 mm (4*2) Pitch = 8 mm (feed amount 4 mm x
twice)
* For the setting of the tape feeder side, refer to the "Instruction
Manual" of the corresponding tape feeder.
③ Component Supply angle
Enter the angle of a component package
on the tape feeder with respect to the
component placement angle, 0 degrees.
When you select “Other,” enter the angle
in the edit field. (0° to 359.9875°)
See the table below for the JUKI’s
definition of the component supply angle.
Tape
Pitch
Angle definition 0°
Supply angle 180°
Feed direction
Part 1 Basic Operation Chapter 4 Creating a Production Program
4-52

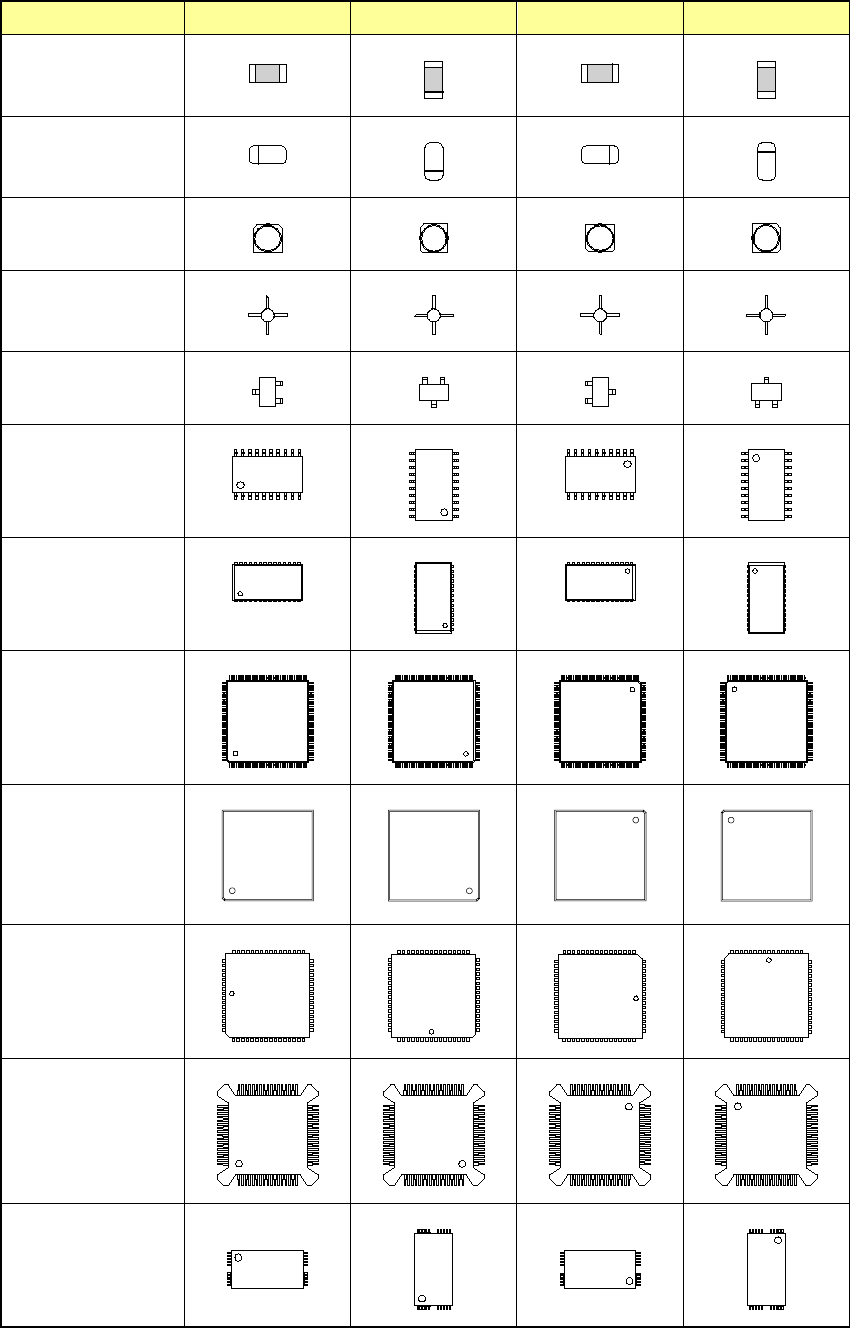

* JUKI's definition of the component supply angle
Table shows the definition of the component supply angle 0° and other angles.
For components without polarity, you do not have to distinguish 0° from 180° or 90° from 270°.
Type of components 0° 90° 180° 270°
Square chip
Melf
Aluminum
electrolytic capacitor
GaAsFET
SOT
SOP
HSOP
SOJ
QFP
QFN
QFJ(PLCC)
BQFP(PQFP)
TSOP-1
Part 1 Basic Operation Chapter 4 Creating a Production Program
4-53
Type of components 0° 90° 180° 270°
TSOP-2
BGA
FBGA
Network resistor
Trimmer
One-direction lead
connector
Two-direction lead
connector
Z-lead connector
J-lead socket
Gull-wing socket
Socket with bumper
