Part 1 Basic Operation Chapter 4 Creating a Production Program
4-159
4.5.1.7 Mark database
This command copies the mark data registered in the mark database in data as a BOC mark or an
area mark.
Screen
Function
PWB data
Basic setting screen This command cannot be used.
Dimension setup screen
Only when the cursors is located in the “BOC
mark name” cell or the ( ) cell, you can select this
command from the menu.
Circuit Layout screen
This command cannot be used.
Ex. Bad Mark screen
PWB Conveyor screen
Placement
data
List screen This command cannot be used.
Area Mark screen
Only when the cursor is located in the “Mark
Name” cell or the “TI” cell, you can select this
command from the menu.
Area Bad Mark screen This command cannot be used.
Component
data
List screen
This command cannot be used.
Form screen
Pick data
List screen
Form screen
Part 1 Basic Operation Chapter 4 Creating a Production Program
4-160
4.5.1.8 Matrix copy
Screen
Function
PWB data
Basic setting screen
This command cannot be used.
Dimension setup screen
Circuit Layout screen
Ex. Bad Mark screen
PWB Conveyor screen
Placement data
List screen
See the descriptions below for how
to use this command.
Area Mark screen
This command cannot be used.
Area Bad Mark screen
Component data
List screen
This command cannot be used.
Form screen
Pick data
List screen
See the descriptions below for how
to use this command.
Form screen This command cannot be used.

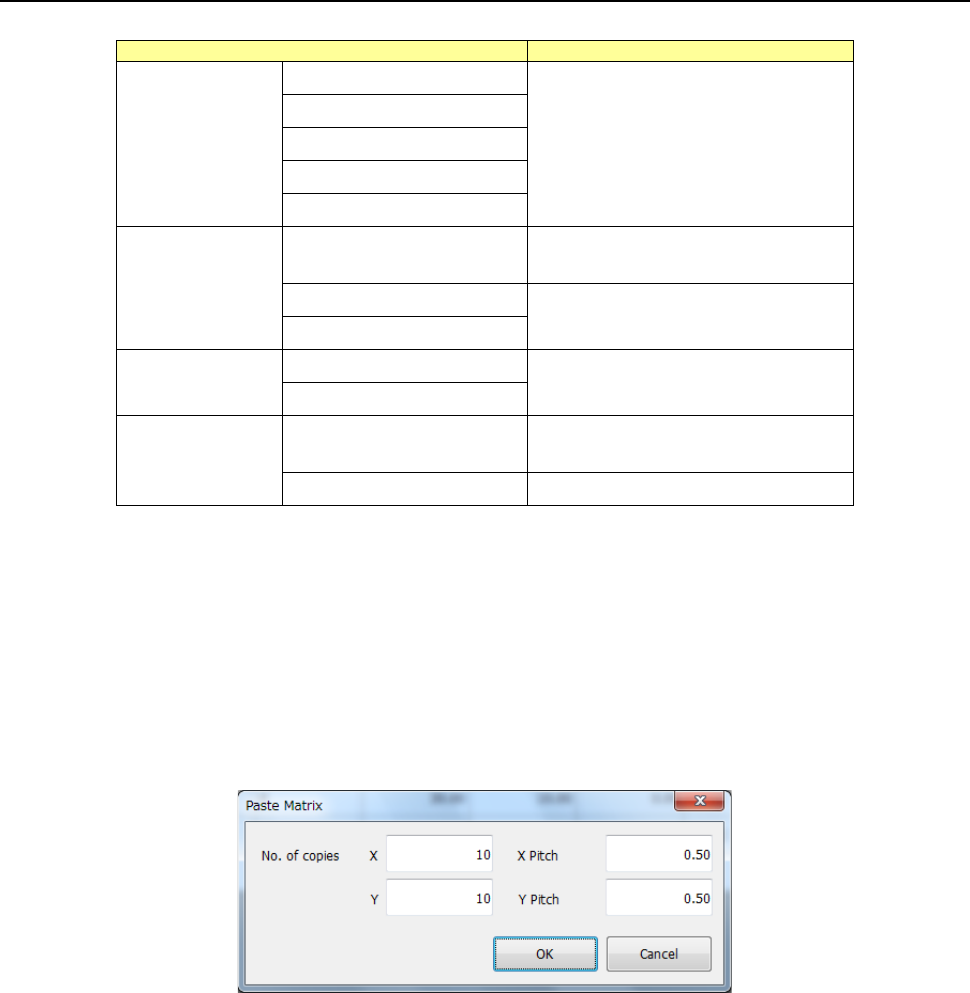

As for the Placement data, this command inserts data that has been loaded into the memory buffer
with the [Cut] or [Copy] command before the cursor. When you specify the “X” and “Y” fields of
“No. of copies” and the “X Pitch” and “Y Pitch” fields, the system allows you to copy the data in a
matrix with adding or subtracting the entered values to/from the component placement position in
the X direction and that in the Y direction.
After you execute the [Matrix Copy] command for the Placement data, all the placement IDs are
changed to “#.”
If the memory buffer is empty, you cannot select this command for the Placement data.
After you execute the [Matrix Copy] command for the Placement data, all the placement IDs are
changed to “#.”
No. of copies X
: Specify the number of times the system will copy data in the X
direction.
“1” is set by default.
No. of copies Y
: Specify the number of times the system will copy data in the Y direction.
“1” is set by default.
X Pitch
: Specify the amount to increment or decrement a value of the component
placement position in the X direction. “0.000” is set by default.
Y Pitch
: Specify the amount to increment or decrement a value of the component
placement position in the Y direction. “0.000” is set by default.
OK
: This button pastes the data
Cancel
: This button cancels the paste operation.
Part 1 Basic Operation Chapter 4 Creating a Production Program
4-161
An example of the result of execution of the [Matrix copy] command for the Placement data is
shown below.
Placement
ID
X
Y
Angle
Component
name
R1
5.000
10.000
45.000
1608-A
R2
10.000
10.000
0.000
1608-A
No. of copies X
3
X Pitch:
0.500
No. of copies Y
1
Y Pitch:
1.000
R1
5.000
10.000
45.000
1608-A
R1
10.000
10.000
0.000
1608-A
#
5.500
10.000
45.000
1608-A
- The copied block is inserted above
the specified line.
- All placement IDs are set to “#.”
#
10.500
10.000
0.000
1608-A
#
6.000
10.000
45.000
1608-A
#
11.000
10.000
0.000
1608-A
- The input focus is positioned in the
first “Placement ID” column of the
inserted block.
#
6.500
10.000
45.000
1608-A
#
11.500
10.000
0.000
1608-A
#
5.000
11.000
45.000
1608-A
#
10.000
11.000
0.000
1608-A
#
5.500
11.000
45.000
1608-A
#
10.500
11.000
0.000
1608-A
#
6.000
11.000
45.000
1608-A
#
11.000
11.000
0.000
1608-A
#
6.500
11.000
45.000
1608-A
#
11.500
11.000
0.000
1608-A

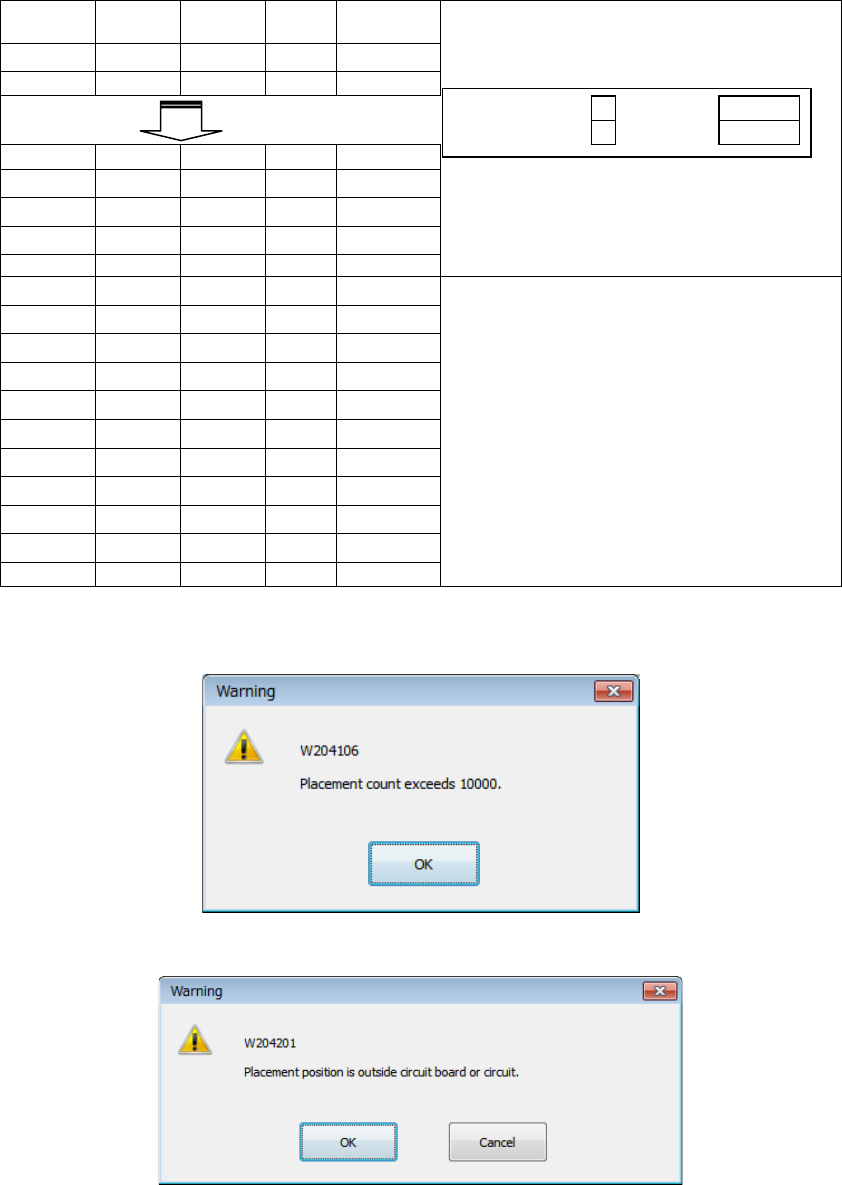

If the number of data records exceeds the maximum number, the message like one shown below
appears on the screen, and the copy operation is aborted. In this case, no data is copied.
If the placement position is outside the board or the circuit, the message like one shown below
appears on the screen.
OK: The system continues copying data. A mark indicating that the placement
position is outside the regulated range is appended to the copied data.
Cancel: The system aborts the copy operation.
