Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-7
12.1.2 EF series Electric tape feeder
When you attach an attachment on the RF/EF bank, you can use an EF series electric feeder with
the machine.
12.1.2.1 RF_ETF_ATTACHMENT (40169273)
When you use an EF series electric feeder, attach it on the RF/EF bank.

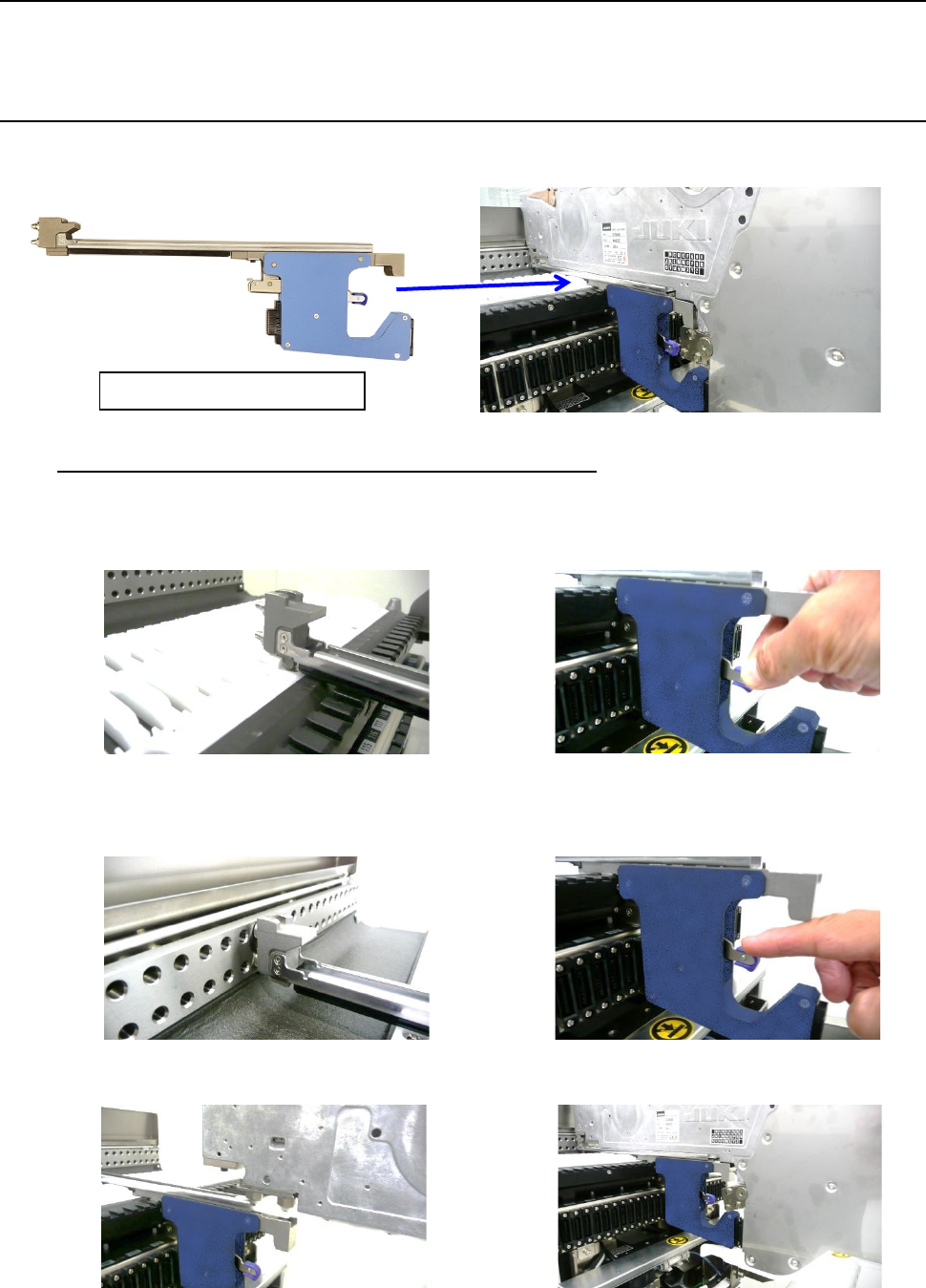

How to Use the Attachment for EF Series Electric Feeder
(1) Insert the slide rail of the attachment into the lane of the RF/EF bank. Then, raise the lock
release lever to open the clamp.
(2) Insert the guide pin to the fixing plate until it hits the end. Then lower the lock release lever to
clamp it. (Now, the attachment has been mounted.)
(3) Insert the slide rail of the EF series electric feeder into the lane of the attachment.
RF_ETF_ATTACHMENT
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-8
(4) After inserting the connector, pull down the lock release lever to clamp it.
(5) Now, the EF series electric feeder has been successfully mounted.
* NEVER insert to or remove from the bank
with the attachment mounted on the
electric feeder. Doing so may deform or
damage the attachment.
