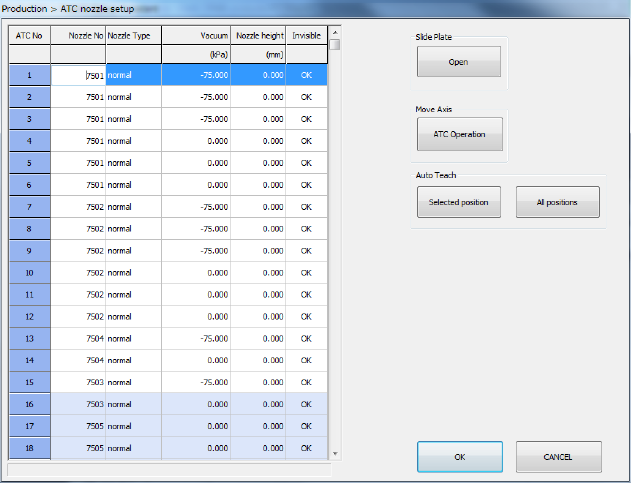

When you press the <Assign nozzles> button, you can assign nozzles to the ATC.

See Section 8.3.2.3 “ATC nozzle setup” of the Chapter 8 “Machine Setup” for details.

Part 1 Basic Operation Chapter 2 Production

2-104

When you press the <Rearrangement of nozzles> button, the system rearranges nozzles on the

ATC optimally.

When you press the <Exec> button on the screen for rearranging nozzles, the system actually

rearranges nozzles.

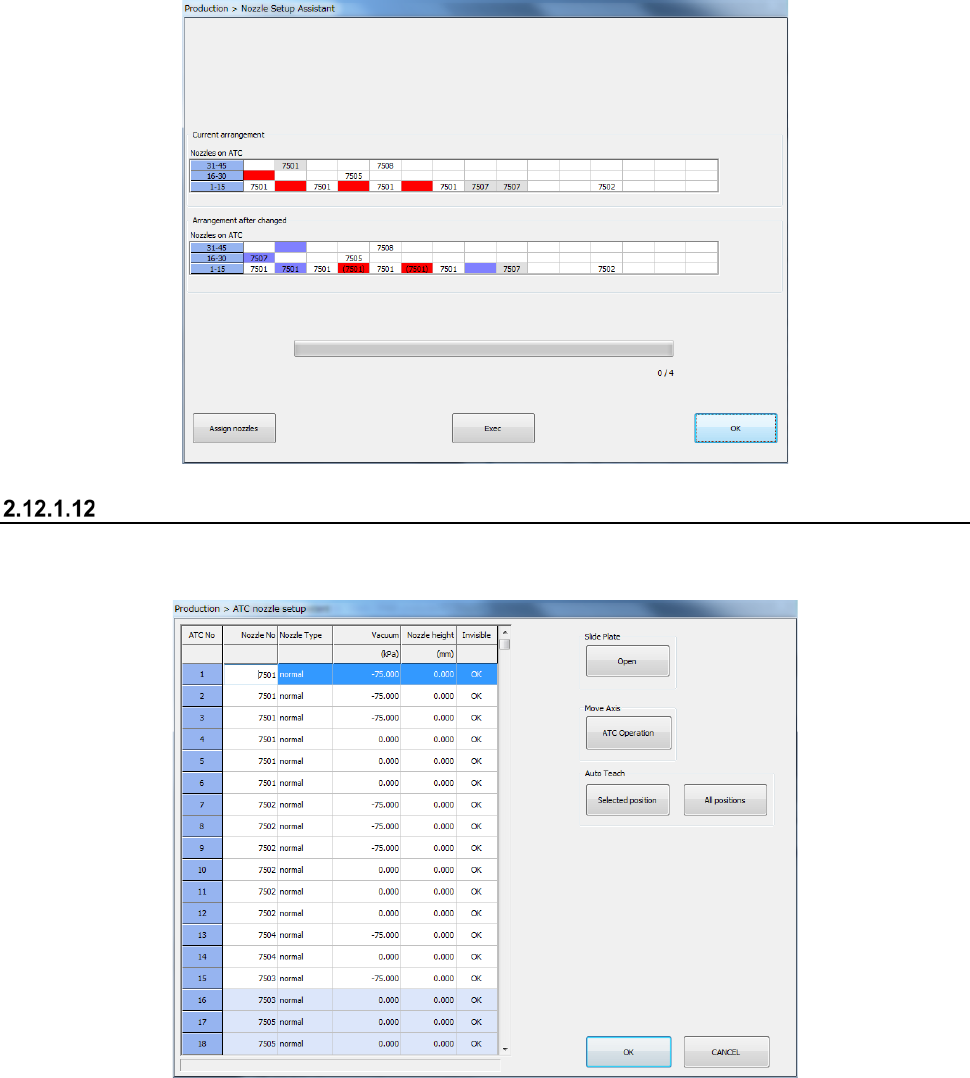

The current nozzle assignment on the ATC, “Current arrangement” is displayed on the upper section

of the screen. If any nozzle not specified in the optimized nozzle layout is assigned, it is displayed

in red.

The reassignment of nozzles, “Arrangement after change” is displayed on the lower section of the

screen. The position at which nozzles are replaced is displayed in blue. The position at which

nozzles cannot be automatically replaced as instructed according to the optimal layout is displayed

in red. You have to replace the nozzle manually.

ATC Setup

This button assigns a nozzle to the ATC.

See Section 8.3.2.3 “ATC nozzle setup” of Chapter 8 “Machine Setup” for details.

Part 1 Basic Operation Chapter 2 Production

2-105

Program Check

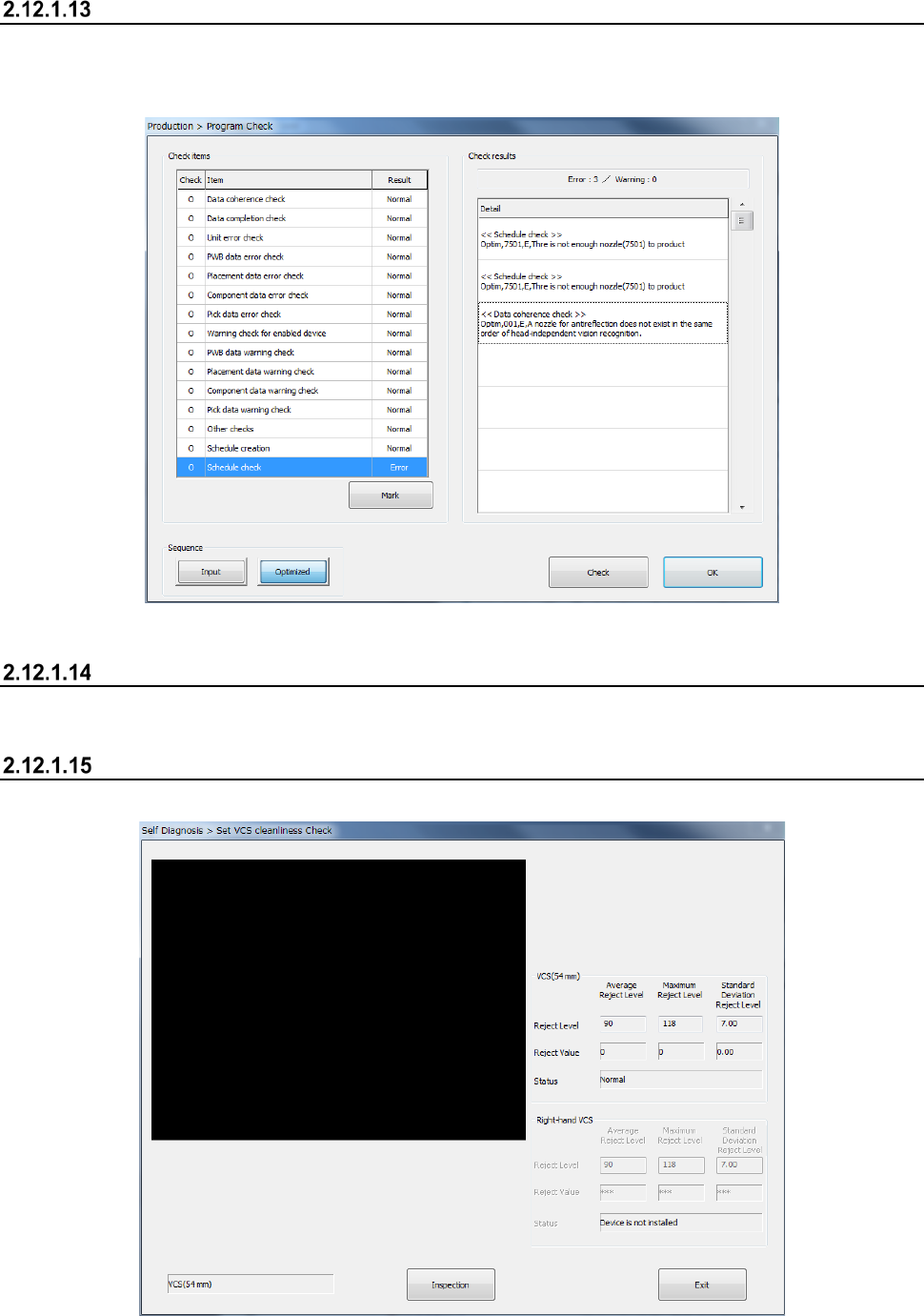

This button allows you to check a production program before starting PWB production.

You can display the list of check items for a production program, and the system displays the check

results.

See Section 2.11.3 “Program Check” for details.

Laser check

See Section 2.12.5 “Laser height check” for details.

VCS Dirty Check

This button displays the results of the check of a standard VCS and a high-resolution VCS.
