Part 2 Detailed Description of Each Function Chapter 9 Manual Control
9-34

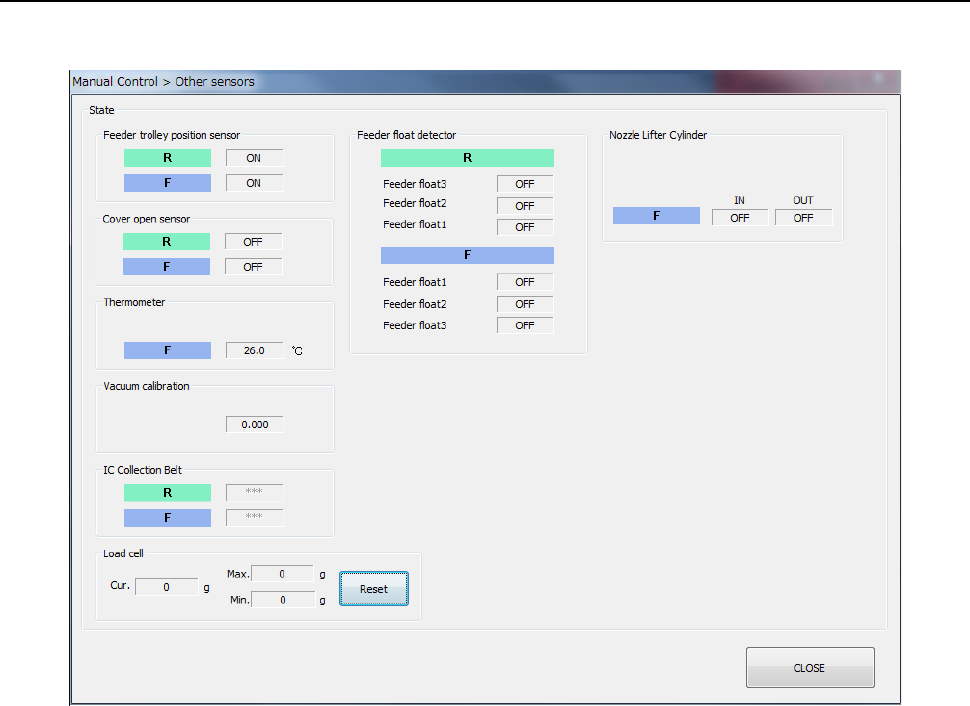

9.6.4 Other sensors
When you select [Other] – [Other sensor] in the menu, the other sensor dialog appears.
The status of each sensor is displayed.
This has no effect on the setting in “Device enable” in Machine setup.
(The status of a sensor that is not checked off (not used) is also displayed.)
In the sensor status display, the status is read and displayed continuously.
Part 2 Detailed Description of Each Function Chapter 9 Manual Control
9-35
9.6.5 Driver status
When you select [Other] – [Driver status] in the menu, the driver status dialog appears.
(1) Current position information
The coordinates of the current position of each axis and its rotation angle are displayed.
This has no effect on the setting in “Device enable” in Machine setup. The status of units
that are not checked off (not used) is also displayed.
(2) Sensor information
When you press the <Sensor information> button, the sensor information is displayed. Its
details will be described later.
(3) Axis feedback position information
When you press the <Axis feedback position information> button, the axis feedback position
information is displayed. Its details will be described later.
Part 2 Detailed Description of Each Function Chapter 9 Manual Control
9-36
9.6.5.1 Sensor information
When you press the <Sensor information> button in the driver status dialog, the sensor
information dialog appears.
The status of the origin nearness sensor and limit sensor are displayed as ON/OFF, and the
thermistor temperature information is displayed numerically.
9.6.5.2 Axis feedback position information
When you press the <Axis feedback position information> button in the driver status dialog, the
axis fed back position information appears.
