Part 1 Basic Operat ion Chapter3 D aily maintenance 3- 18 Where to clean Nozzle outer Cleaning frequency : Every month How to clean Clearing of the nozzle outer T ool to be used: Cotton swab and waste cloth Recommended s…

Part 1 Basic Operation Chapter3 Daily maintenance

3-17

Lubrication item

Applying of oil to a nozzle after cleaning it

Lubrication frequency:

Every week

Tools to be used:

Air gun, cotton swab and waste cloth

Oil to be used:

New Defrex No.1

If you leave the nozzle without doing anything to it after cleaning it, the inside of the nozzle may be

rusted.

Follow the procedure below to apply oil to the nozzle slider.

1) After cleaning the nozzle, use an air gun or similar device to blow off alcohol remaining in the nozzle.

2) Apply one drop of oil to the section shaded in the figure below (section protruded from the nozzle

inner when you push the nozzle slider in the direction indicated with the arrow mark ) with a

cotton swab whose half part is dampened with oil.

3) Move the nozzle slider up and down twenty to thirty times to spread oil over the entire nozzle slider.

4) Wipe off excessive oil around the nozzle with clean waste cloth.

5) After applying oil to the nozzle slider, return the nozzle to the ATC unit, and select the [Machine

setup] command and the [Nozzle setup] command in this order.

(Refer to Section 8.3.2.3 “Nozzle setup”)

CAUTION

1) Do not use oil any other than New Defrex Oil No. 1 to a nozzle.

If you use oil whose viscosity is high such as grease, the nozzle

slider cannot return to its original position normally.

2) Be sure to return the nozzle to the ATC unit instead of the head.

Nozzle slider

②

Move up and down the

nozzle slider 20 to 30 times.

①

Apply oil to this part with a

cotton swab dampened with oil.

Part to which oil

should be applied

③

Wipe off excessive oil

with a waste cloth.

Part 1 Basic Operation Chapter3 Daily maintenance

3-18

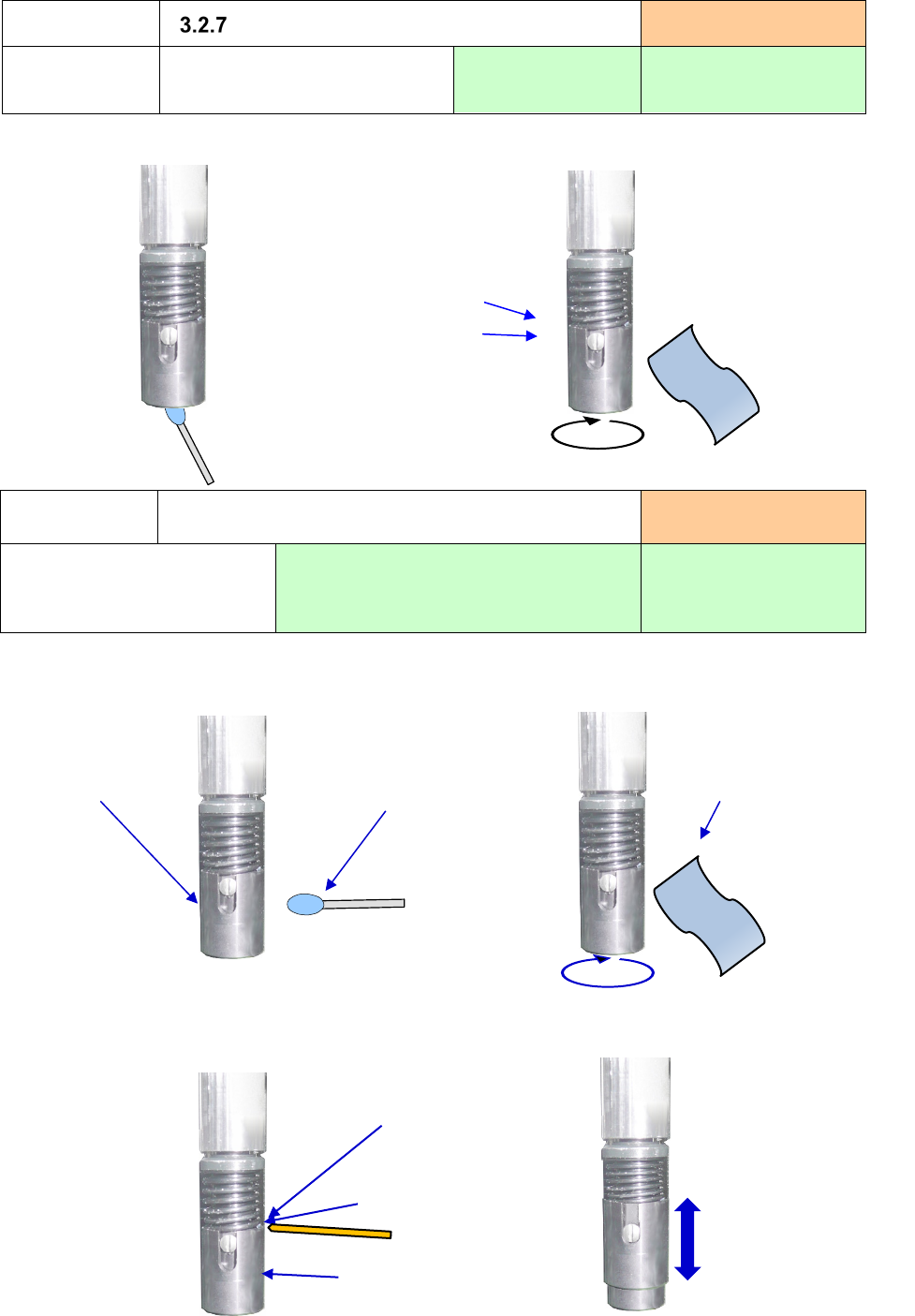

Where to clean

Nozzle outer

Cleaning frequency:

Every month

How to clean

Clearing of the nozzle outer

Tool to be used:

Cotton swab and

waste cloth

Recommended solution:

IPA

1) Clean the inside of the nozzle outer with a cotton swab dampened with alcohol.

2) Clean the surface and the spring section of the nozzle outer with alcohol.

Lubrication item

Applying oil or grease to the nozzle outer after

cleaning it

Lubrication frequency:

Every mouth

Tools to be used:

Cotton swab and waste cloth

Oil to be used: New

Defrex No. 1

Grease to be used: 6459

Grease N

1) Apply oil to the circumference of the nozzle outer and the area between the nozzle outer and the

outer spring holder with a cotton swab. After applying oil, blow the excessive oil with an air gun or

similar device, and then wipe it off with waste cloth.

2) Use a tip of toothpick or similar tool to apply rice-gain sized of 6459 Grease N around the section

specified in the figure below (gap between the nozzle outer and the outer spring holder so that the

nozzle outer can slide well).

3) Move the nozzle outer up and down twenty to thirty times to spread grease over the nozzle outer.

Spring

Wiping rag

Cotton swab

Nozzle outer

Apply oil with a cotton swab

lightly dampened with oil.

Wipe off the excessive

oil with waste cloth.

Nozzle outer

20 to 30 times

Outer SP holder

Area to be greased

Toothpick

Nozzle outer

Part 1 Basic Operation Chapter3 Daily maintenance

3-19

Where to clean

ATC Unit

Cleaning frequency:

Every week

How to clean

Cleaning of dust and/or a foreign

substance from the ATC

Tool to be used:

Waste cloth
