Part 2 Detailed Description of Each Function Chapter 9 Manual Control

9-22

9.5 Feeder

9.5.1 Electric feeder control

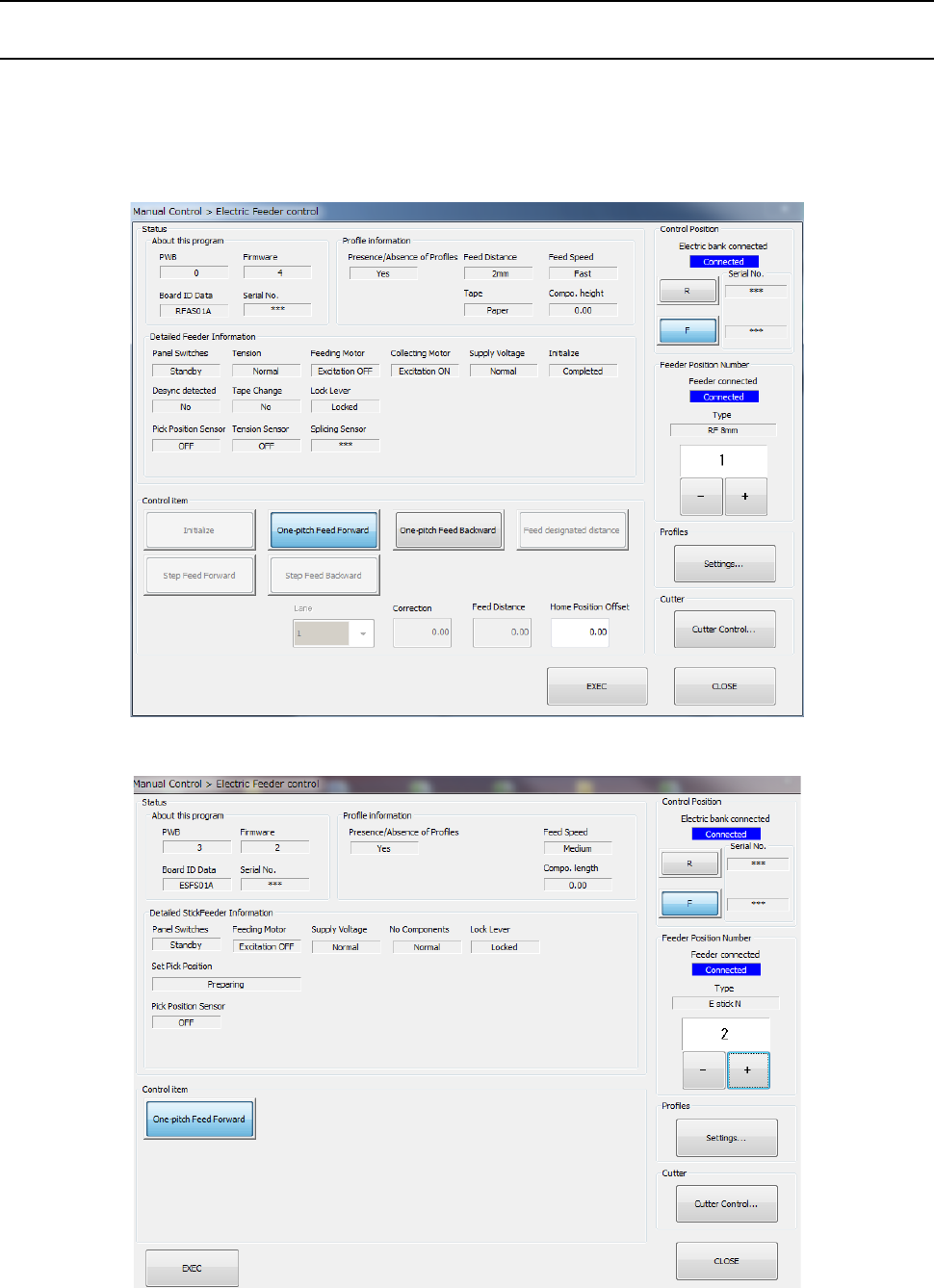

When you select [Feeder] – [Electric feeder control] in the menu, the electric feeder control dialog

is displayed. The status and control items vary a little depending on the device type to be

mounted.

Part 2 Detailed Description of Each Function Chapter 9 Manual Control

9-23

However, when “Electric bank connected” is “Not connected”, <Exec>, <Settings…> and

<Cutter Control…> cannot be operated.

Part 2 Detailed Description of Each Function Chapter 9 Manual Control

9-24

(1) Feeder position number selection

This operation is common regardless of the connected device type.

Select a feeder position No. of the electric feeder to be control by the <+> button and <->

button. When you press he <+> button, the connected electric feeder can be selected by a

larger feeder position number than the currently displayed feeder position number. When

you press the <-> button, the connected electric feeder can be selected by a smaller feeder

position number than the currently selected feeder position number. If any selectable

electric feeder is not found, the feeder position number remains without change.

However, when the “Feeder connected” status of the selected electric feeder is “Not

connected,” <Exec> and <Set> cannot be operated. (Except tape cut control)

In this case, connect the electric feeder to the displayed feeder position number or select a

feeder position number by the <+>/<-> button after connecting the electric feeder to any

optional feeder position number.

The device names that are displayed as types are shown below.

Feeder

Displayed device name

Electric feeder

E 8 mm single

E 12 mm

E 16 mm

E 24 mm

E 32 mm

E 44 mm

E 56 mm

Electric feeder (RF)

RF 4 mm

RF 8 mm

RF 12 mm

RF 16 mm

RF 24 mm

RF 32 mm

RF 44 mm

RF 56 mm

RF 72 mm

RF 88 mm
