Part 1 Basic Operation Chapter 2 Production
2-80

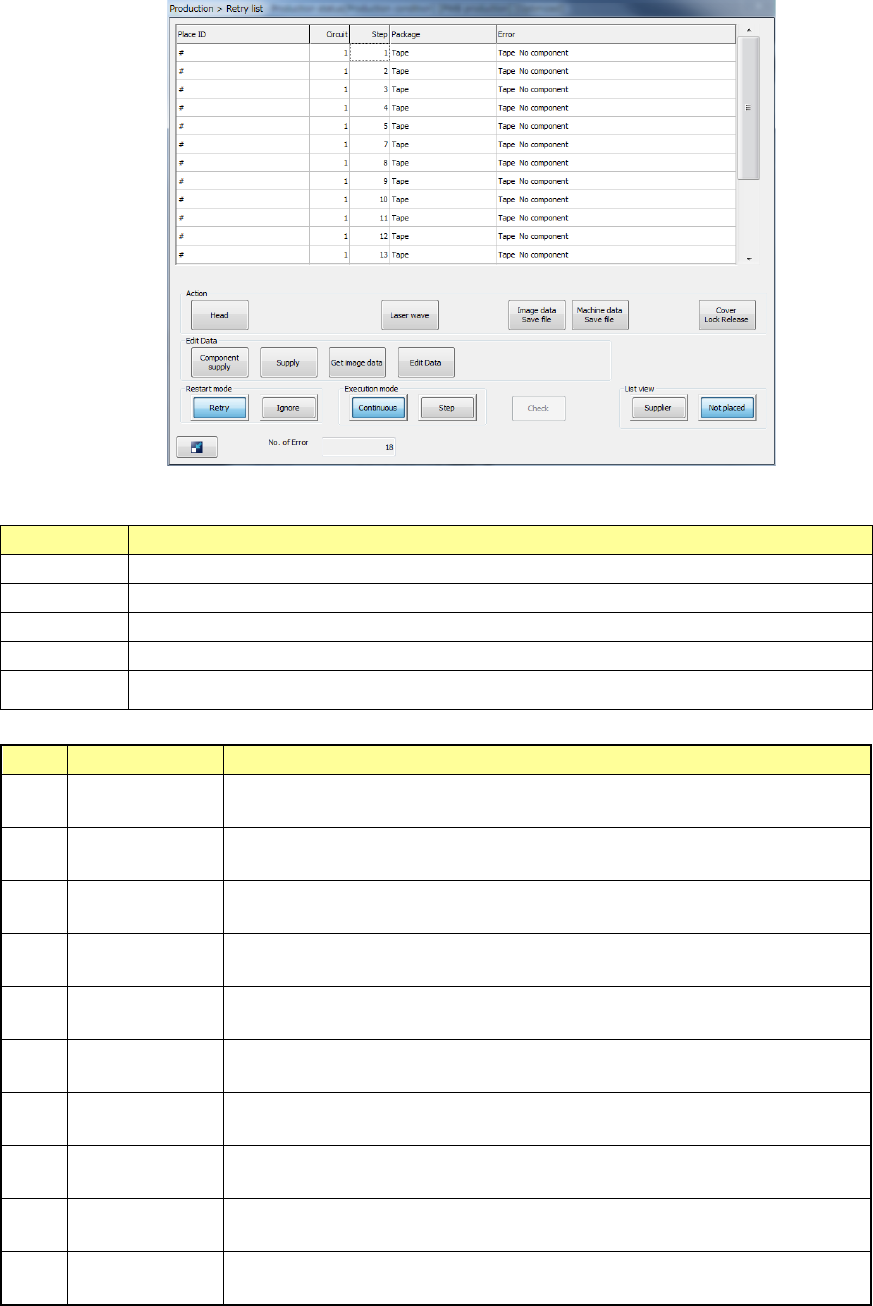

(2) Retry list (not placed)
The displayed menu items except for the listed data itself are the same as those of the “Retry
list (Supplier).”
1) Retry list (Unplaced)
The errors are displayed in occurrence order.
Menu item
Description
Place ID Displays the component ID of a component that the machine failed to place on a board.
Circuit
Displays the number of a circuit that the machine failed to place on a board.
Step Displays the placement step in which the machine failed to place a component.
Package
Displays the package of a component that the machine failed to place on a board.
Error Displays the cause of a component placement failure.
2) Error (Type)
No.
Error
Cause
1 Mark recognition
Since the machine failed to recognize an area mark, it was not able to place the
component on the board.
2 VCS Recog.
Since the machine failed to recognize a component with a VCS, it was not able
to place the component on the board.
3 LA Recog.
Since the machine failed to recognize a component with laser, it was not able to
place the component on the board.
4 Component
The machine failed to place a component on the board due to the component
itself such as its irregular shape.
5 Feeder
The machine failed to place a component on the board because components
run out on a tape, a stick or a holder.
6 MTC
The machine was not able to place a component on the board because
components run out on the MTC supply unit or the unit malfunctioned.
7 MTS
The machine was not able to place a component on the board because
components run out on the MTS supply unit or the unit malfunctioned.
8 DTS
The machine was not able to place a component on the board because
components run out on the DTS supply unit or the unit malfunctioned.
9 Setting
The machine failed to place a component on the board due to wrong setting
such as setting of the Setup application.
10
Copla
(Coplanarity)
The machine was not able to place the component on the board due to a failure
during coplanarity check.
Part 1 Basic Operation Chapter 2 Production
2-81
3) Error (Detail – Mark Recog./VCS Recog.)
No.
Displayed error message
1
lead bend
2
lead length error
3
lead pitch error
4
detected lead count too short
5
detected lead count too much
6
No lead
7
detected lead count 1-3
8
cannot detect Component frame
9
fine pitch lead Recognized Error
10
detected lead count too short(Exp Lead connector)
11
detected lead count too much(Exp Lead connector)
12
ballRecog Err(ball cannot det(Up side)(lower 1/3))
13
ballRecog Err(ball cannot det(bottom side)(lower 1/3))
14
ballRecog Err(ball cannot det(Left side)(lower 1/3))
15
ballRecog Err(ball cannot det(Right side)(lower 1/3))
16
ballRecog Err(Up/down side incln is over 3 deg)
17
ballRecog Err(left/right side incln is over 3 deg)
18
ballRecog Err(Up/down side distance is over half p)
19
ballRecog Err(left/right side distance is over half p)
20
All ballRecog Err(ball pitch error)
21
All ballRecog Err(ball cannot det by darkness)
22
All ballRecog Err(ball Up/down side incln is over 3 deg)
23
All ballRecog Err(ball left/right side incln is over 3 deg)
24
All ballRecog Err(ball Up/down side dist is over half p)
25
All ballRecog Err(ball left/right side dist is over half p)
26
All ballRecog Err(ball cannot create insp area)
27
All ballRecog Err(ball transformation insp error)
28
All ballRecog Err(Diameter-insp error)
29
All ballRecog Err(brightness error)
30
All ballRecog Err(existence error)
31
Outline Recog Err(No component)
32
Outline Recog Err(Component size error)
33
Outline Recog Err(not exist pattern within det window)
34
Outline Recog Err(Incln Over 1 deg from Area mark)
35
Outline Recog Err(over mark distance +-0.5mm)
36
Outline Recog Err(OFCComponent Recognized Error)
37
Multi-Lead Recog Err(lead bend)
38
Multi-Lead Recog Err(lead length error)
39
Multi-Lead Recog Err(lead pitch error)
40
Multi-Lead Recog Err(detected lead count too short)
41
Multi-Lead Recog Err(detected lead count too much)
42
Multi-Lead Recog Err(No lead)
43
Multi-Lead Recog Err(detected lead count 1-3)
44
Multi-Lead Recog Err(cannot positioning)
45
Multi-Lead Recog Err(cannot detect leads)
46
Random ballRecog Err(ball pitch error)
47
Random ballRecog Err(ball transformation insp err)
48
Random ballRecog Err(ball Diameter-insp error)
49
Random ballRecog Err(ball exist-insp(Diameter) err)
50
Random ballRecog Err(ball exist-insp(brightness) err)
51
Random ballRecog Err(ball exist-insp(brt samples is short))
Part 1 Basic Operation Chapter 2 Production
2-82
No.
Displayed error message
52
ball Insp Err(ball detect error)
53
ball Insp Err(ball matrix size Error)
54
ball Insp Err(ball count Error)
55
ball Insp Err(ball diameter Error)
56
ball Insp Err(brightness base get error)
57
ball Insp Err(brightness characteristic get err)
58
Outline Measurement Err(Component incln is too big)
59
Outline Measurement Err(Component size is too big)
60
Outline Measurement Err(Component size is toll small)
61
Outline Measurement Err(No component)
62
Terminal component Err(Cannot detect a lead (Up side)).
63
Terminal component Err(Cannot detect a lead (Bottom side)).
64
Terminal component Err(Cannot detect a lead (Left side)).
65
Terminal component Err(Cannot detect a lead (Right side)).
66
Terminal component Err(Wrong lead width (Up side))
67
Terminal component Err(Wrong lead width (Bottom side))
68
Terminal component Err(Wrong lead width (Left side))
69
Terminal component Err(Wrong lead width (Right side))
70
Terminal component Err(Component detection error)
71
Terminal component Err(Wrong direction)
72
Terminal component Err(Component size is wrong).
73
All head vision recognize Err(Component touches the window frame).
74
Other Recognized Error
4) Error (Detail – LA Recog.)
No.
Displayed error message
1
The left edge window is blocked.
2
The right edge window is blocked.
3
Both edge of window is blocked.
4
An error was caused with communication with the LNC120.
5
Failed to establish communication with the LNC120.Check to see if the LNC120 is connected to
the machine correctly.
6
Laser error: The laser always detects a component. The nozzle may be too long, or there may be
a scratch on the laser glass.
7
Detected no component even when Z is moved down.
8
Laser error: Moving the axes generates an error during laser measurement.
9
An error was generated during communication with the laser sensor, but the communication has
been recovered.
10
An error was generated during communication with the laser sensor, and the system failed to
recover the communication. Reboot the machine.
11
The shadow was undetectable during measurement.
12
An invalid parameter was specified for a command.
13
Invalid data was detected.
14
Failed to complete laser recognition.
15
Other causes abended measurement.
16
The theta encoder signal is not correctly input to LNC120.check if connector.
17
An error of an abnormal number of packets was detected in data received from the laser unit.
18
An abnormal command error was detected in data received from the laser unit
19
An abnormal address error was detected in data received from the laser unit
20
An error of an abnormal number of data records was detected in data received from the laser unit.
21
A time-out error occurred when the machine tried to establish communication with the laser unit.
22
An abnormal address error was detected in data received from the laser unit
23
A time-out error occurred when the machine sent data to the laser unit.
