Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-15

2) Assembling the exhaust duct

3) Remove REGULATION_BAR_RS (M4 x 8 4 pcs)

TR8SR Assemble attached items M4×8

Reversed 180 degrees and

installed.

Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-16

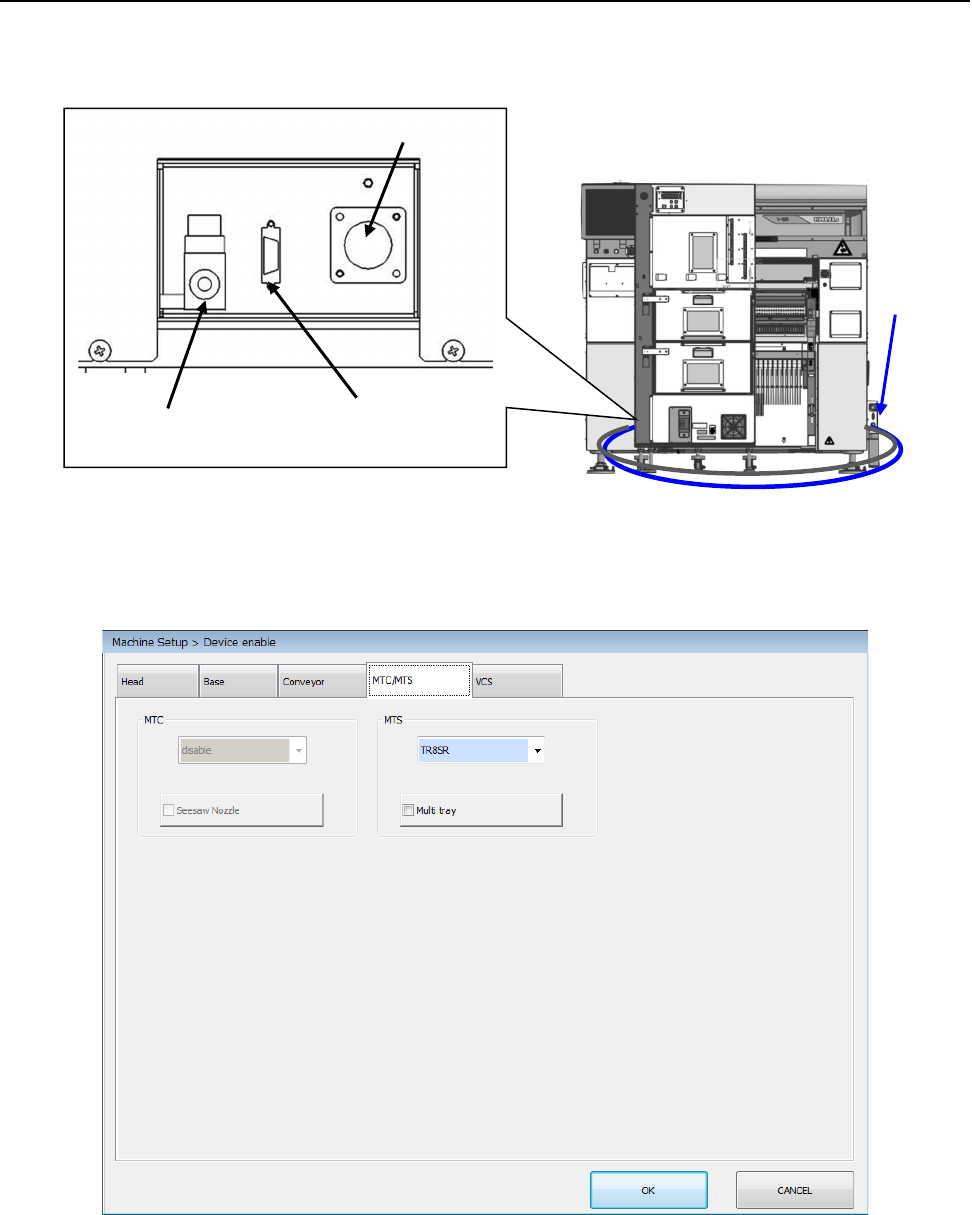

12.3.2 Setting RS-1/1R (When a TR8SR is selected)

Connect the power cable, communication cable, and air tube to the machine, and then turn ON the

circuit breaker of the TR8SR to supply the power to the mounter.

In this phase, perform the work without inserting the TR8SR into the machine main unit.

In the status where administrator or higher authority is enabled without performing the origin return,

select “TR8SR” in the “Machine Setup > Device enable” window. Save this setting and turn OFF the

power once.

Cable

Air tube

Power connector

Communication

connector

Air tube

Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-17

12.3.3 Matrix tray server setup (When a TR8SR is selected)

12.3.3.1 Setting up the TR8SR (RS-1/1R)

1) Indication of the installation height

2) Rubber stopper abutment.

32mm

RS-1 rear feeder bank

TR8SR body

RS-1/1R rear feeder bank
