3.2 Cleaning
Where to clean
XY axis direct drive unit
Cleaning frequency:
Every month
How to clean
Removal of dust on the rail, the ball
screw, and of stained grease
Tools to be used:
Brush and
waste cloth
Grease to be used:
LM guide rail: 6459 Grease N
Ball screw: NSL Grease
1) Check to see if any dirt or dust is stuck to the rails of the X-axis unit and Y-axis units, and clean them
if any.
After wiping off the grease, apply new one to the rail.
X-axis direct drive unit
Y-axis direct drive unit
Part 1 Basic Operation Chapter3 Daily maintenance
3-12
Where to clean
Transport sensor
Cleaning frequency:
Every month
How to clean
Cleaning of the sensor window
Tools to be used:
Waste cloth
Recommended solution:
IPA

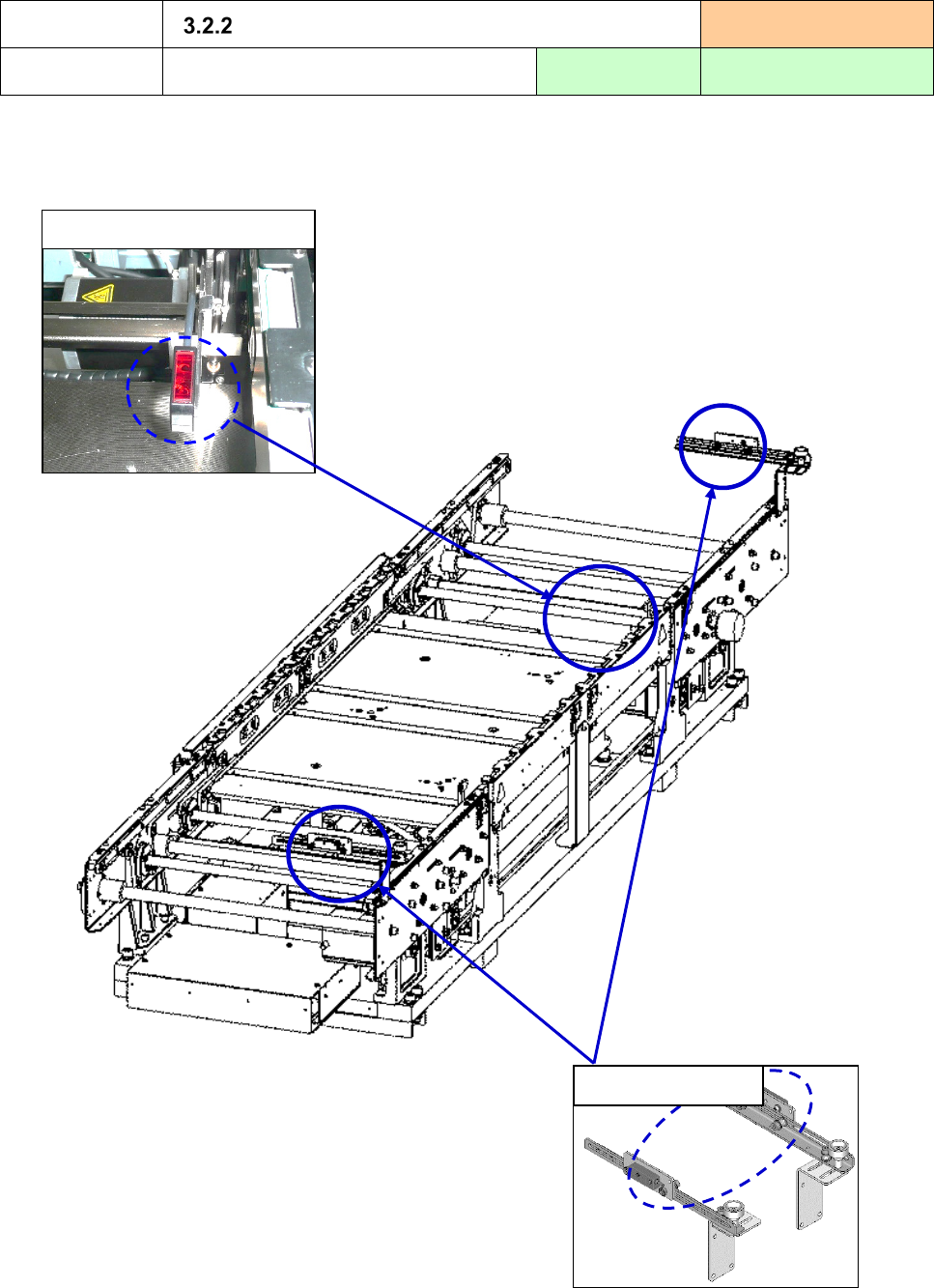

1) Remove dirt and dust stuck to the surface of the sensors shown below.
If the smudges cannot be removed completely, apply a little amount of alcohol (IPA) to the waste
cloth and clean the sensor window with it.
IN, OUT sensor
STOP sensor
Part 1 Basic Operation Chapter3 Daily maintenance
3-13
Where to clean
CAL block
Cleaning frequency:
Every week
How to clean
Cleaning of the CAL block
Tools to be used:
waste cloth
Recommended solution:
IPA
1) Check to see if there is any foreign substance such as dust on the upper side of the CAL block ①
or the first mark ②. If there is, clean it.
When the first mark is dirty, this may cause an incorrect MS parameter setting.
If you cannot remove any stain, apply a little amount of alcohol (IPA) to the waste cloth, and clean
the CAL block with it.
①
②
