Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-8

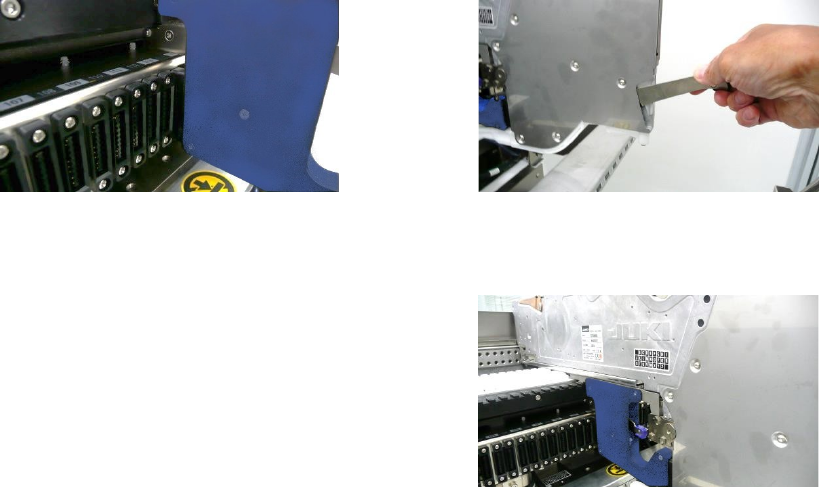

(4) After inserting the connector, pull down the lock release lever to clamp it.
(5) Now, the EF series electric feeder has been successfully mounted.
* NEVER insert to or remove from the bank
with the attachment mounted on the
electric feeder. Doing so may deform or
damage the attachment.
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-9
12.1.2.2 Procedure for setting a tape with the set-up stand EF for an EF series electric feeder.
(1) Connect the power plug of the tape reel stand to the AC outlet to supply power to the stand.
(2) Set the power switch to ON. Check to see if the lamp lights.
(3) Attach the ETF onto the ETF work base.
(4) Disconnect the connector for offline setup from the ETF power hook, and then connect it to
the connector of the ET F.
(5) Place the tape reel on the reel holder, and then set a tape onto the ETF.
(Refer to the “ETF Instruction Manual” for how to set a tape onto the ETF.)

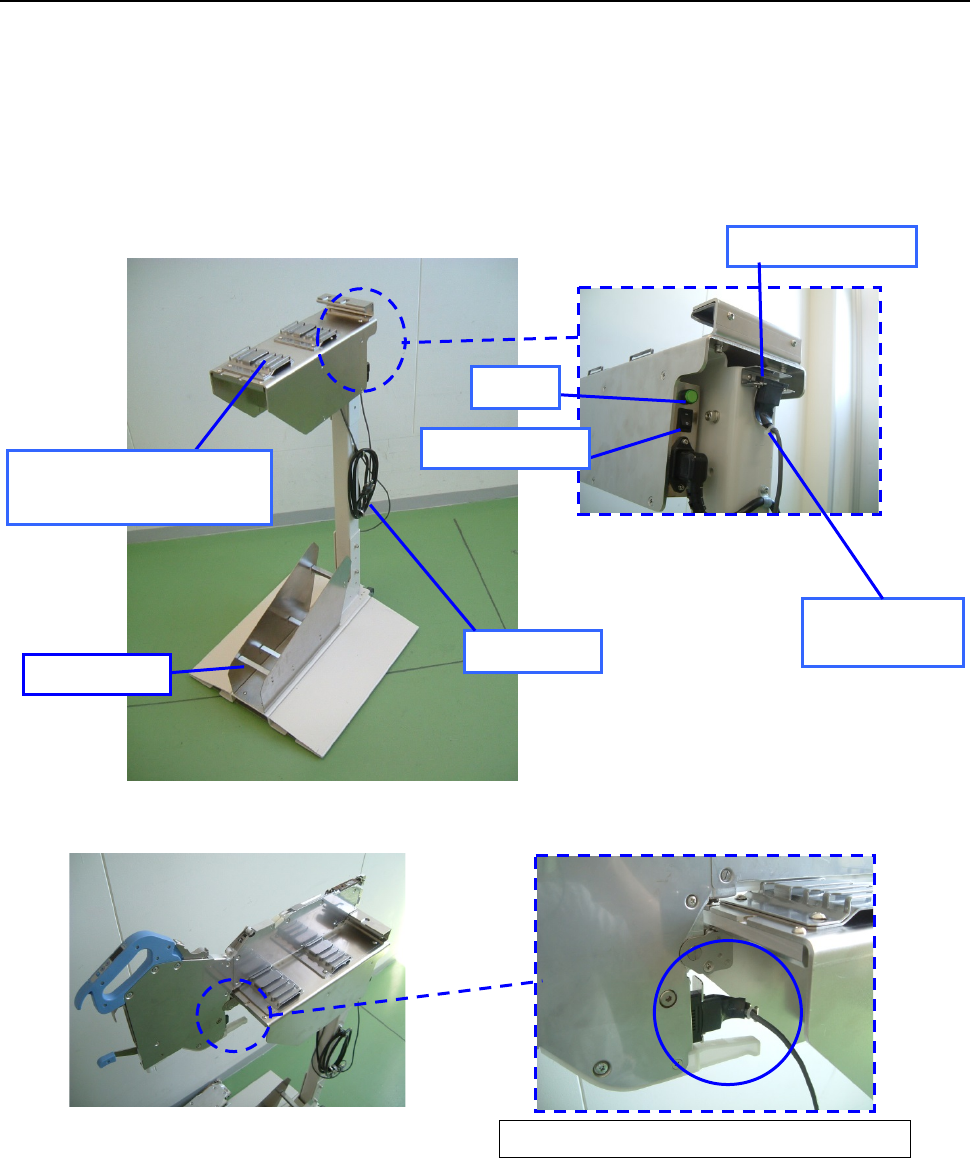

Enlarged view of the rear of the
ETF attachment section
Overall view of the tape reel stand for an ETF
Enlarged view of connector connection
Connector for
off-line setup
ETF power hook
Lamp
Power plug
Reel holder
ETF work base
(ETF attachment section)
Power switch
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-10

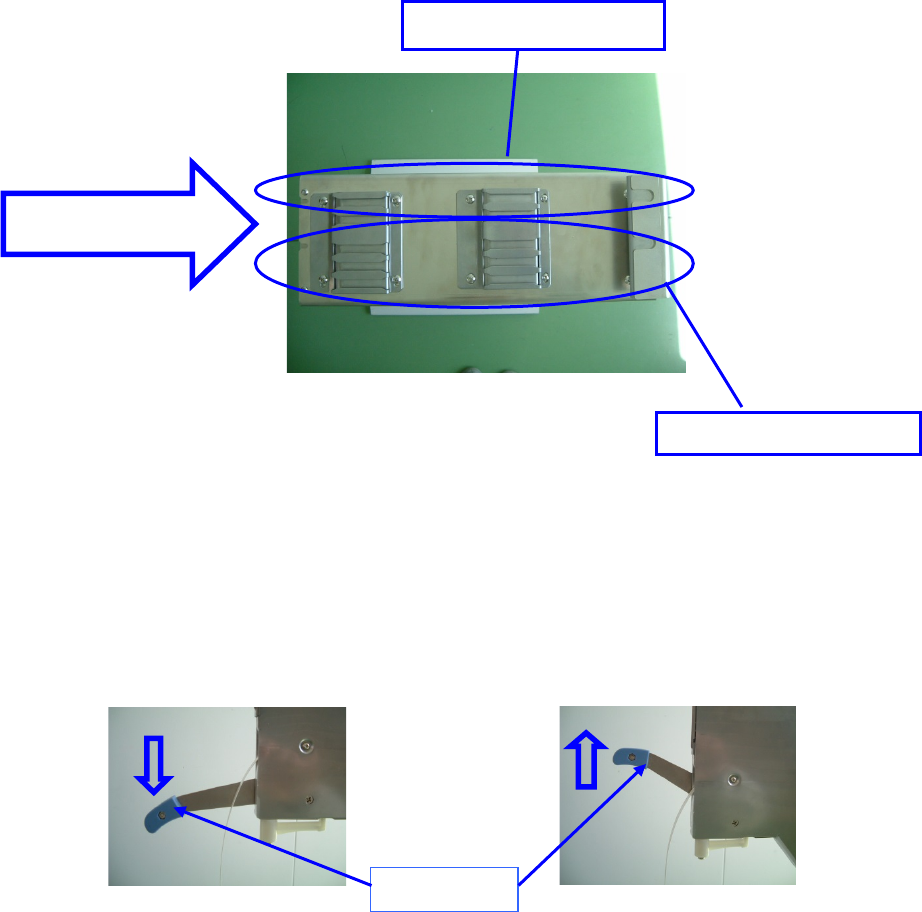

* Notes on attachment of an ETF onto the tape reel stand
(1) Two 8-mm to 24-mm type ETFs can be attached on the stand.
One 32-mm to 56-mm type ETF can be attached on the stand.
The following figure shows where to attach an ETF.
Top view of the tape reel stand for an ETF
(2) Checking to see if a clamp lever is locked
Make sure that the clamp lever is raised (when the lever is locked) to attach the ETF onto the
tape reel stand.
Make sure that the clamp lever is lowered (when the lever is unlocked) to detach the ETF
from the tape reel stand.
When the lever is released When the lever is locked
ETF attachment
direction
ETF 8mm to ETF 56mm
ETF 8mm to ETF 24mm
Clamp lever
