Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-23

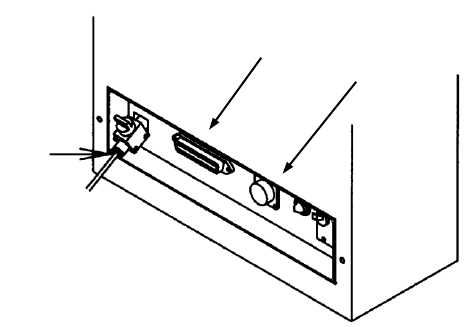

(6) Connect each cable and the air tube to the “Power connector for the MTS,” “Interface

connector” and the “φ6 tube take-up port for the MTS” provided on the interface panel on the

right side of the mounter.

(7) Turn on the power supply of the matrix tray server, and set the menu items "Device enable"

and " MTS position offset” invoked from the “Machine Setup” screen.

①

②

③

TR5SNX/5DNX

①

Power connector for the MTS

② Interface connector for the MTS

③ φ6 tube take-up port for the MTS

Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-24

12.3.7 Setting the MAIN board (TR5SNX/TR5DNX)

You have to set the DIP switch of the MAIN board of an MTS other than a TR8SR.

The DIP SW 6-2 is set to OFF at the factory.

If you use with an RS-1/1R a TR5SNX/TR5DNX that was used with another machine model, you

have to change the setting of this DIP SW 6-2 to ON after remodeling the MTS and upgrading the

MTS software.

Machine model an MTS is connected to

DIPSW6-2

RS-1/1R

Other than an RS-1/1R

OFF

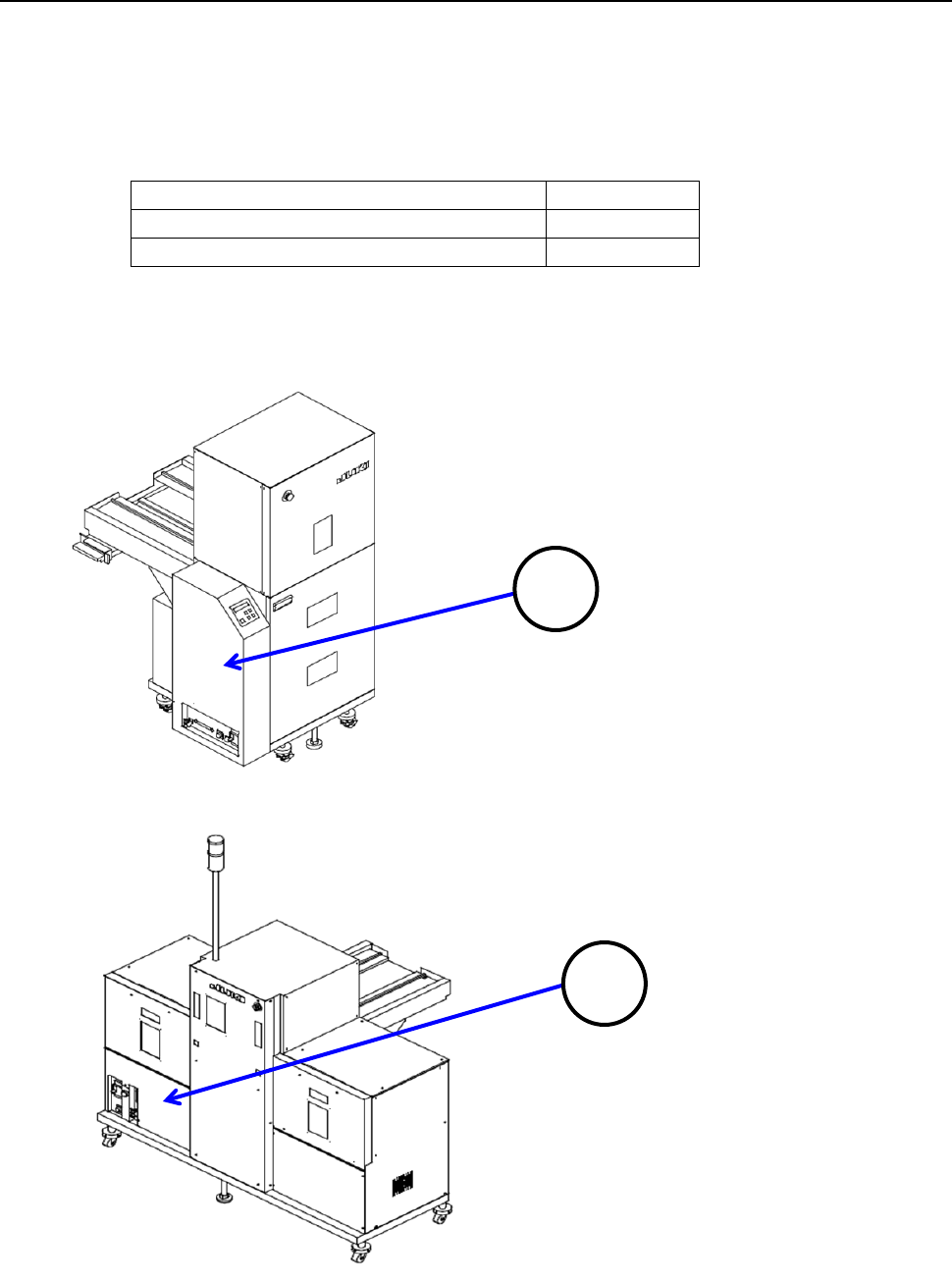

To check the MAIN board, remove the cover 1 in case of the TR5SNX or the cover 2 in case of the

TR5DNX.

Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-25

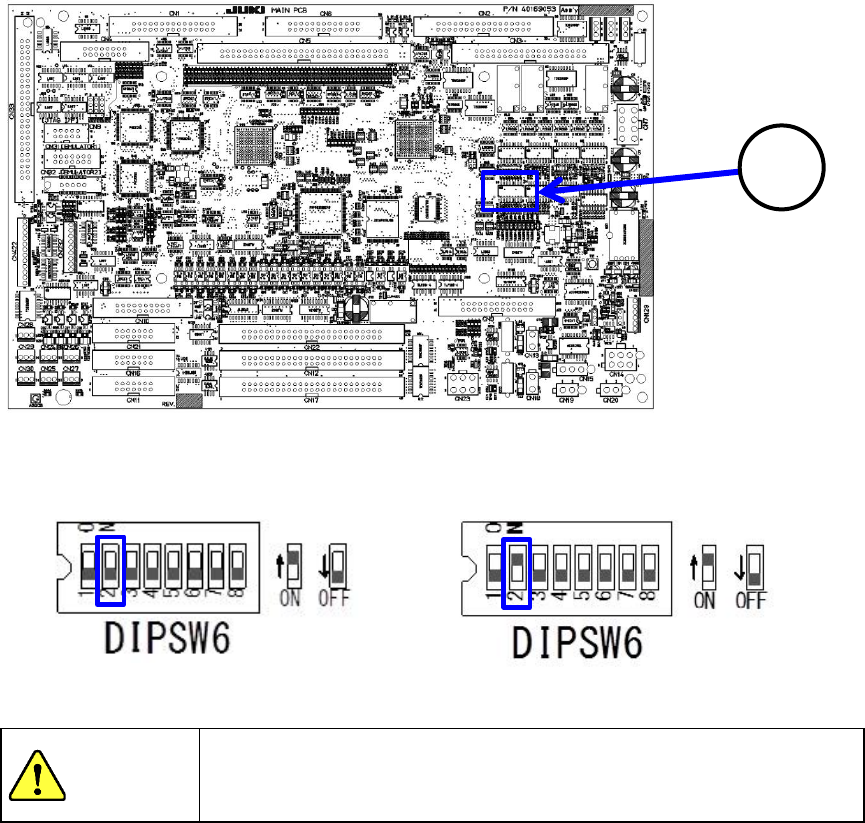

When you set the DIP SW 6-2 located at the position ③ of the MAIN board to ON, the

TR5SNX/TR5DNX that has been remodeled and whose software has been upgraded can be used

with the RS-1/1R. When you set the DIP SW 6-2 to OFF, the MTS can be connected to a machine

model other than an RS-1/1R with which the MTS can be used.

Machine model the MTS is connected to:

Other than an RS-1/1R

Machine model the MTS is connected to:

RS-1/1R

To avoid any accident caused by sudden activation of the machine,

turn off the power.

CAUTION
