Part 1 Basic Operation Chapter 4 Creating a Production Program

4-162

4.5.1.9 Production program copy

This function allows two or more matrix circuits to be defined within the same board.

Two or more matrix circuits are defined within the same board.

Two or more circuits are arranged, and the positions of the arranged circuits are corrected with

area marks, and then placed on a board.

Source PWB Destination PWB Result

Single-plane PWB Single-plane PWB Single-plane PWB

Multi-plane matrix PWB Single-plane PWB

Multi-plane non-matrix PWB Single-plane PWB

Multi-plane matrix

PWB

Single-plane PWB Single-plane PWB

Multi-plane matrix PWB Single-plane PWB or multi-plane matrix PWB

When the number of divisions is equal to the

pitch between the consecutive circuits, and

the offset theta is 0 or 180 degrees, the board

is copied as a multi-plane matrix PWB.

Multi-plane non-matrix PWB Single-plane PWB

Multi-plane

non-matrix PWB

Single-plane PWB Single-plane PWB

Multi-plane matrix PWB Single-plane PWB

Multi-plane non-matrix PWB Single-plane PWB

If there are two or more board configuration candidates to be arranged after copy, or if two or more

circuits are overlapped with one another after copy, the system asks you how circuits will be

arranged on the board.

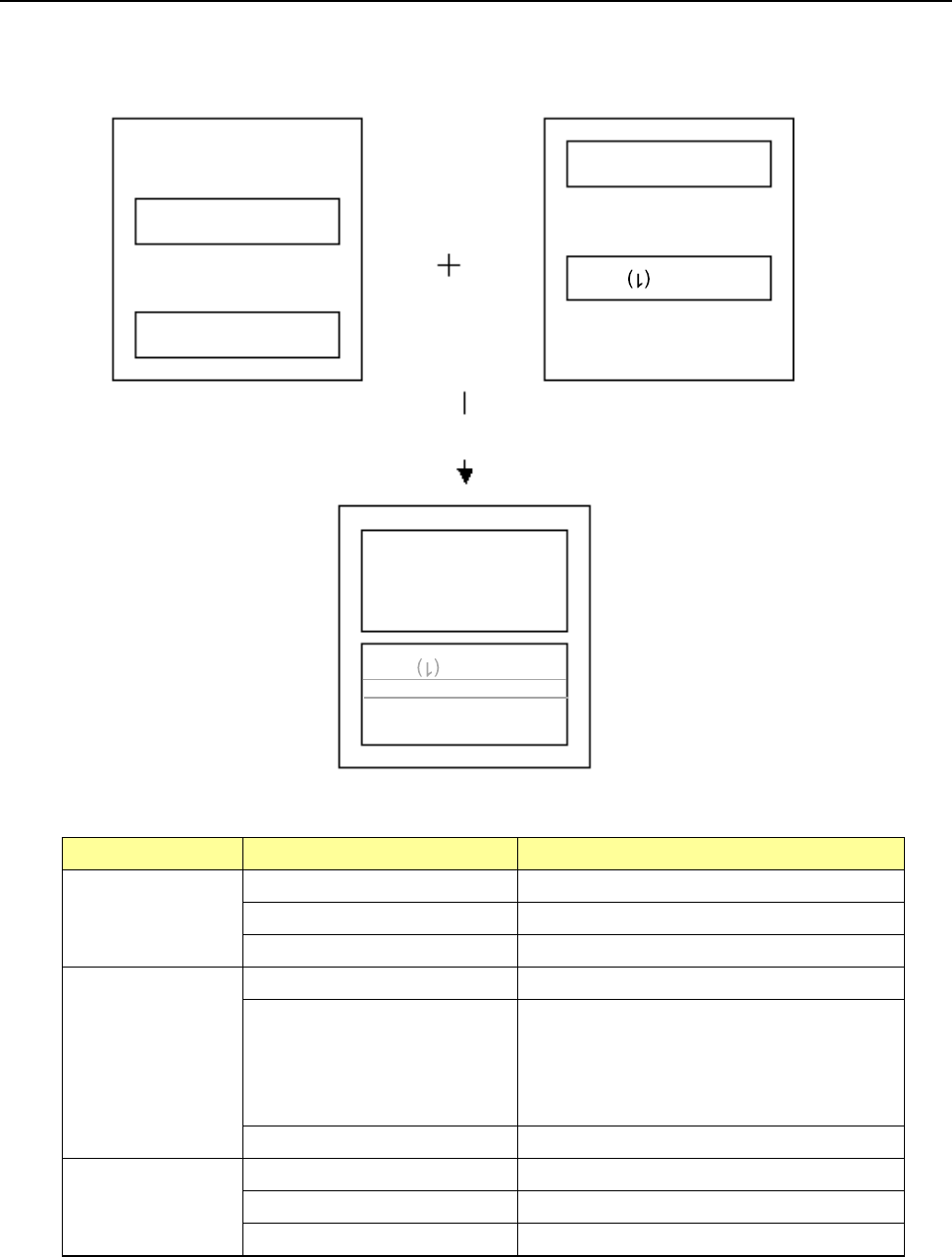

Source production program

Execution of the [Production program copy] command

Side A (2)

Side A (1)

Destination production program

Side B

(2)

Side B

Side A (1)

Reference circuit

Part 1 Basic Operation Chapter 4 Creating a Production Program

4-163

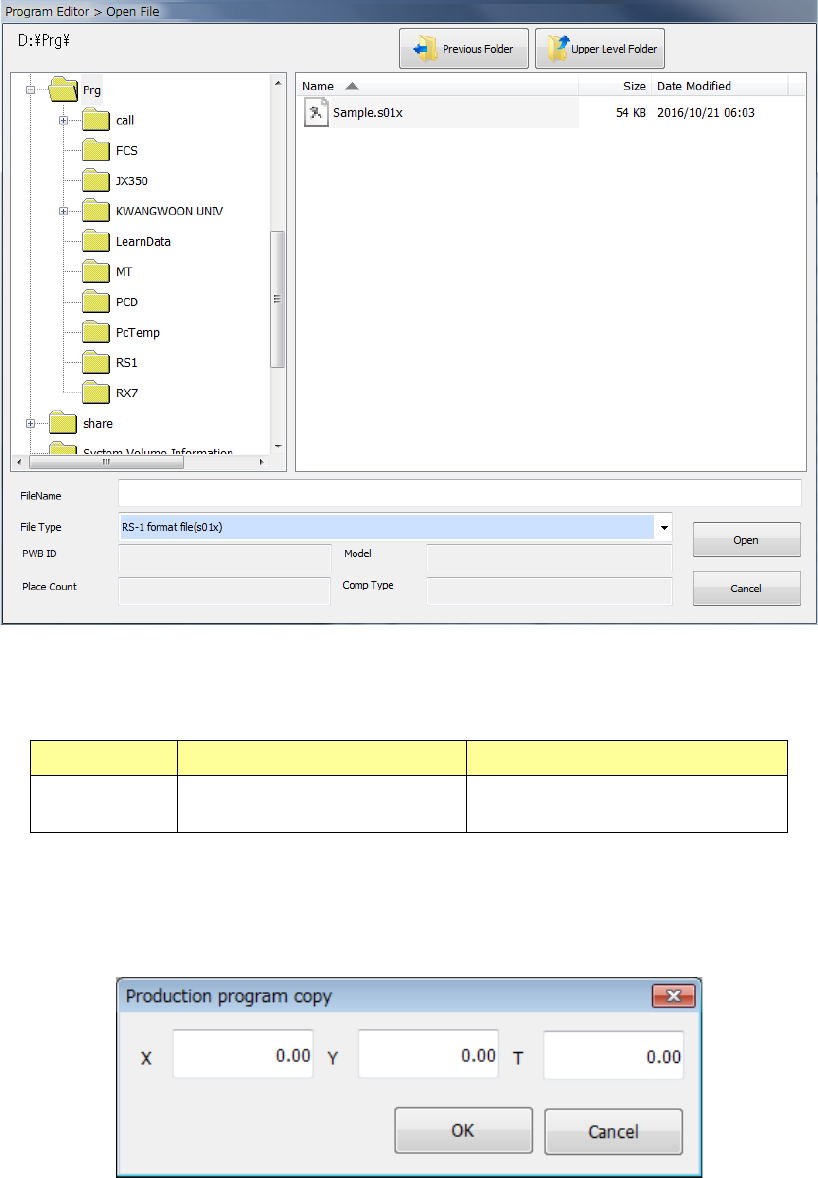

When you select the [Production program copy] command from the menu, the “Open File” dialog

box appears on the screen.

Combination of the file formats of production programs that can be copied is shown in the table

below.

Model Source file format Destination file format

RS-1/1R RS-1/1R format file (s01x) RS-1/1R format file (s01x)

Note: Combination of any other formats of files is impossible.

When the system reads a file, the following dialog box for entering an offset to the next reference

board position opens. Enter an offset value.

Part 1 Basic Operation Chapter 4 Creating a Production Program

4-164

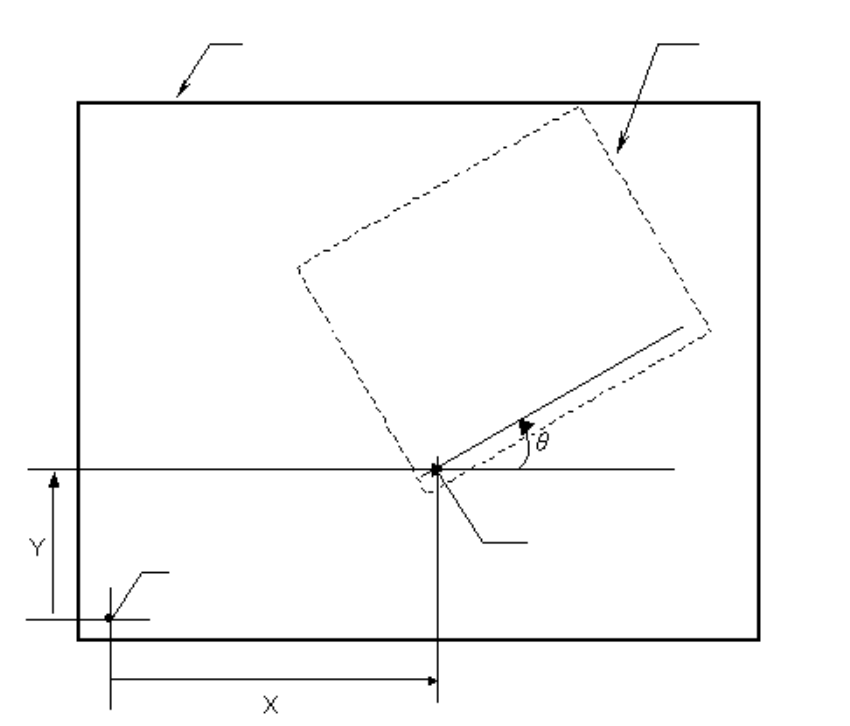

The definition of an offset value is shown in the figure below.

Source PWB

Destination PWB

Source PWB

reference position

Destination PWB

reference position
