Part 1 Basic Operation Chapter3 Daily maintenance
3-19

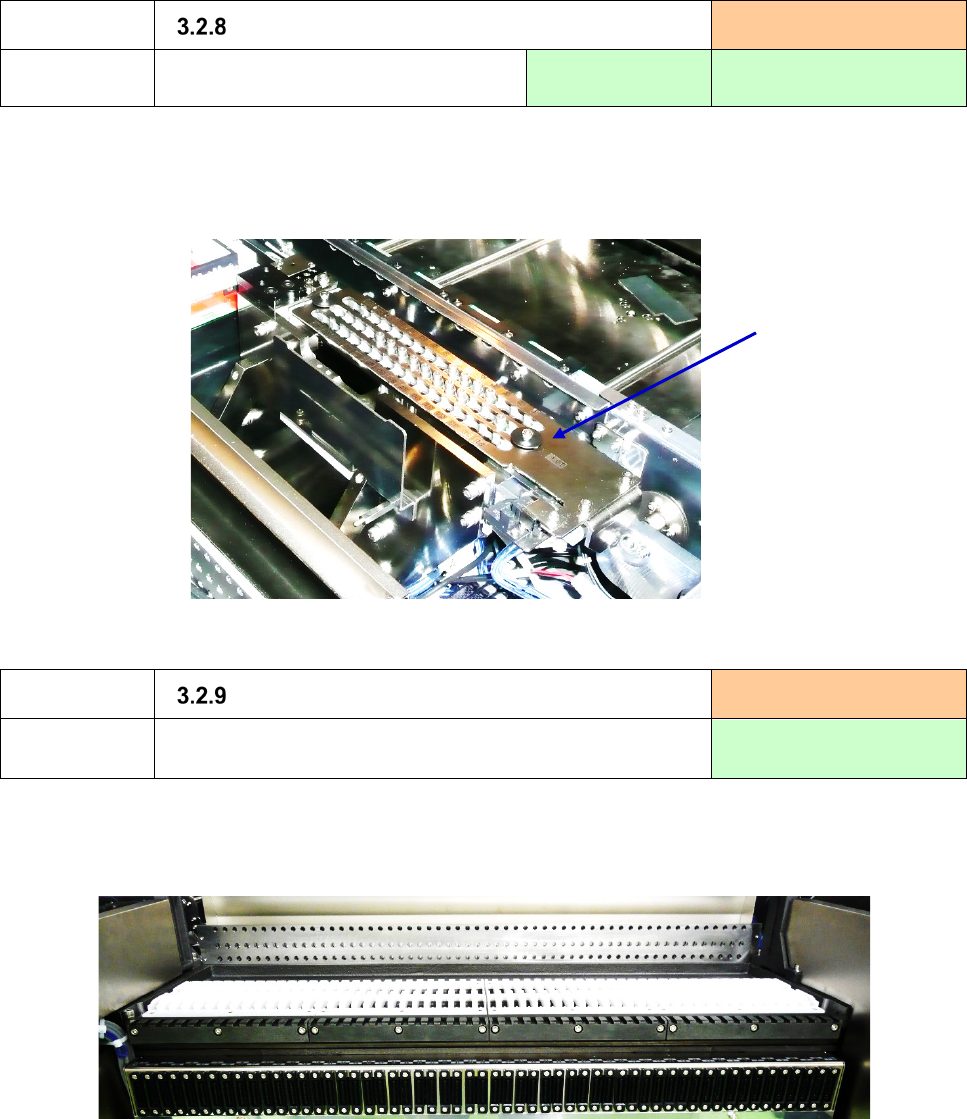

Where to clean
ATC Unit
Cleaning frequency:
Every week
How to clean
Cleaning of dust and/or a foreign
substance from the ATC
Tool to be used:
Waste cloth
Recommended solution:
IPA
1) If there is a chip or a foreign substance on the “slide plate ①,” it may cause a nozzle
detachment/attachment failure.
Clean the slide plate with waste cloth or similar cloth dampened with alcohol.
Where to clean
Feeder bank
Cleaning frequency:
Every week
How to clean
Cleaning of dust and/or a foreign substance from the feeder
bank
Tool to be used:
Cleaner Brush
1) Clean the feeder bank on regular basis.
In addition, clean the feeder bank with a cleaner or similar device if there is a foreign substance such
as a chip on it before attaching a feeder such as a tape feeder on it.
①
Part 1 Basic Operation Chapter3 Daily maintenance
3-20
Where to clean
Exchange trolley
Cleaning frequency:
Every week
How to clean
Cleaning of dust and/or a foreign substance from the feeder
bank
Tool to be used:
Brush and/or cleaner
1) Clean the overall feeder exchange trolley on regular basis.
In addition, clean the feeder bank with a cleaner or similar device if there is a foreign substance
such as a chip on it before attaching a feeder such as a tape feeder on it.
2) Check to see if there is no foreign substances such as a chip around the “bank locating pin” (both
sides
<For an electric feeder>
1) Before inserting a feeder exchange trolley into the main unit, clean off the topside of the bank lifter
with a cleaner or other tool if there is any foreign substance such as a chip component on the
topside of the bank lifter.
2) Check to see if there is no foreign substance such as a chip component around the “bank locating
pins” (on both sides) also.
3) Check to see if there is no foreign substance such as a chip component around [O-Ring] (right-hand
side) also.

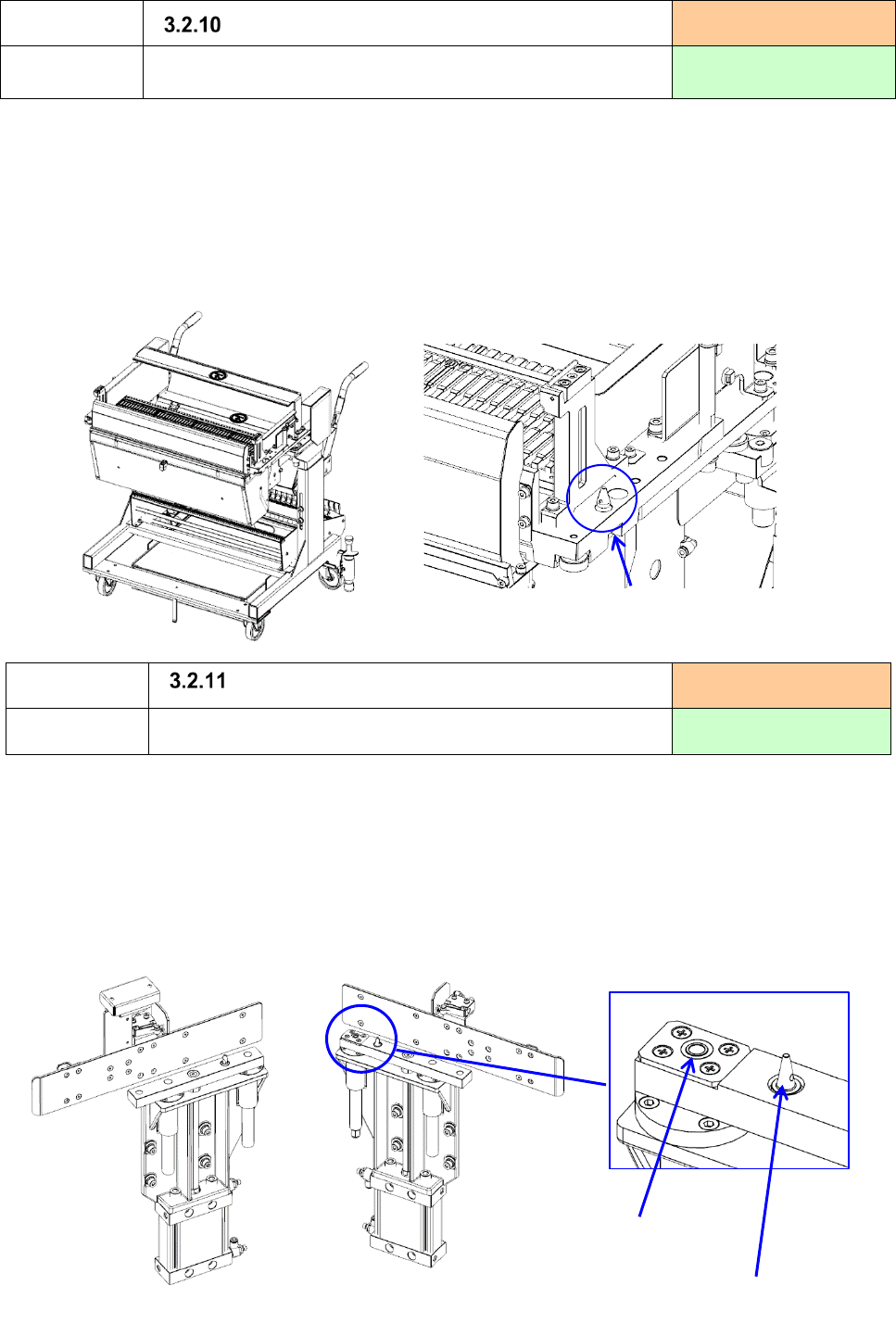

Where to clean
Bank lifter
Cleaning frequency:
Every week
How to clean
Cleaning of dust and/or a foreign substance from the topside
of the bank lifter
Tool to be used:
Brush and/or cleaner
Bank locating pin (on both sides)
Bank lifter L
O-ring
Bank lifter R
Bank locating pin (on both sides)
Part 1 Basic Operation Chapter3 Daily maintenance
3-21

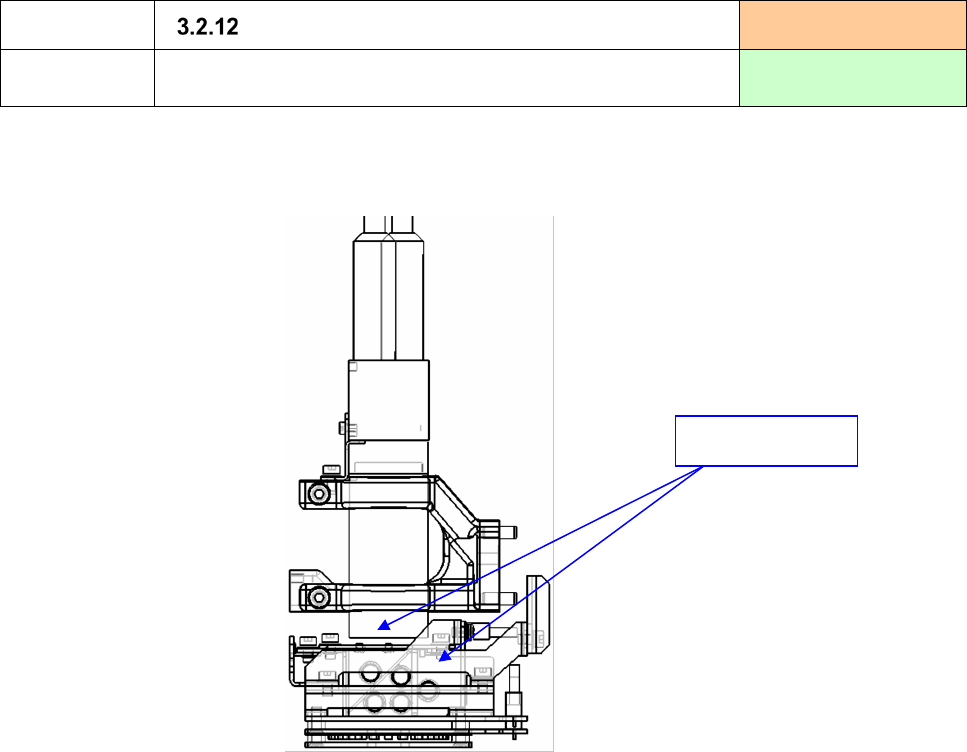

Where to clean
OCC (Polarizing filter)
Cleaning frequency:
Every week
How to clean
Cleaning of dust and/or a foreign substance from the OCC
(polarized filter)
Tool to be used:
Air gun
1) Check to see if there is no dust and/or foreign substance on the polarizing filter of the OCC. If there
is any, remove it with an air gun or like.
Polarizing filter
