Part 2 Detailed Description of Each Function Chapter 9 Manual Control
9-18

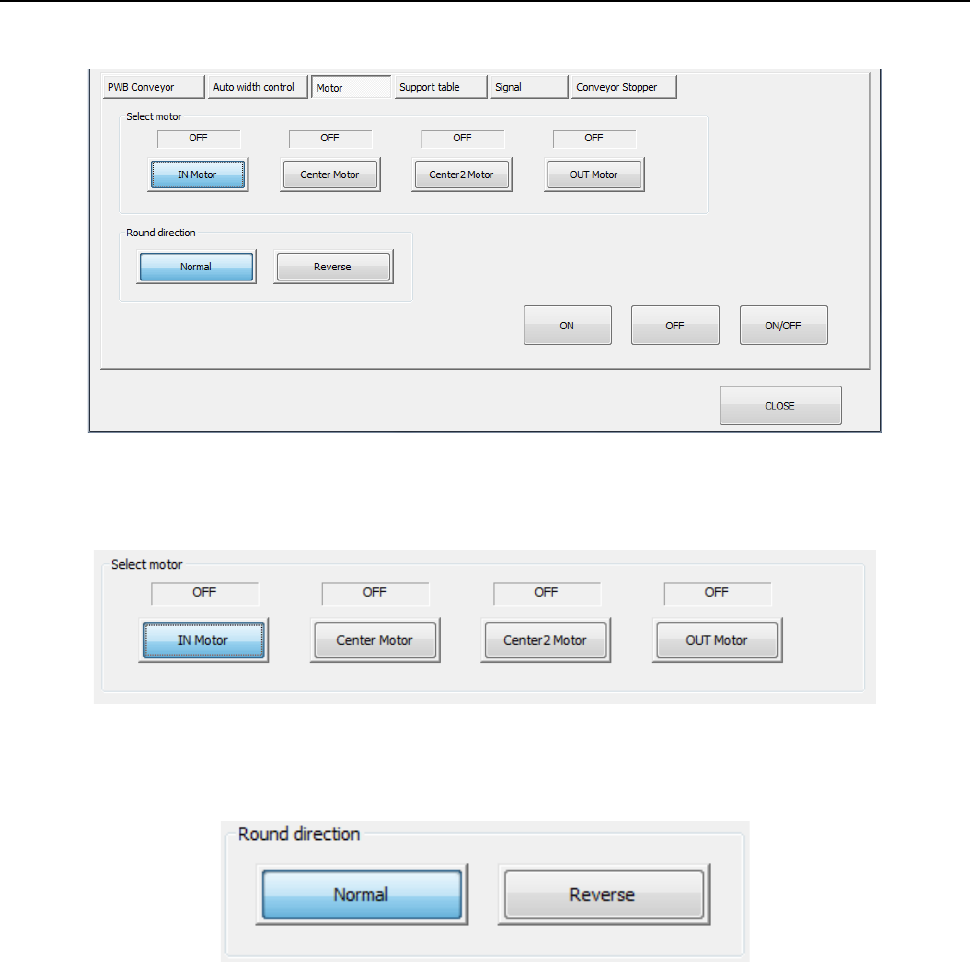

9.4.1.3 Control tab: Motor
When you press the <Motor> button, the following screen appears.
(1) Select motor
Select a control motor by radio button.
(2) Round direction
Select the direction of motor rotation by radio button.
(3) ON/OFF buttons
The ON/OFF status of he selected conveyor motor is controlled by pressing the <ON>
button, <OFF> button, or <ON/OFF> button.
Part 2 Detailed Description of Each Function Chapter 9 Manual Control
9-19
9.4.1.4 Control tab: Support table
When you press the <Support table> button, the following screen appears.
- “Support table” tab (for a single-lane conveyor)
(1) Status
The status of the origin sensor is displayed.
(2) Control item
Select a control item by radio button.
When you press the control button, control is started for the selected item.
1) Support table
The support table is caused to go up and down. When “Support table” is selected,
press the <ON]> button, <OFF> button, or <ON/OFF> button for control.
2) Support table stopper
The support table stopper is turned on and off. When “Support table stopper” is
selected, press the <ON> button, <OFF> button, or <ON/OFF> button for control.
3) Buffer selector
The buffer selector is turned on and off. When “IN buffer selector” or “OUT buffer
selector” is selected, press the <ON> button, <OFF> button, or <ON/OFF> button for
control.
Part 2 Detailed Description of Each Function Chapter 9 Manual Control
9-20
9.4.1.5 Control tab: Signal
When the <Signal> button is pressed, the following screen appears.
(1) Status
The status of each sensor is displayed here.
(2) Control item
Select a control item by radio button.
(3) <ON>/<OFF>/<ON/OFF> buttons
Select control items for signals with ON/OFF.
