Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-76
12.12.2.3 Editing Component Data

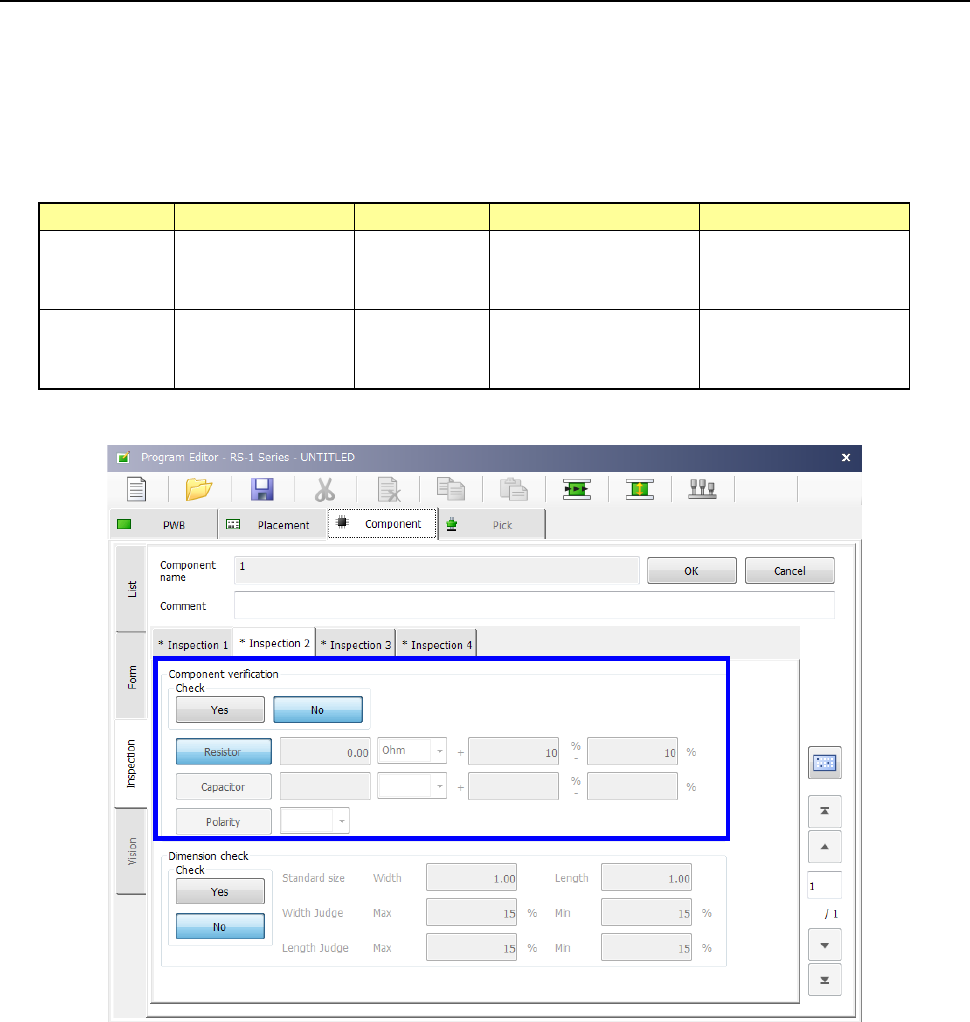

Specify whether to verify a component and set the value to be used for judging the inspection
result on the “Inspection” tab of the “Component” data screen.
To set the supplying direction of a component that has a polarity such as a diode, regard the right
side viewed from the front of the machine as “+,” and the left side as “-” when the component
supply angle is 0º.
For details, refer to “4.3.5.2.(7) Inspection 2.”
Input range
Unit
Upper limit
Lower limit
Resistor 0.00 to 999.99
Default: 0.00
Ω (default)
KΩ
MΩ
0 to 100 %
in increments of 1 %
Default: 10 %
- 100 to 0
in increments of 1 %
Default: - 10 %
Capacitor 0.0 to 999999.99
Default: 0.00
pF (default)
μF
0 to 100 %
in increments of 1 %
Default: 80 %
- 100 to 0
in increments of 1 %
Default: - 20 %
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-77
12.12.2.4 Operations
1) Single check/Continuous check
You can execute a single verify check or a continuous verify check from the menu provided on
the Production menu invoked from the “Program Editor” screen.
See Section “2.12.3 Verify check (option)” for operation.
2) When components run out
If you check the “The verification inspection is done on restart, when component run out.”
option on the “Operation option” menu, the machine will restart PWB production only after
performing a verification check for a chip component.
3) Verify check from the “Retry” list displayed during PWB production
When you replace a feeder with another one due to a component run-out error or another
reason while the “Retry” list is being displayed, you can execute the component verification
check.

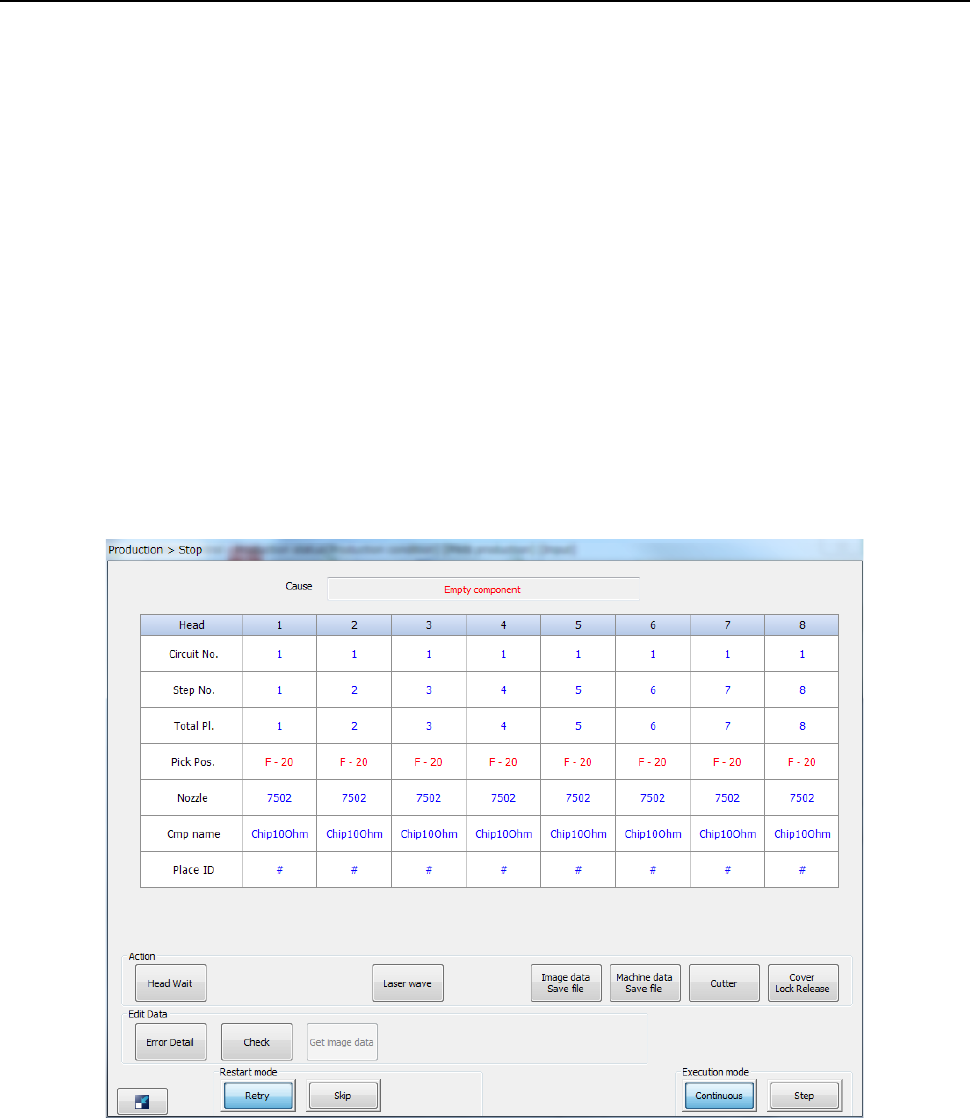

- The following screen appears when the system stops since you check the check box “Stop
system when components run out.” on the “Production (Pause)” tab invoked from the
“Operation option” dialog box.
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-78
- The message notifies you of whether a verify check is executed successfully or fails.
If it fails, the message asking you whether to execute a single verify check appears on the
screen.
When you select <Yes> and press the [Single verification] button. Then, single verification is
performed.
When you select the <No> button, the machine finishes the verify check.
