Part 1 Basic Operation Chapter3 Daily maintenance

3-39

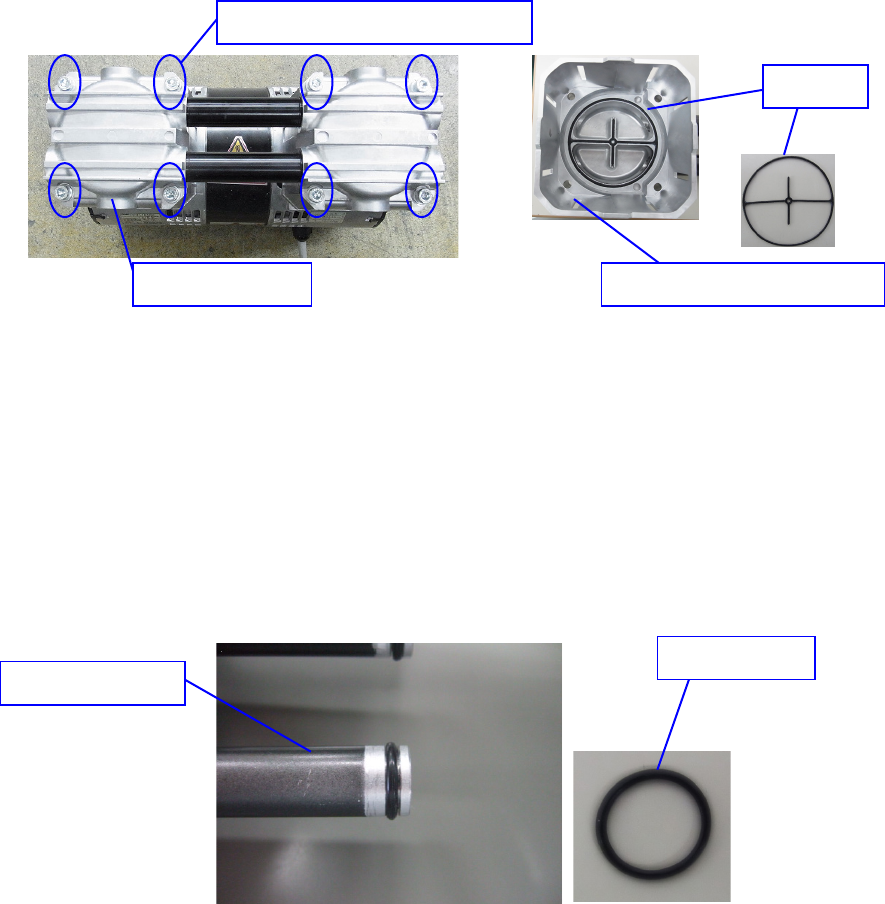

 Replacing the gasket

1) Remove four hexagon headed bolts (M6×95) (total eight bolts on the left and right sides) from

the pump head cover.

2) Remove the total of two black gaskets from the inside of the pump head cover, and then replace

them with new gaskets.

* Make sure that the gaskets are fit in the gasket groove of the pump head cover.

3) Tighten the hexagon headed bolts (M6×95) fixing the pump head cover and located in diagonal

lines at 5.0 N·m.

* To replace another consumable part with a new one, see the description of the procedure for

replacing the corresponding part without closing the cover.

 Replacing the O-ring P-10

1) Remove the pump head cover and the connecting pipes in the manner described in the

procedure for replacing the gasket above.

2) Attach the O-ring P-10 on the connecting pipe that connects two pump head covers.

3) While taking care not to damage the O-ring when inserting the connecting pipe, replace the

O-ring with a new one. (Replace two O-rings on both sides of each pipe.)

* Before replacing the O-ring, clean the O-ring groove of each connecting pipe and the connecting

pipe attachment hole of the pump head. To assemble the cover, follow the procedure for

replacing the gasket. To replace another consumable part with a new one, see the description

of the procedure for replacing the corresponding part without closing the cover.

Pump head cover

Inside of the pump head cover

Gaskets

Hexagon headed bolts (M6

95)

O-ring P-10

Connecting pipe

Part 1 Basic Operation Chapter3 Daily maintenance

3-40

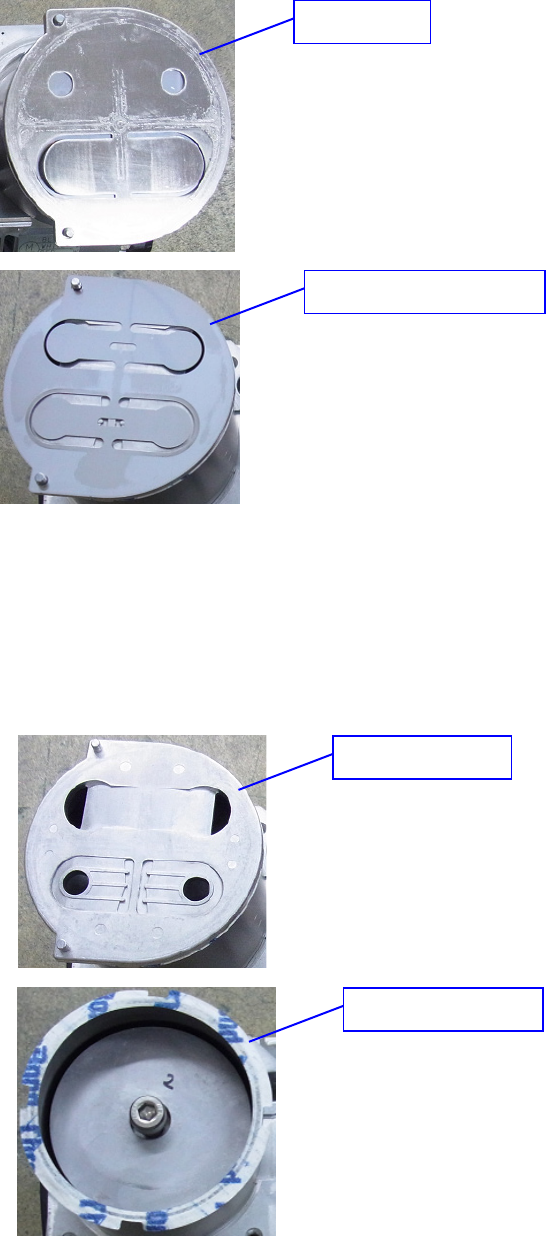

 Replacing the air suction/release valve

1) Remove the valve guard.

2) Remove the air suction/release valve, and replace it with a new one.

* To assemble the cover, follow the procedure for replacing the gasket. To replace another

consumable part with a new one, see the description of the procedure for replacing the

corresponding part without closing the cover.

 Replacing the cylinder gasket

1) Remove the cylinder plate.

2) Remove the cylinder gasket, and replace it with a new one.

* To assemble the cover, follow the procedure for replacing the gasket. To replace another

consumable part with a new one, see the description of the procedure for replacing the

corresponding part without closing the cover.

Valve guard

Air suction/release valve

Cylinder plate

Cylinder gasket

Part 1 Basic Operation Chapter3 Daily maintenance

3-41

 Replacing the cup packing

1) Remove the cylinder.

2) Remove the hexagon headed bolt (M8×20).

3) Remove the cup packing retainer, and then replace the cup packing with a new one.

Pay attention to the direction of the cup packing. Fit it in the connecting rod.

4) After replacing the cup packing with a new one, tighten the hexagon headed bolt (M8×20) at

12.0 N·m.

* To assemble the cover, follow the procedure for replacing the gasket. To replace another

consumable part with a new one, see the description of the procedure for replacing the

corresponding part without closing the cover.

Cup packing retainer

Hexagon headed bolt (M8×20)

Cup packing
