(2) How to set
1) Default back height
a) When the unit is mm, a value of -0.5 to 48 can be set.
2) Support table overstroke (available only when a board is transported with the
single-lane conveyor)
a) When the unit is mm, a value of 0.00 to 5.00 can be set.
3) Acceleration
a) This item can be set by 4 steps from the combo box.
4) Ceramic board determination size
a) When the unit is mm, a value of 50.00 to 905.00 can be set.
Part 2 Detailed Description of Each Function Chapter 8 Machine Setup
8-29
Shape clamp position adjustment
When you select “Shape clamp position adjustment,” the following screen appears.
- “Shape clamp position adjustment” screen
(1) Setting item
No. Item Description
1 X Board clamp stop position with the conveyor stopper
(2) How to set
Perform teaching to enter data on this screen.
Example: When a board is transferred from left to right
To perform teaching, set the conveyor stopper to ON in advance.
Conveyor
Conveyor
stopper
Shape reference position
X (stop position)
* Adjust the rail support (stopper main unit) so that the X-direction position of the tip of the
stopper pin is set as shown below according to the board specifications:
- Standard/XL board specifications
When a board is transferred from left to right: 781.6± 0.5 mm
When a board is transferred from right to left: 131.6 ± 0.5 mm
CAUTION
To avoid a risk of injury, do not put your hand in the machine, nor move
your face or head close to the machine while the machine is teaching
data.
Part 2 Detailed Description of Each Function Chapter 8 Machine Setup
8-30
8.3.4 Position setting
Component reject position

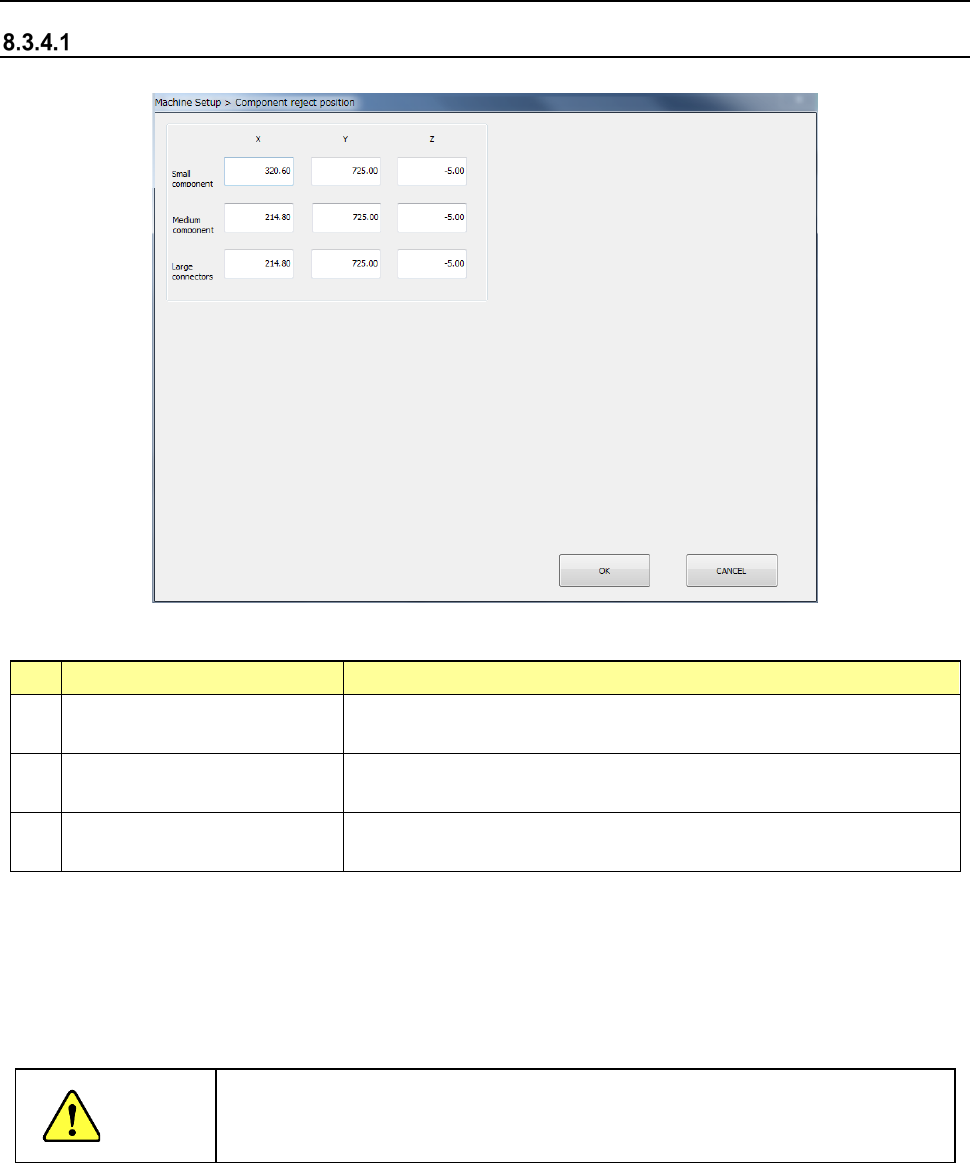

When you select [Component reject position], the following screen appears.
(1) Setting items
No.
Item
Description
1 Small component (X, Y, Z)
Discard position of a small size component
(long side of 15 mm or less)
2 Medium component (X, Y, Z)
Scrapping position
for medium components (components with a long
side of 180 mm or less and a short side of 35.5 or less)
3 Large component (X, Y, Z)
Scrapping position for large components (components with a long
side of 180 mm or less a short side of 50 mm or less)
(2) How to set
1) Enter a value each in the edit box for each of X, Y, and Z.
2) Press the <Teaching> button to enter values. Regardless of which field the input focus
is located in, “X” or “Y,” values are entered in both fields at the same time.
3) To t each the “Z” coordinate, the input focus should be located in the “Z” field.
CAUTION
To avoid a risk of injury, do not place your hand in the machine, nor move your
face or head close to the machine while the machine is teaching data.
