Descriptions of a warming-up operation

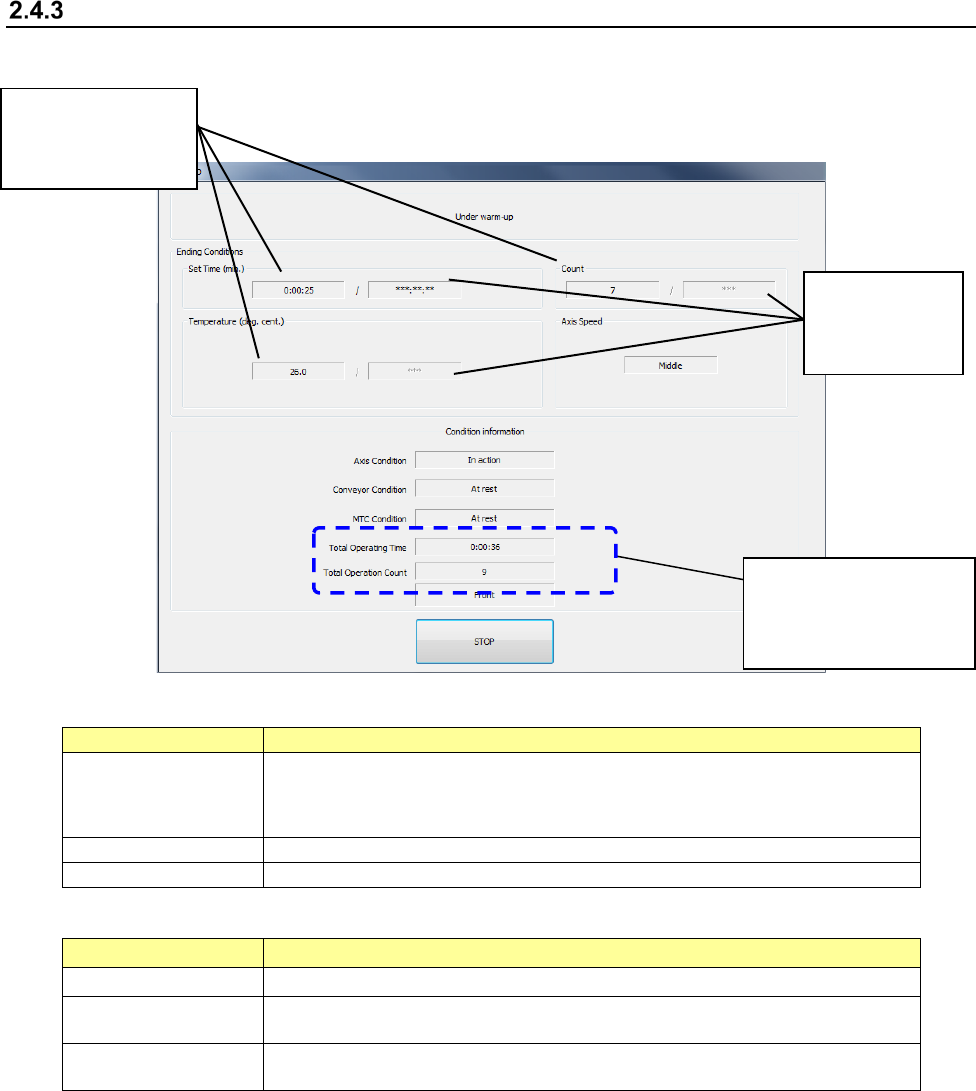

The following dialog box appears on the screen while the machine is warming up.
The part you have selected warms up as described in the table below.
Part to be warmed up
Description
Axis
Drives the X-, Y-, Z-, θ- and ZA-axis, turns on/off the vacuum and the blower, and
opens/closes the ATC slide plates.
Note that when the system opens/closes the ATC slide plate ten times, it finishes warming
up the ATC slide plate..
Conveyor
Drives the IN motor, the OUT motor and the support table motor.
MTC
Drives the shuttle.
The following information appears on the screen.
Information Description
Settings you made Displays the time or number of times you have set on the initial screen.
Time (min)/
Count/Temperature
Displays how long the machine has operated, how many times the machine performed a
warming-up operation, or the current temperature.
Total information
Displays the total time and number of times the machine has warmed up.
You can clear this information on the “Machine management information” screen.
When you press the <STOP> switch or click the <STOP> button displayed on the screen, the
screen for confirming your stop operation appears.
When you click the <Yes (Y)> button:
When you click the <Yes (Y)> button on the confirmation screen, the machine stops the
warming-up operation, and displays the initial screen again. If you start warming up the
machine again, you can continue the previous warming-up operation without clearing the
time or number of times the machine has warmed up. However, if you change the
warming-up condition, Time to Count or vice versa, the total warming-up time or number of
times the machine has warmed up is cleared.
When you click the <No (N)> button:
When you click the <No (N)> button, the machine restarts warming up.
Total information
This indicates the total
time/number of times the
machine has warmed up.
Time/count/tempe
rature you have
set on the initial
screen
Current
time/count/temperature
of warming-up
operations
Part 1 Basic Operation Chapter 2 Production
2-17
2.5 Pass-Thru Mode
Use this command when you transport a PWB through this machine as a PWB transportation buffer
without producing any PWB.
When you select the “Product” button command from the menu of the main screen, then the
[Pass-Thru Mode] command, the following screen appears to move back all axes if the return to
origin operation was performed already.
After all axes are moved back to the safe areas, the “Information” dialog box that asks you whether
to change the conveyor width.
Part 1 Basic Operation Chapter 2 Production
2-18
When you select the <Yes> button, the “Automatic conveyor width adjustment” screen appears.
The <Move> button allows you to adjust the conveyor width.
After you adjust the conveyor width, or after you press the <No> button on the “Information” dialog
box, the Pass-Through mode start screen appears.
When you click a desired buffer mode from between <3 Buffer> and <1 Buffer> and click the <OK>
button, the following screen appears, and the conveyor belt starts rotating when a PWB reaches the
sensor of the conveyor.
When you select the <Auto Width Setting> button, the “Automatic conveyor width adjustment”
screen appears to allow you to change the conveyor width.
