Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-4
12.1.1.2 Setup
To mount and remove a tape, pull out the RF series electric feeder form the RF bank first. Then
conduct the work on the tape reel setup stand for RF feeder (option).

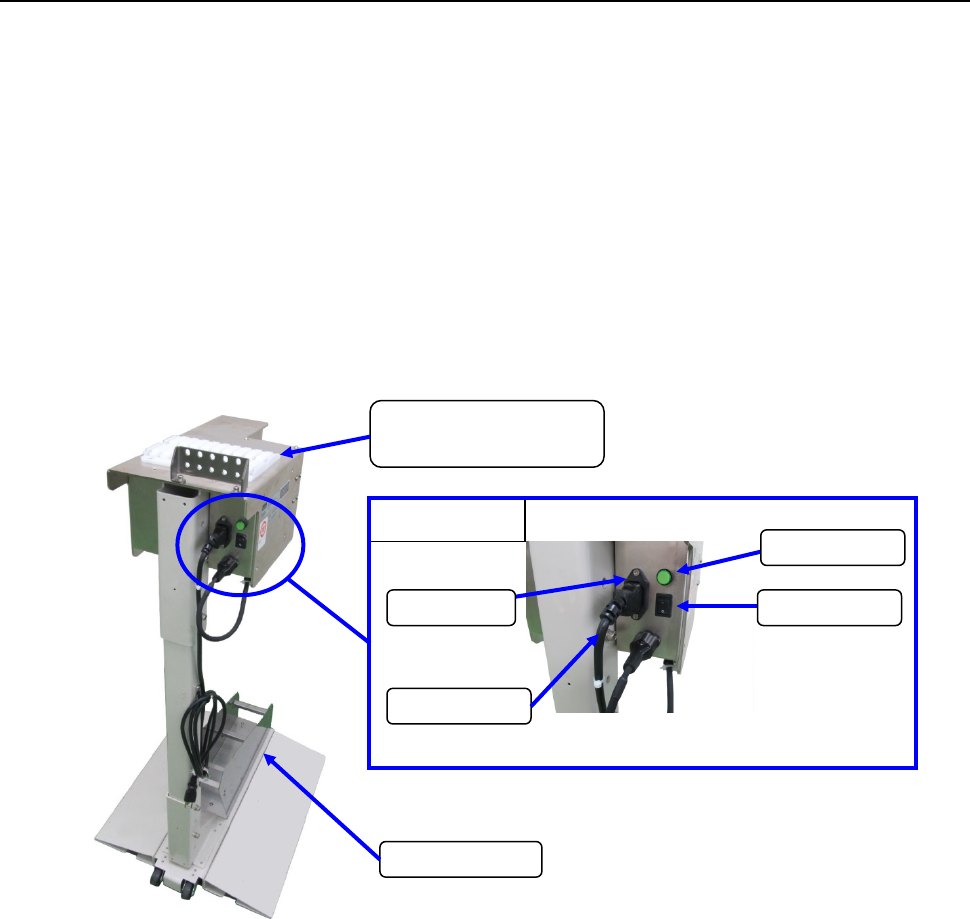

Procedure for setting a tape with the Tape reel setup stand for RF
(1) Connect the power plug of the tape reel stand to the AC outlet to supply power to the stand.
(2) Set the power switch to ON. Check to see if the lamp lights.
(3) Attach the RF series Electric tape feeder onto the RF work base.
(4) Place the tape reel on the reel holder, and then set a tape onto the RF series Electric tape
feeder.
(Refer to the Instruction Manual of each RF series Electric tape feeder for how to set a tape
onto it.)
(5) Grasp the grip section of the tape feeder firmly with your hand, and insert the slide rail in the
work base while supporting the lower side of the tape feeder with your opposite hand.
(6) The work-based lane uses a lane of the left edge.
Enlarged view
Power cord
Inlet
Power switch
Power lamp
RF work base
(RF attachment section)
Reel holder
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-5

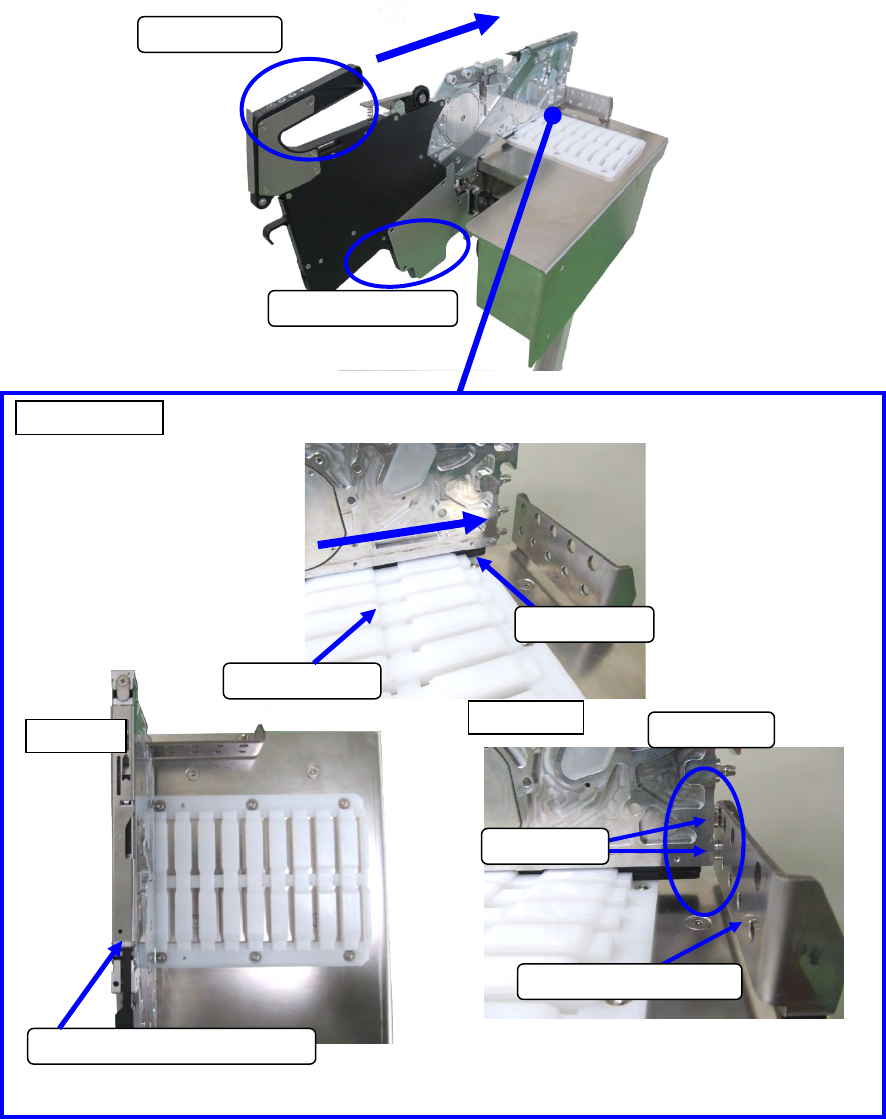

(7) Check to see if the edge of the slide rail was surely inserted in the work base, and insert the
tape feeder.
Grasp the grip
Support with hands
Use the left end lane.
Top view
Work base
Enlarged view
Slide rail
Side view
Contact
Guide pin F
Positioning plate
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-6

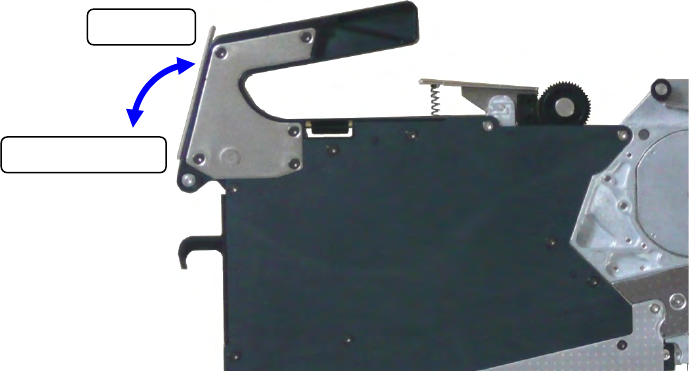

Clamp
Clamp releasing
(8) Operate the lock release lever of the feeder to clamp the feeder on the feeder setup stand for
electric feeder at the position where the guide pin F is in contact with the positioning plate.
