Part 1 Basic Operation Chapter3 Daily maintenance
3-24

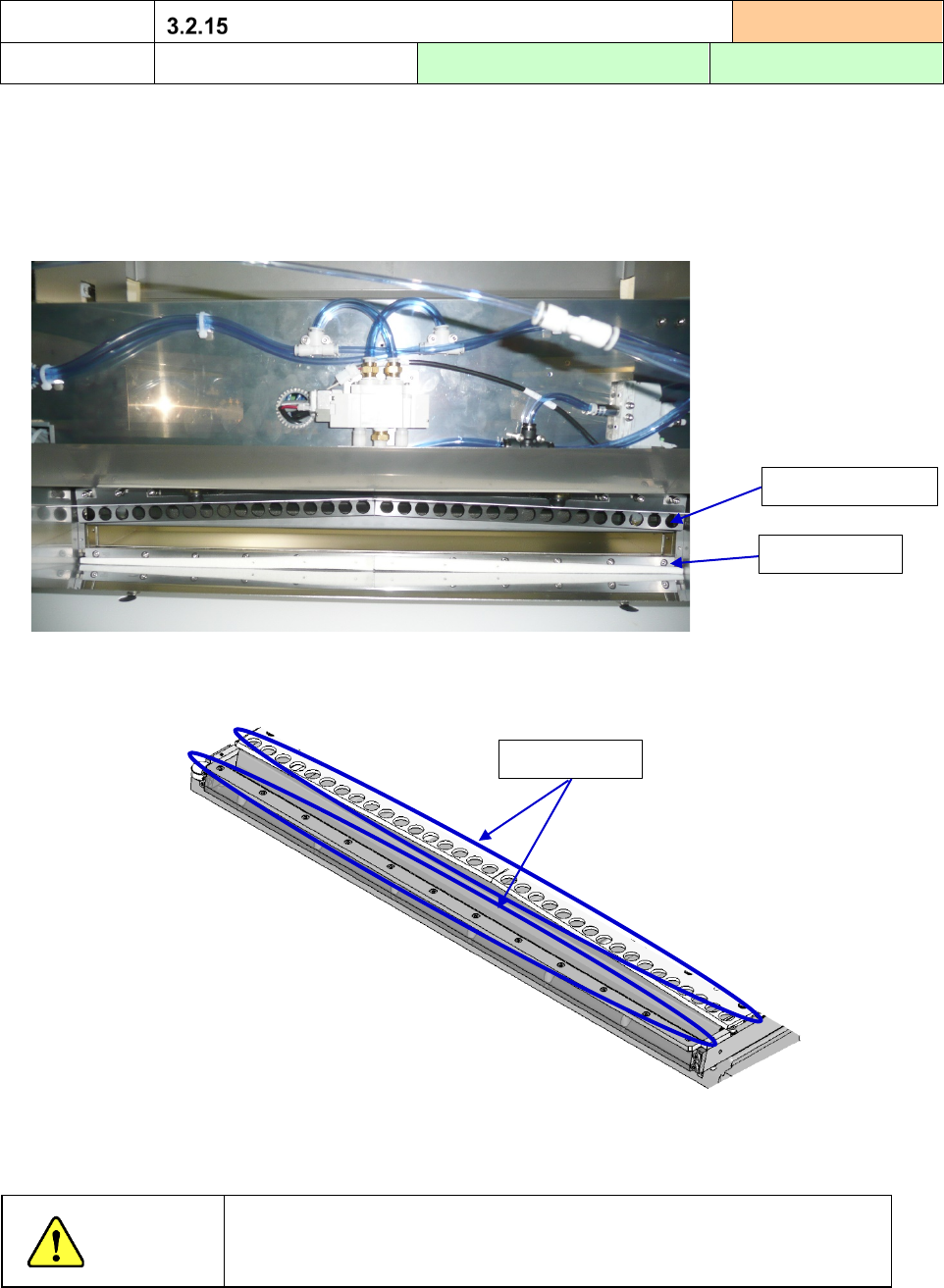

Where to clean
Cutter blade
Cleaning frequency:
Every six months
How to clean
Cleaning of the cutter blade
Tools to be used: Paint brush
Grease to be used:
6459 grease
* To clean the blade, be sure to wear stab-resistant gloves.
1) Be sure to turn off the power of the machine before cleaning the cutter blade.
2) Wear stab-resistant gloves, and then clean the blade with waste cloth or similar material.
(Apply alcohol to the blade to wipe off deteriorated grease also.)
Cutter unit
Locations to clean and apply grease
WARNING
Since the cutter blade is exposed, never touch it with your bare hand.
Movable blade
Fixed blade
Clean.
Part 1 Basic Operation Chapter3 Daily maintenance
3-25
Where to clean
Load control unit (option)
Cleaning frequency:
Every month
How to clean
Cleaning of dust and/or a foreign substance from
the load measurement surface
Tools to be used:
Waste cloth
1) Check to see if there is not any foreign substance such as dust on the load measurement surface.
If there is any foreign substance, clean it.
Where to clean
CVS (option)
Cleaning frequency:
Every week
How to clean
Cleaning of dust and/or a foreign
substance
Tools to be used:
Waste cloth
Recommended solution:
IPA
1) If any dirt and dust is stuck to the topside of the contact, clean it with cloth damped with alcohol. If
dirt or dust is stuck to the topside, the CVS may not be able to check an element normally.
2) If any foreign substance such as an element is caught in the slit section of the contact or around it,
remove it with a tool such as tweezers.
If a foreign substance is caught in such a section, the CVS may not be able to check an element
normally.
When removing a foreign substance, be careful not to damage any bundled wires of the contact.

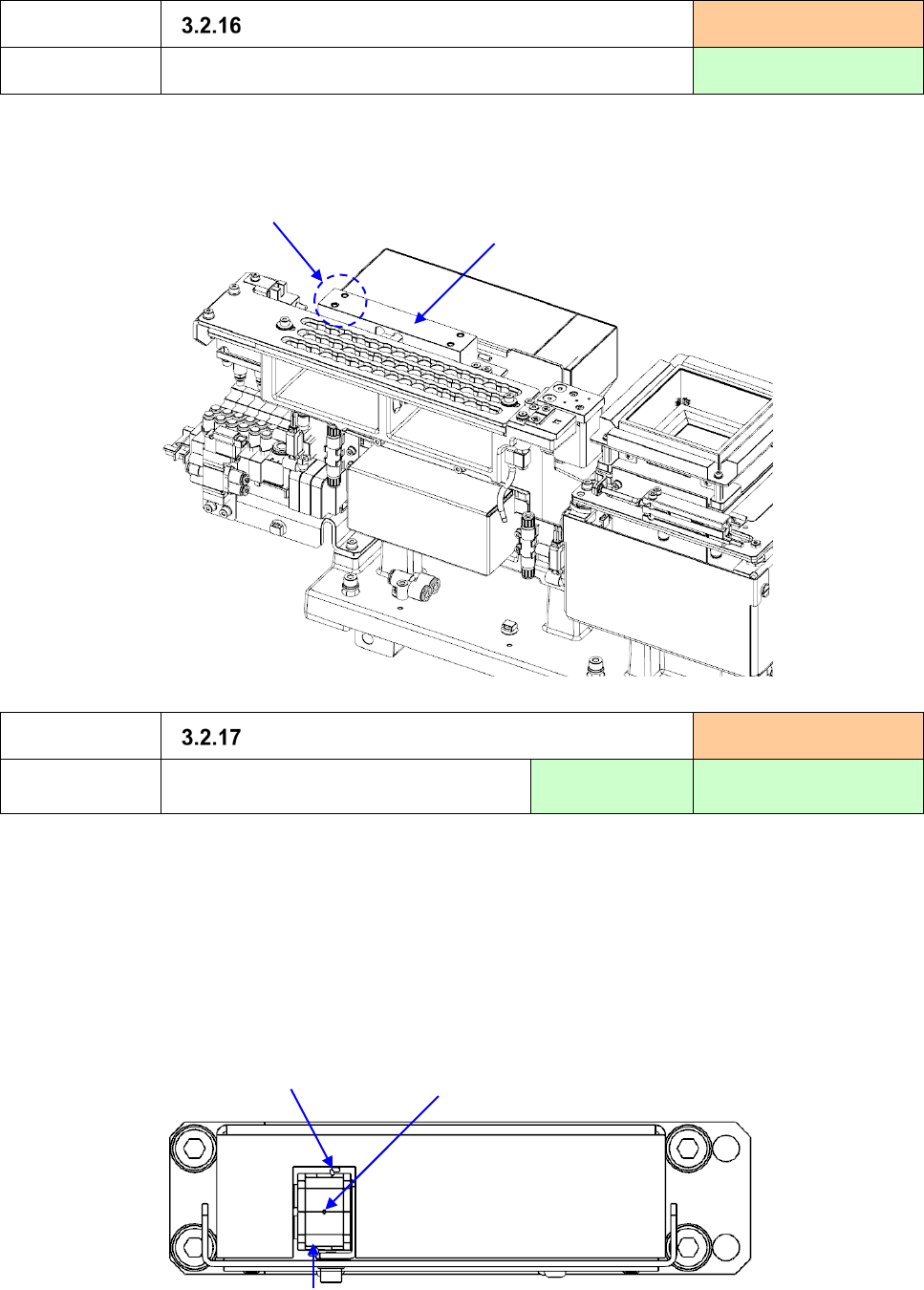

Load control unit (load cell)
Load measurement
Slit section
Bundled wires
Contact
Part 1 Basic Operation Chapter3 Daily maintenance
3-26
Where to clean
Coplanarity sensor (option)
Cleaning frequency:
everyday
How to clean
Cleaning of dust and/or a foreign substance
Tools to be used:
Waste cloth

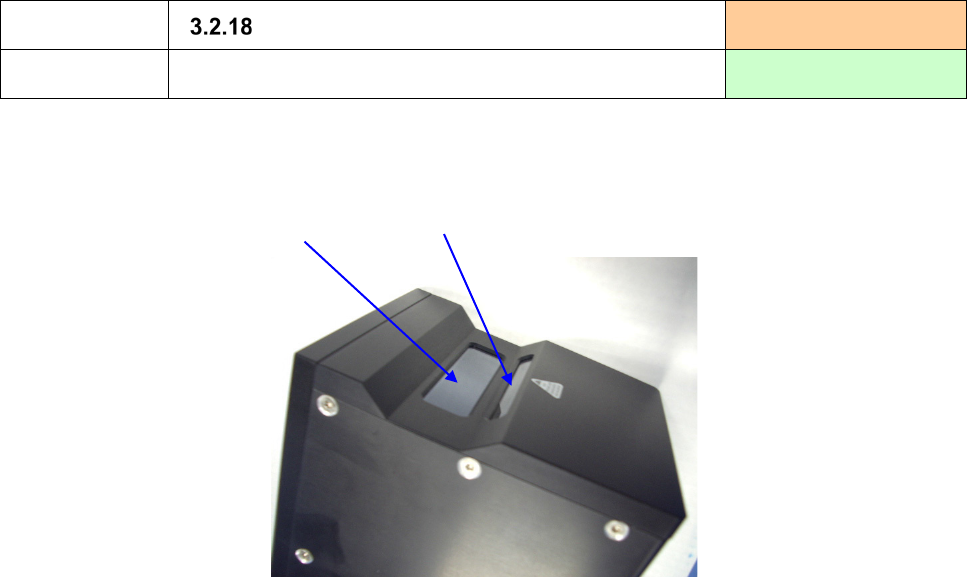

1) Wipe off dust and stains of the filter unit (the projection window/photodetection window) with dry
clean waste cloth or gauze.
Projection window
Photodetection window
