Part 1 Basic Operation Chapter 2 Production
2-41

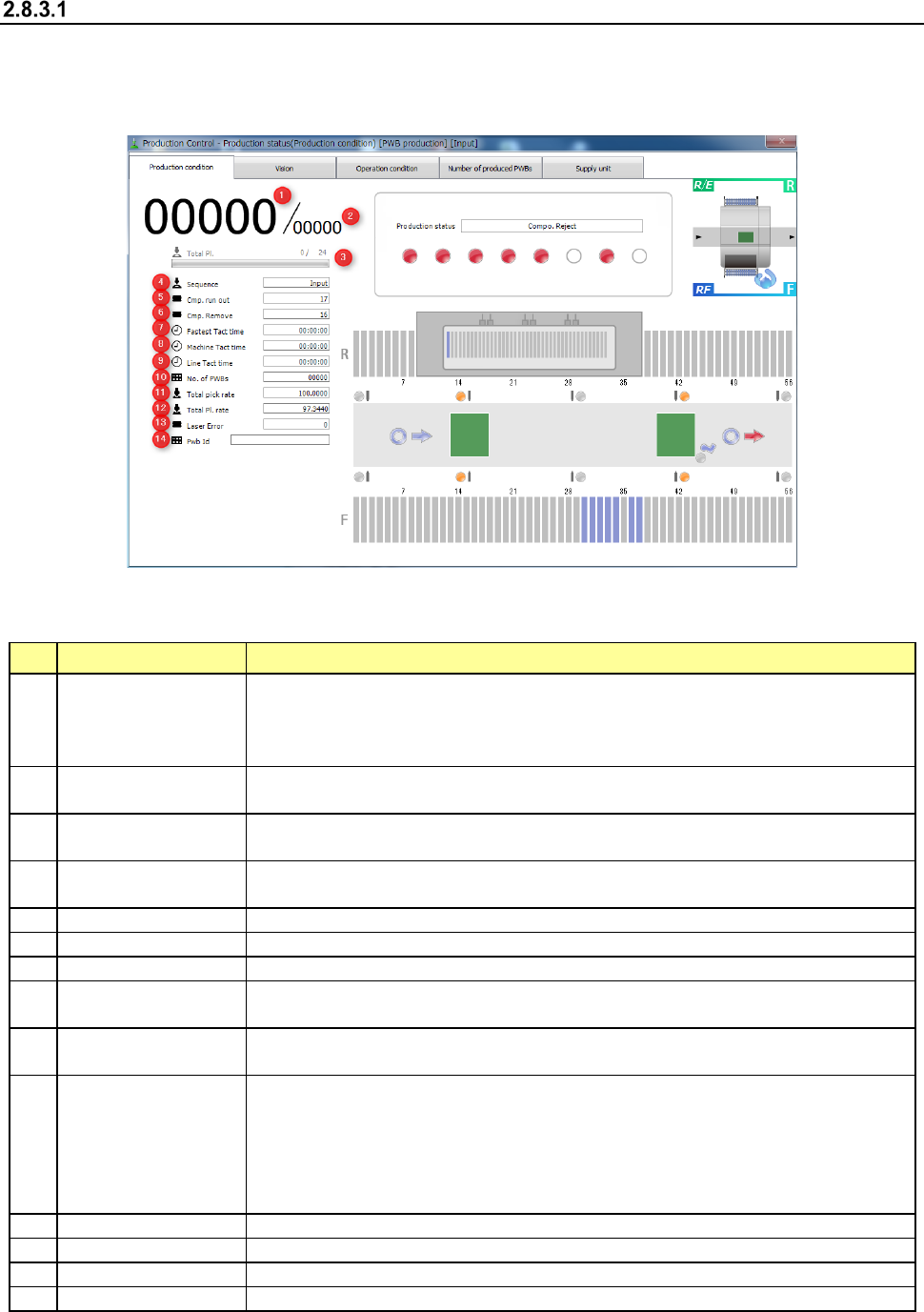

Production condition
When you select the [Window] command, and then the [Production status (Production condition)]
command, the “Production status (Production condition)” screen appears. This screen shows the
state of each device during PWB production.
- “Production condition” screen
1) Items for production information
The general information on PWB production is displayed here.
No. Item Description
1
Number of PWBs
already produced
Shows the number of PWBs that have been already produced here.
When the item “Count down the number of boards produced” is selected on the
“Production (Display)” tab of the “Operation option” menu, this field shows “the number
of PWBs that will be produced from now.”
2
Planned number of
PWBs to be produced
Shows the number of PWBs planned to be produced here.
3 Total Pl.
Shows the number of components already placed and the total number of
components to be placed on boards.
4 Sequence
Shows the component placement sequence being currently performed (Input order or
Optimized order).
5
Cmp. run out
Shows the accumulated number of times components run out.
6
Cmp. Remove
Shows the accumulated number of times a picked-up component was discarded.
7
Fastest Tact time
Shows the shortest cycle time of the machine. (Shortest placement time)
8 Machine Tact time
Shows the time passed from when one board was loaded to the machine until when
the board was ejected from the machine.
9 Line Tact time
Sows the time passed from when one board was ejected from the machine until when
the next board was ejected.
10 No. of PWBs
Shows “the number of PWBs produced already / the number of PWBs planned to be
produced.”
When the item “Count down the number of boards produced” is selected on the
“Production (Display)” tab of the “Operation option” menu, this field shows “the number
of PWBs that will be produced from now / the number of PWBs planned to be
produced.”
11
Total pick rate (%)
Shows the total component pick-up rate of the machine.
12
Total Pl. rate (%)
Shows the total component placement rate of the machine.
13
Laser Error
Shows the accumulated number of times a laser recognition error occurred.
14
Pwb ID
Shows a PWB ID of a production program.
Part 1 Basic Operation Chapter 2 Production
2-42

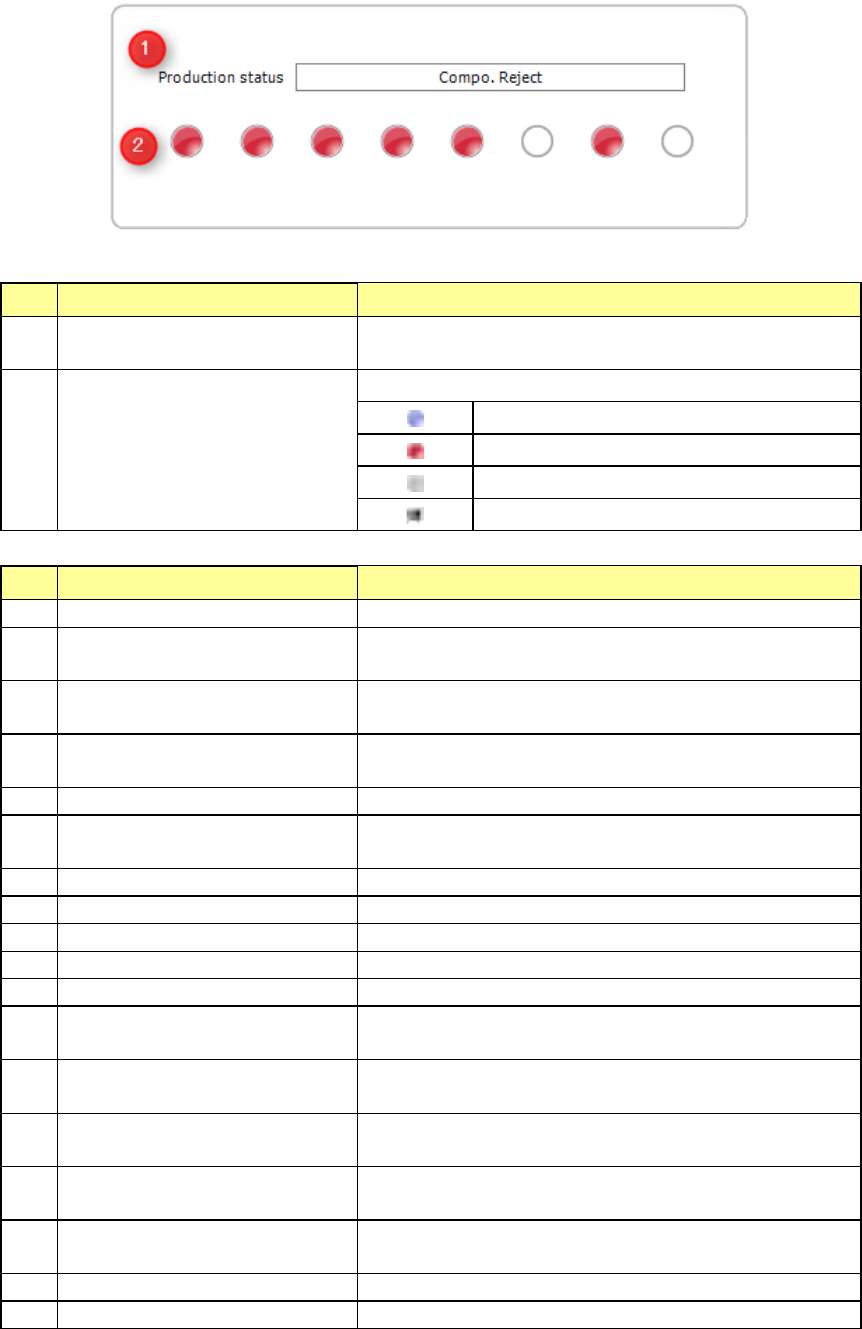

2) Items for head/bank information
These items show the state of each head and that of each bank.
Information shown with each item is as follows.
No. Item Description
1 Production
Shows the current production state.
See the table shown below for details.
2 Head
Shows the head number of each item.
Normal state
Error state
Unused state
Picking up component...
No. Displayed message State
1
PWB translating
A board is being transported.
2 VCS recognizing
The process for using a VCS to recognize a component that
is to be recognized with a VCS is being performed.
3 Multi recognizing
The process for multi-recognizing a component that is to be
multi-recognized is being performed.
4 SVCS recognizing
The process for using a SVCS to recognize a component
that is to be recognized with a SVCS is being performed.
5
Conveyor Waitingplace Moving
A board is moving to the board transport waiting position.
6 Recognizing area mark
The process for recognizing an area mark is being
performed.
7
Recognizing BOC mark
A BOC mark is being recognized.
8
Detecting bad mark
A bad mark is being detected.
9
Recognizing bank mark
A bank mark is being read.
10
Recognizing area bad mark
An area bad mark is being recognized.
11
Recognizing global bad mark
A global bad mark is being detected.
12 Attaching nozzle
A nozzle is being attached on a head or it is moving to the
nozzle attachment position.
13 Returning nozzle
A nozzle is being returned or it is moving to the nozzle return
position.
14 Place position
A component is being placed on a board or it is moving to the
placement position.
15 Pick position
A component is being picked up or it is moving to the pick-up
position.
16 Compo. Reject
A component is being discarded or it is moving to the
component discarding position.
17
Waiting for start production
The machine is preparing for PWB production.
18
Other position
The machine is performing operation other than the above.
Part 1 Basic Operation Chapter 2 Production
2-43

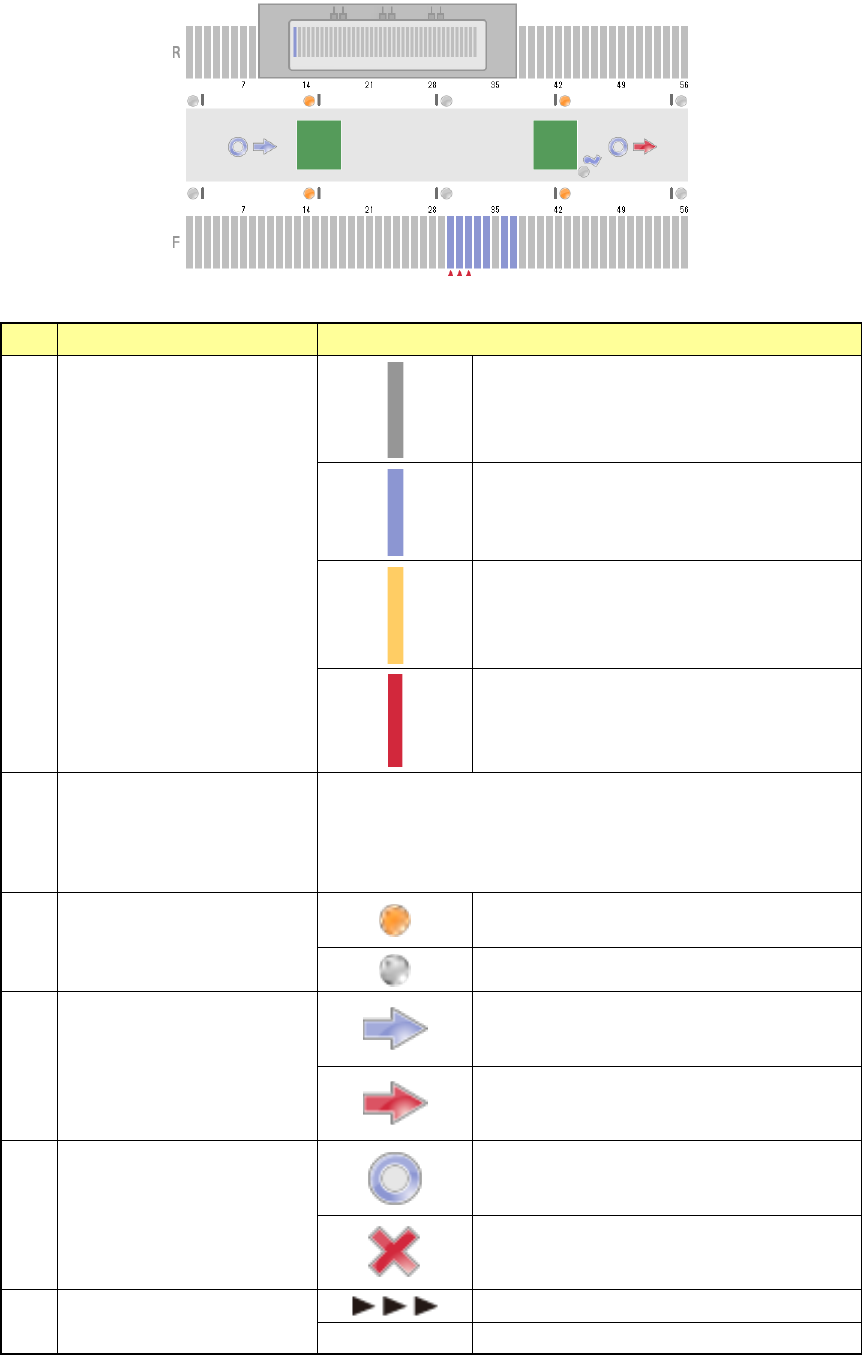

3) Items for bank/conveyor information
The state of the banks and that of the conveyor are shown here.
Information shown with each item is as follows.
No.
Item
Description
1 Feeder state
No feeder
Normal state
Components run out.
Error state
2 Worst feeder
Worst 3 feeders
Set the worst feeder with the menu item “Worst feeder selection
method” on the “Production (Display)” tab invoked from the
“Operation option” screen.
(“Pick-up rate” or “Number of pick-up errors”)
3
In sensor, WAIT sensor,
WAIT2 sensor, Stop sensor,
C-Out sensor, Out sensor
The sensor is set to ON.
The sensor is set to OFF.
4 Ready signal
The sensor is set to OFF.
The sensor is set to ON.
5 Board available
The sensor is set to OFF.
The sensor is set to ON.
6 Conveyor motor state
The motor is operating.
No display The motor is stopping.
