Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-122
12.16.6 Manual Control
12.16.6.1 ATC control
When you select [Others] – [ATC control] from the “Manual Control” screen, the “ATC control”
screen appears. When you select [Device enable] – [Head], and then enable the “Manual nozzle”
check box, the “ATC control” screen is displayed as shown below.
You can control the <Place control> button only.
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-123
12.16.7 Machine Information
12.16.7.1 Nozzle usage information

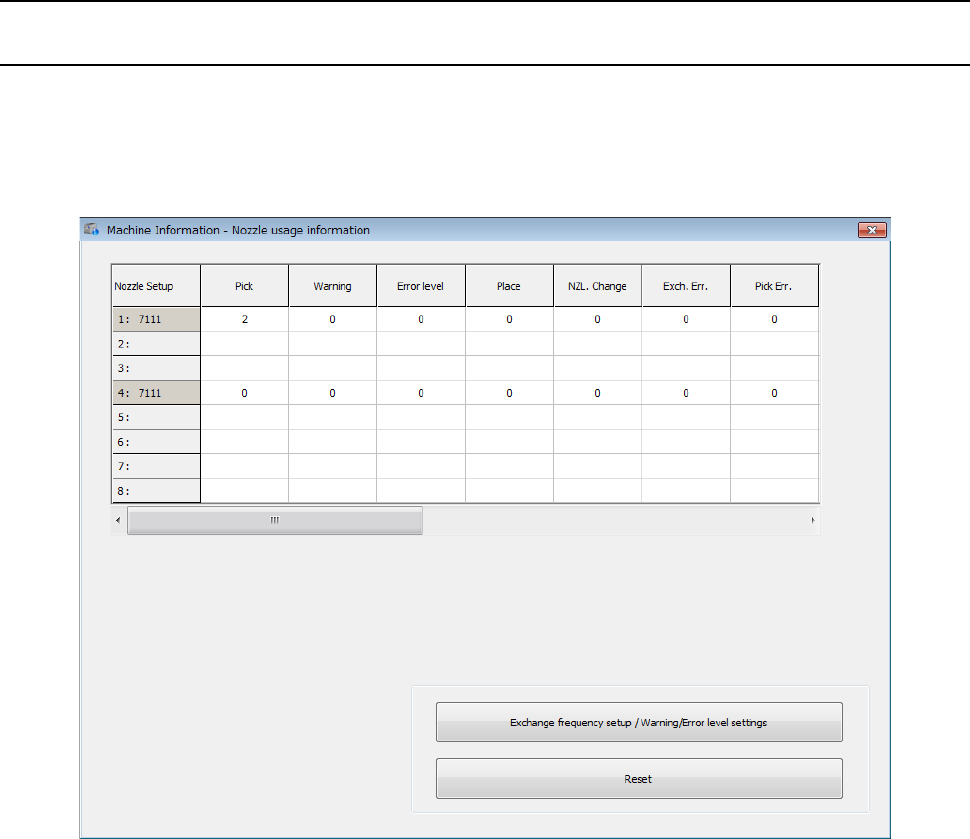

Nozzle usage information is controlled according to ATC numbers and nozzle numbers. When you
select [Device enable] – [Head], and then enable the “Manual nozzle” check box, the “Nozzle usage
information” screen is displayed as shown below.
This screen displays nozzle usage information for each head.
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-124
12.16.8 Program Editor
12.16.8.1 Component data
When you select [Device enable] – [Head], and then enable the “Manual nozzle” check box, a
nozzle to be attached manually is selected by default in Component data.
12.16.8.2 Measurement/inspection
Be sure to attach a nozzle on a head manually in advance before starting a single or continuous
inspection or a speed check.
12.16.8.3 Teaching
Before starting a teaching operation that uses a head, attach a nozzle on the head manually in
advance.
12.16.8.4 Optimization option

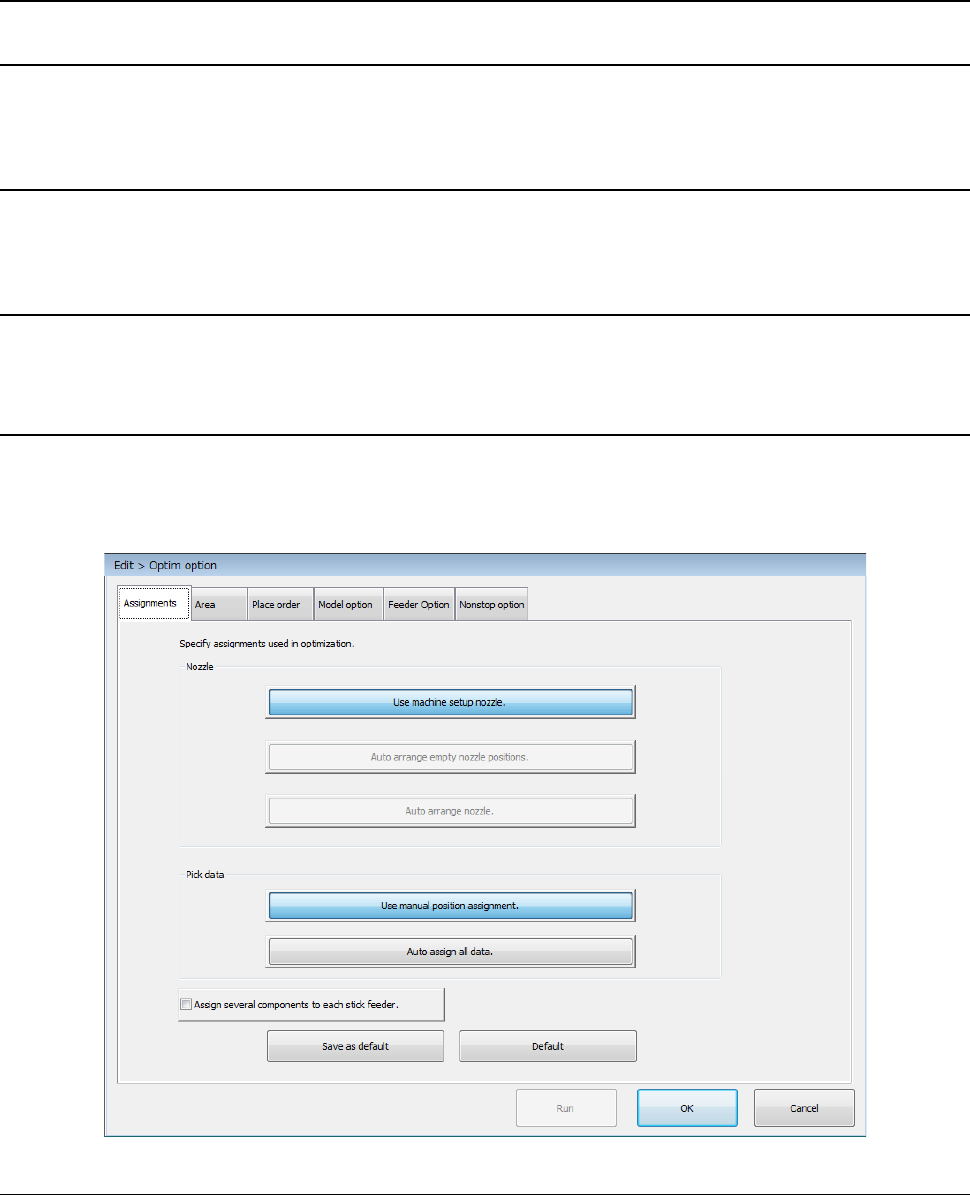

When you select [Device enable] – [Head], and then enable the “Manual nozzle” check box, you can
select only the <Use machine setup nozzle.> button of the menu item “Nozzle” on the “Assignments”
tab invoked from the “Operation option” screen. You cannot set the Optimization function to assign
nozzles automatically.
12.16.8.5 Nozzle layout
When you select [Device enable] – [Head], and then enable the “Manual nozzle” check box, the
system does not display any nozzle layout on the screen.
