Part 2 Detailed Description of Each Function Chapter 6 General-Purpose Vision Component
6-21
How to create data on a lead component group 6.4.3

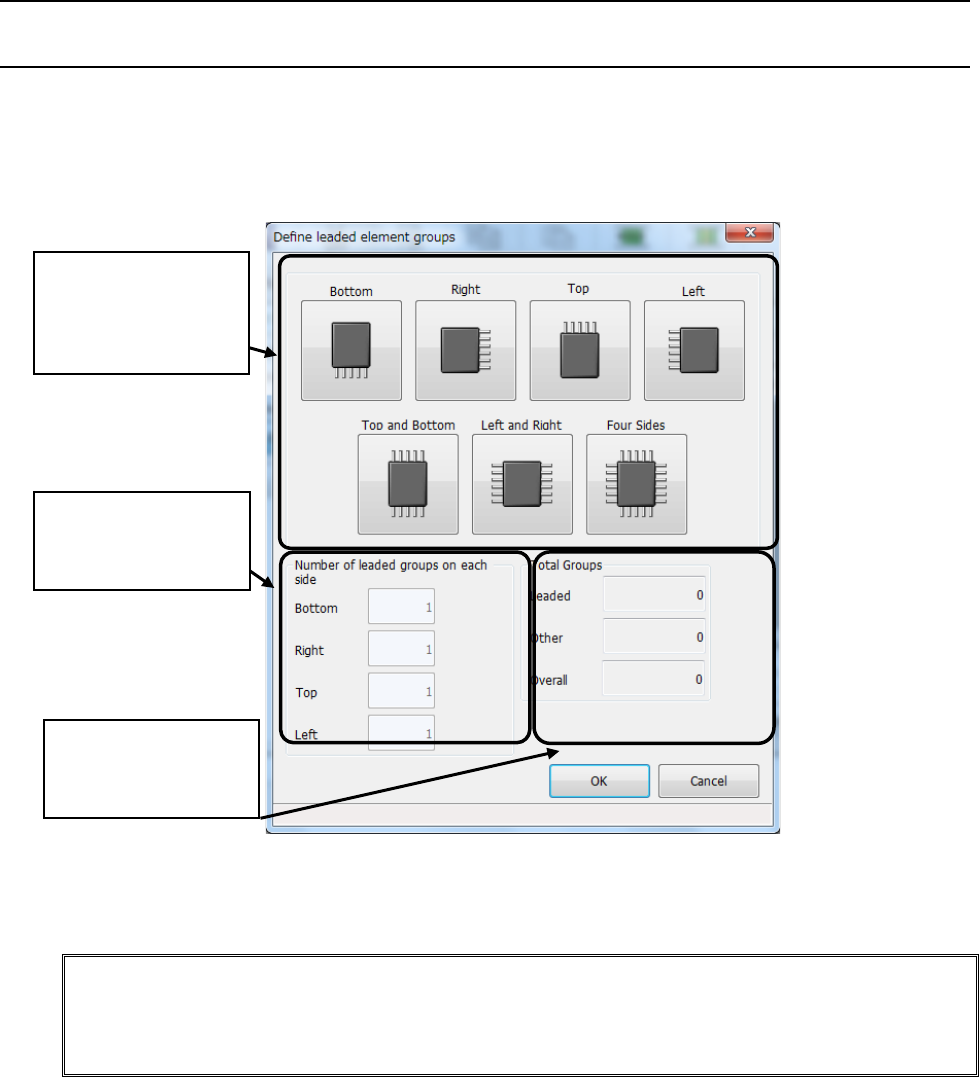

6.4.3.1 Description of the “Define leaded element groups” screen
When you select “Lead component group” on the “Element Data” screen, the following “Define
leaded element groups” screen appears.
After specifying the template whose shape is the same as that of a component, enter the
number of element groups in the “Number of leaded groups on each side” fields.
After entering data, click the <OK> button.
Note: If you quit the “Define leaded element groups” screen after defining element groups and
clicking the <OK> button, the system will not display this screen even though you click
the <Simple Input> button the next time.
To add an element group, do it on the “Simple Input for Leaded Component” dialog box.
③ Total number of
element groups is
displayed here
② Enter the number
of lead groups on
each side.
① Select a template.
(Seven types of
templates are
available.)
Part 2 Detailed Description of Each Function Chapter 6 General-Purpose Vision Component
6-22

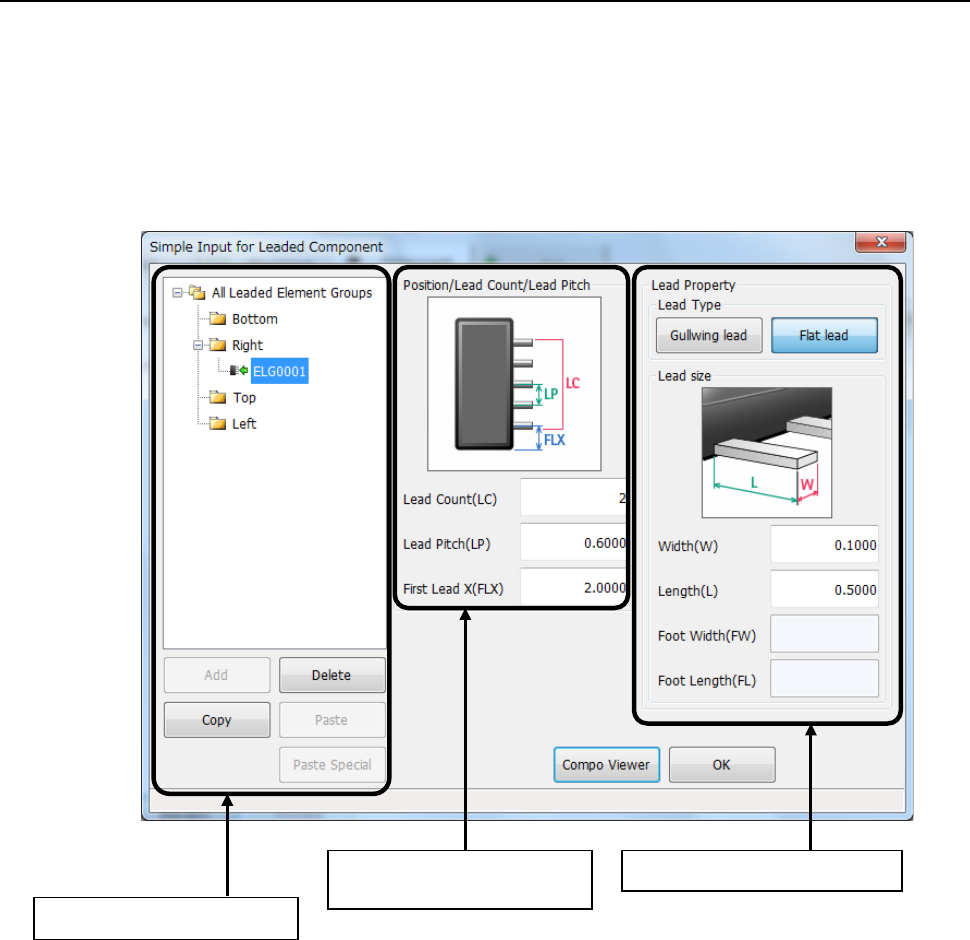

6.4.3.2 “Simple Input for Leaded Component” dialog box
When you touch the <OK> button on the “Define leaded element groups” screen, the “Simple
Input for Leaded Component” dialog box appears on the screen that allows you to enter or edit
data on a lead element group. This dialog box allows you to add, copy, paste and/or delete an
element group also.
The “Simple Input for Leaded Component” dialog box consists of three menu item groups: “All
Leaded Element Groups” list, “Position/Lead Count/Lead Pitch” and “Lead Property.”
“All Leaded Element Groups” list
“Lead Property” menu item group “Position/Lead Count/Lead
Pitch” menu item group
Part 2 Detailed Description of Each Function Chapter 6 General-Purpose Vision Component
6-23

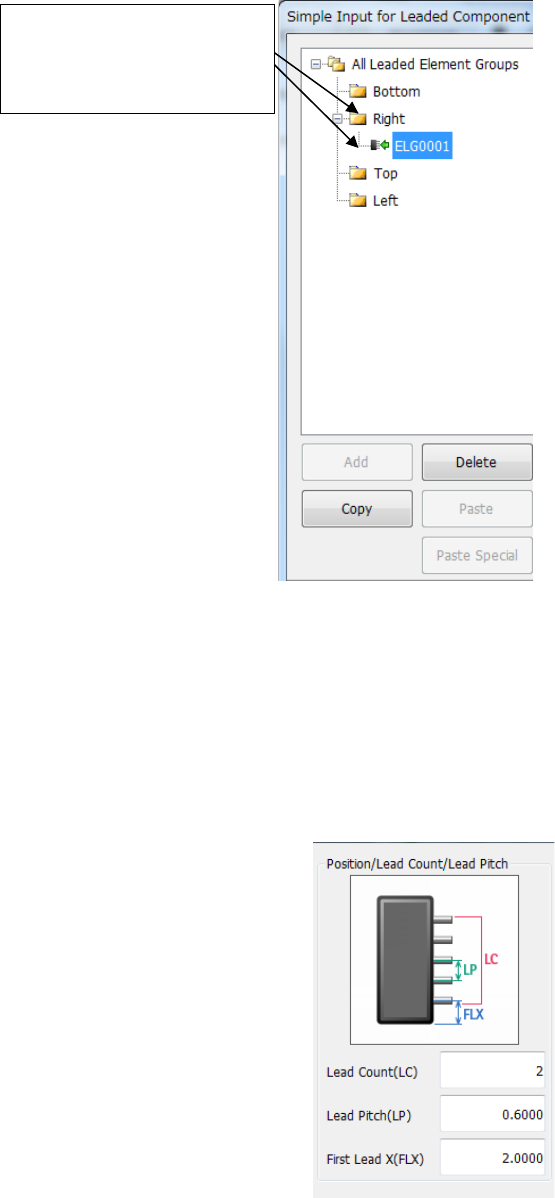

(1) “All Leaded Element Groups” list
You can perform an operation similar with that of Windows Explorer on the “All Leaded
Element Groups” list.
(2) Position/Lead Count/Lead Pitch
• Lead Count (LC) : Number of leads in the group
• Lead Pitch (LP) : Distance from the center of one lead to that of the next lead
• First Lead X (FLX) : Distance from a corner (in the farthest outer region) to the first
element
When you click [+], [+]
changes to [-] and the defined
element groups are displayed
at the lead positions.
