Part 2 Detailed Description of Each Function Chapter 11 Self-diagnosis Function
11-23

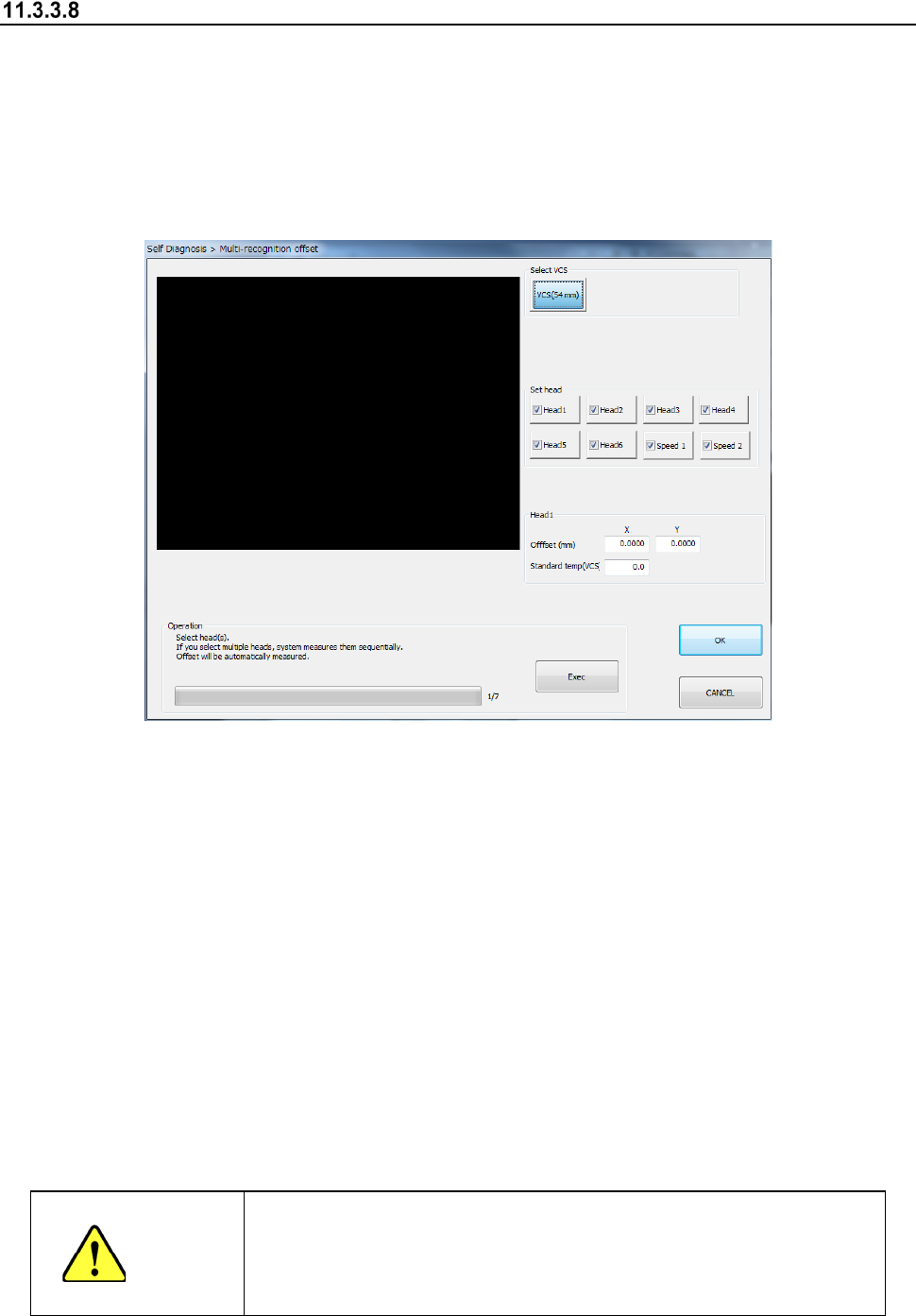

Multi-recognition offset
When you select the [Multi-recognition offset] command from the “Self Check” menu, the “VCS
multi-recognition offset” dialog box appears on the screen.
This screen allows you to set an offset value viewed from the designed position at the time of
multi-recognition.
Reset an offset value if a component is placed at a position shifted from the regulated position only
at the time of multi-recognition
A bare chip is used to set a multi-recognition offset.
(1) Select VCS
Only “VCS (54 mm)” can be specified for this menu item.
(2) Head nozzle selection
Select a head to be measured with the corresponding check box.
You can select two or more heads to be measured at the same time.
Make selections in the group of heads 1 through 4 and that of heads 5 through 8.
(3) Assembling position
The values saved with the MS Parameter and the set results are displayed here.
(4) Operation
1) Progress bar
The progress of measurement is displayed with this bar. When measurement finishes,
it indicates “100 %.”
2) <Exec> button
When you press the <Exec> button, each head unit moves to the waiting position to
start measurement. See the following subsection “How to set” for details.
WARNING
When you press the <Exec> button, the axes start moving.
Before pressing the <Exec> button, be sure to check to see if there is
no one who is operating inside the machine. To prevent injuries, do
not put a hand inside the machine or close your face or head to the
machine while the machine is operating.
Part 2 Detailed Description of Each Function Chapter 11 Self-diagnosis Function
11-24
11.3.3.8.1 How to set
Perform the operation as instructed in the “Operation” column while holding down the <Exec>
button. The machine automatically obtains the values.
Operations to be performed until you finish making the required settings are described below.
(1) Nozzle allocation
Attach the No. 7506 nozzle onto the head you set.
(2) Preparation of a jig
Place a jig on the center frame of the bare station.
(3) Absorption of a jig
The machine absorbs a jig from the bare station. If an error occurs, set the jig again.
(4) Movement of the set head
Move the set head to the recognition position of the VCS camera you have set.
(5) Recognition of the jig with a VCS
The machine recognizes the jig position with the VCS to measure the center position of the jig.
(6) Returning of a jig
The machine returns the jig to the station.
When the machine finishes measurement, the progress bar indicates “100 %.”
To repeat measurement, select the <Exec> button. When you select the <Exec> button, the
previous screen reappears.
When you press the <OK> button, the measured values become valid, but are not saved or set yet
at this point.
These values are actually set when you quit the application. See Section 11.3.3.4.2 “Saving the
settings and quitting the screen” for details.
When you press the <CANCEL> button, the measured values become invalid.
Part 2 Detailed Description of Each Function Chapter 11 Self-diagnosis Function
11-25

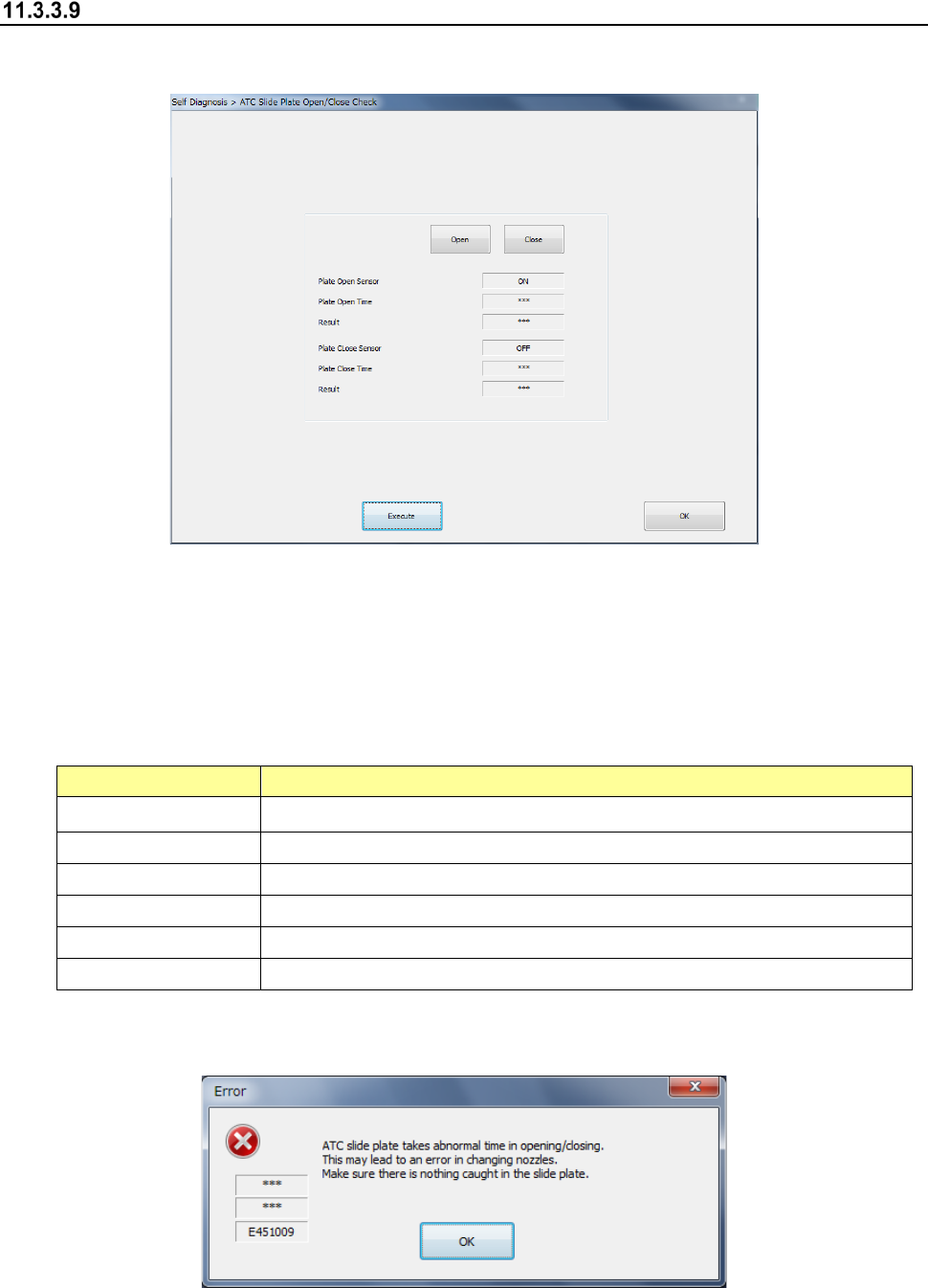

ATC slide plate open/close check
When you select [ATC slide plate] in the self-diagnosis menu, the ATC slide plate open/close
check dialog appears.
When you press the <Open> button, the ATC slide plate of the corresponding bank is opened.
When you press the <Close> button, the ATC slide plate of the corresponding bank is closed.
The dialog box is closed by <OK>.
Specify a bank to be checked and press <Exec>, and an ATC slide plate open/close check is
executed.
Item
Description
Plate open sensor Sensor status when the ATC slide plate is opened
Plate open time Time required to open the ATC slide plate
Check result It is displayed as OK or error whether the plate open time is appropriate.
Plate close sensor Sensor status when the ATC slide plate is closed.
Plate close time Time required to close the ATC slide plate
Check result It is displayed as OK or error whether the plate close time is appropriate.
When an ATC slide plate open/close error occurs, the following message is output.
