Part 2 Detailed Description of Each Function Chapter 11 Self-diagnosis Function
11-17
Vacuum calibration
When you select [Vacuum] in the self-diagnosis menu, the vacuum calibration dialog appears.
(1) Setting items
No. Item Description
1
Attainable vacuum
pressure
Maximum attainable vacuum pressure caught by each pressure
sensor on the head side and vacuum calibration side
2 Vacuum attainable time
Vacuum attainable time caught by each pressure sensor on the
head side and vacuum calibration side
3 Vacuum starting time
Vacuum starting time caught by each pressure sensor on the head
side and vacuum calibration side
4
Time when starting
natural break
Time required for the vacuum value to reach the pick vacuum
threshold value from the vacuum solenoid valve OFF status in
each pressure sensor on the head side and vacuum calibration
time
5 Natural breaking time
Time required for the vacuum value to reach the natural breaking
time from the vacuum solenoid valve OFF status in each pressure
sensor on the head side and vacuum calibration side
6
Positive pressure
plugging time
Time required for the vacuum value to transfer to the positive
pressure exceeding the open air pressure from the blow solenoid
valve ON status in the head-side pressure sensor.
Part 2 Detailed Description of Each Function Chapter 11 Self-diagnosis Function
11-18
(2) Setting method
1) Head selection
The default is “F-continuous measurement”/”R-continuous measurement”, being a status
where no head can be selected. However, if you remove the check mark from
“F-continuous measurement” or “R-continuous measurement” or remove the check mark of
continuous measurement by Select device, a head can be selected.
After selecting a device to be measured, select a head for measurement in the check box
provide in the setting head group. You can select multiple heads to be measured at a time.
(However, it is impossible to select a unit for which “No use” is set in “Device enable” in
Machine setup.)
2) Operation
A value can be obtained automatically by performing operations as instructed.
(3) Measurement sequence
The set head is moved onto the vacuum calibration and the attained vacuum status is
measured 3 times.
- The mean values between the 2
nd
and 3
rd
measurements are displayed.

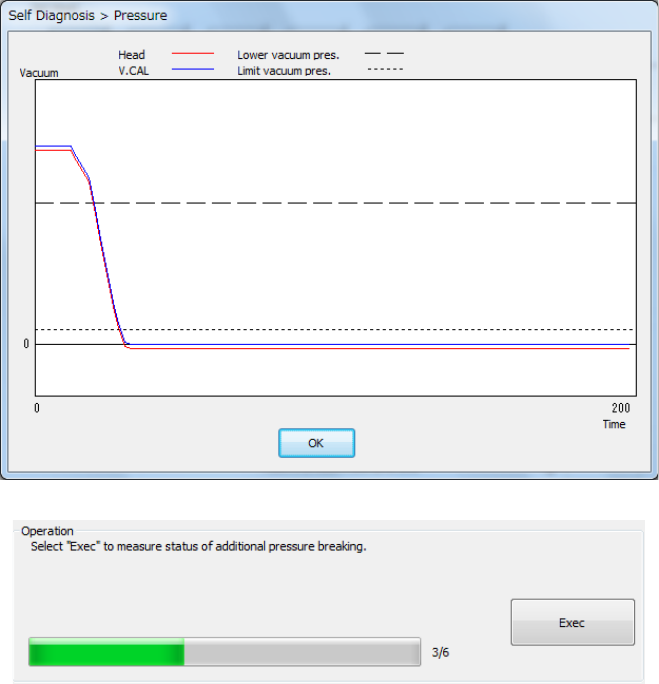

- The graph of the pressure value displayed after measurement shows the data of the 3
rd
measurement.
- Press <Exec>.
Part 2 Detailed Description of Each Function Chapter 11 Self-diagnosis Function
11-19
The set head is moved onto the vacuum calibration and the attained vacuum status is
measured 3 times.
The set head is moved onto the vacuum calibration and the natural break status is measured 3
times.
- The mean values between the 2nd and 3rd measurements are displayed.
- The graph of the pressure value displayed after measurement shows the data of the 3rd
measurement.
- Press <Exec>.
