Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-107

12.14.10 Overview of a coplanarity check operation

Operation of the axes on the sensor performed when a coplanarity check is run is described below.

12.14.10.1 Calculation

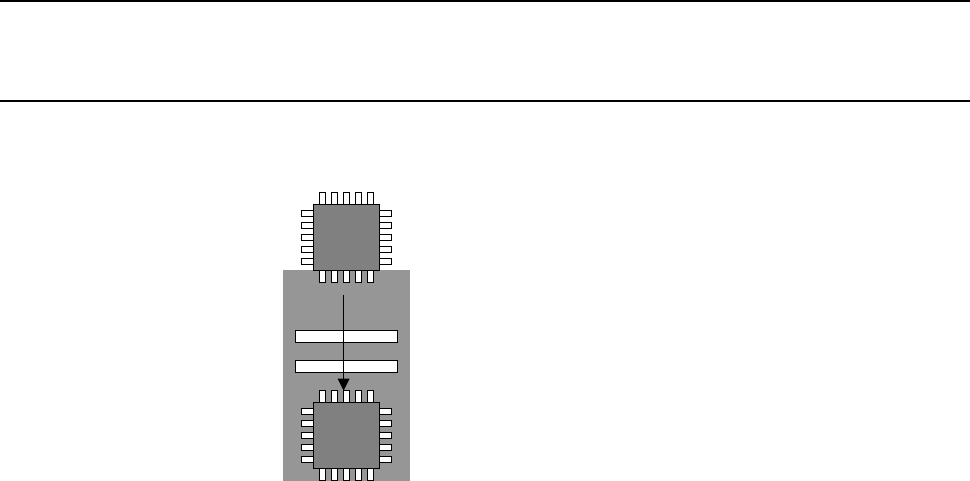

The sensor “scans a component in one direction, and then measures” the coplanarity.

Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-108

12.15 Tape set unit (applicable in and after Rev. D)

This is a stand to install the tape reel on the tape feeder. In and after Rev. D, the front side is

standard and the rear side is option. This is a fold-type stand that can be installed on the main unit

cover. Unlike the optional tape reel stand, electric power is supplied from the main unit of the

system.

12.15.1 Specifications

Number of settable feeders

14 (calculated for RF08AS)

Number of feeders to which

power can be supplied

Target feeder

RF series electric feeder.

12.15.2 Operating method

(1) Open the folded tape set unit and strike the end of the housed stand against the rubber part of

the main unit cover. In this status, fix it.

(2) Holding the grip of the tape feeder by hand and supporting the lower part of the feeder with

the other hand, insert the slide rail of the RF series electric feeder into the guide rail.

Strike the end of the stand.

Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices

12-109

(3) Operate the lock release lever of the feeder and clamp the feeder in the position where the

guide pin strikes against the positioning plate. To supply electric power, mount the feeder on

the left-end lane.

(4) Set a tape on the RF series electric feeder. (Refer to the Instruction Manual of each RF

series Electric tape feeder for how to set a tape onto it.)

CAUTION

When opening or storing a tape set unit, be careful to prevent a hand

from being caught between the movable parts.

If you work around the machine when the tape set unit is used, be

careful not to hit your head or hand on the machine.

Guide rail

Slide rail

Guide pin

Positioning

plate
