Part 1 Basic Operation Chapter 4 Creating a Production Program

4-266

⑪ Superimpose screen

For component pickup, return or discard, image shot with the OCC camera is displayed. At

execution of teaching, image shot with the VCS camera is displayed.

During teaching, the cursor and recognition result are displayed.

• Cursor moving method (touch panel)

When you push a position on the screen while the cursor is displayed, the cursor

can be moved in one of eight directions.

(Characters in red are not displayed on the screen actually.)

Upper

Upper right

Uppe

Lef

Right

Bottom left

Bottom right

Bottom

Part 1 Basic Operation Chapter 4 Creating a Production Program

4-267

To abort teaching forcibly, press the <STOP> button. The following message appears on

the screen. Select whether to finish measurement or not.

When a component is picked up manually, the message that prompts you to pick it up

appears on the screen.

When a component is picked up with your hands successfully, the following dialog box

appears on the screen.

Part 1 Basic Operation Chapter 4 Creating a Production Program

4-268

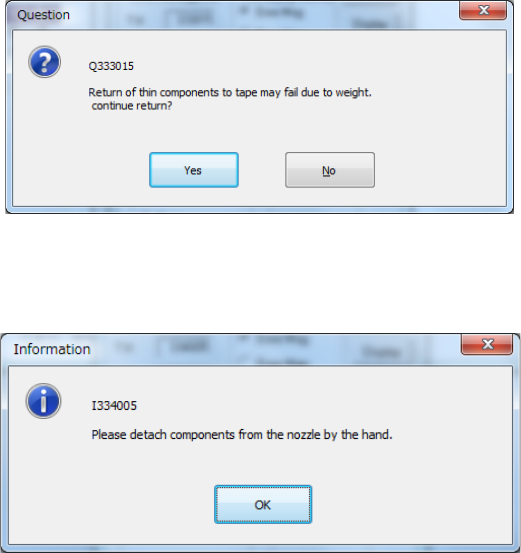

How to return a component varies depending on the packaging style of a component.

When the size of a component is 1 mm or less, the system displays the message that allows

you to select whether to return it or discard it after measuring it.

When a component is returned manually, the following message appears on the screen.

Remove the component from the nozzle manually
