Part 1 Basic Operation Chapter 4 Creating a Production Program
4-165
4.5.2 Toolbar

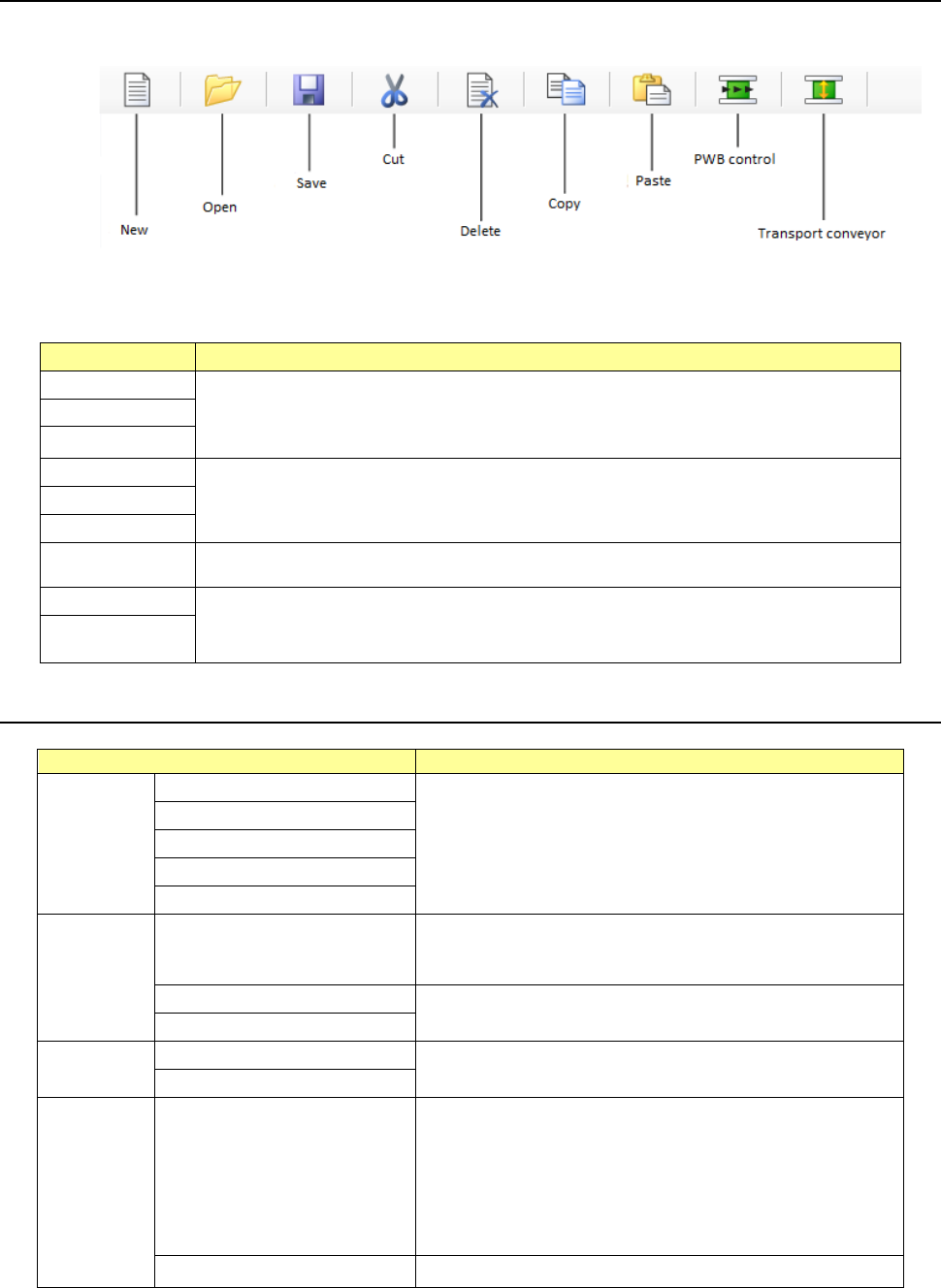

The toolbar displayed on the upper section of the Program Editor screen is shown below.
A button whose corresponding function cannot be used on the displayed screen is dimmed.
Item
Whether the tool can be used or not
New
These tools can be always used.
Open
Save
Cut
These tools can be selected only when the corresponding commands of the “Edit” menu
can be used.
Copy
Paste
Delete
This tool can be used on the “List” screen, the “Area Mark” screen and the “Area Bad
Mark” screen of the “Placement” data.
PWB control
These tools can be always used.
Transport
conveyor
4.5.2.1 Cut
Screen
Function
PWB data
Basic setting screen
This command cannot be used.
Dimension setup screen
Circuit Layout screen
Ex. Bad Mark screen
PWB Conveyor screen
Placement
data
List screen
This command cuts the selected record.
The cut record is stored in the memory buffer, and you can
use the [Paste] command or the [Paste Matrix] command to
paste it.
Area mark screen
This command cannot be used.
Area Bad Mark screen
Componen
t data
List screen
This command cannot be used.
Form screen
Pick data
List screen
This command cuts the selected record.
This command can be used only if there are two or more
Pick data records for the same component, and the focus is
located in one of these records. Otherwise, this menu
command is dimmed.
There has to be at least one Pick data record for one
Component data record on the list.
The cut record is stored in the memory buffer, and you can
paste it with the [Paste] command.
Form screen
This command cannot be used.
If you used the sort function, you cannot select the [Cut] command.
Part 1 Basic Operation Chapter 4 Creating a Production Program
4-166
4.5.2.2 Delete
Screen
Function
PWB
data
Basic setting screen This command cannot be used.
Dimension setup screen
This command can be executed only when the cursor is located in
one of the following fields: “PWB dimensions,” “Circuit
dimensions,” “First circuit position,” Circuit divide No.,” “Circuit pitch,”
“BOC mark position No. 1” to “BOC mark position No. 3” and “Bad
mark position.”
Regardless of which field the cursor is located in, the “X” field or the
“Y” field, values entered in both of these fields are deleted when you
execute this command to delete data described above.
If the PWB data becomes incomplete due to the cut operation, you
cannot move to the “Placement” data screen, the “Component” data
screen or the “Pick” data screen. However, data entered on these
screens are not deleted, and when you create the PWB data
completely, they are displayed again.
Circuit Layout screen
This command deletes the selected record.
You cannot paste the deleted data. (The deleted data is not stored
in the memory buffer.)
Ex. Bad Mark screen
PWB Conveyor screen
This command can be used only when the cursor is located in one of
the following fields: “Ready In delay setting,” “Sensor delay,” “IN,”
“IN-STOP,” “OUT-STOP,” “OUT,” “Stop position correction (First
time),” “Stop position correction (Second time),” “Long-sized board
divide position,” “Default back height,” “Support table overstroke”
and “Support table overstroke (Ceramic).”
When you delete the data set in one of these fields, the initial value
is set for the corresponding field again.
Placeme
nt data
List screen
This command deletes the selected record.
You cannot paste the deleted data. (The deleted data is not stored
in the memory buffer.)
This command deletes a Placement data record only. It deletes a
Component data record linked to the deleted Placement data record
(as long as it does not refer to another Component data record).
Area mark screen
This command can delete data only when the corresponding mark
group is not used in Line Selection mode.
When a cell is selected, this command deletes also the coordinates
and data entered in the “TI” column both of which are related to the
cell where the focus is located.
In either case, you cannot paste the deleted data.
Area Bad Mark screen
Compone
nt data
List screen
You can delete only Component data not used to place a component
in Line Selection mode.
Form screen
This command cannot be used.
Pick data
List screen
This command can be used only if there are two or more Pick data
records for the same component, and the focus is located in one of
these records.
Otherwise, this menu command is dimmed.
There is always at least one Pick data record for one Component data
record on the list.
You cannot paste the deleted data with the [Paste] command. (It is not
stored in the memory buffer.)
Form screen
This command cannot be used.
If you used the sort function, you cannot select the [Delete] command.
Part 1 Basic Operation Chapter 4 Creating a Production Program
4-167
4.5.2.3 Copy
This command stores data whose range is selected and highlighted into the memory buffer.
To paste the stored data in another data, use the [Paste] command.
Screen
Function
PWB
data
Basic setting screen
This command cannot be used.
Dimension setup screen
Circuit Layout screen
Ex. Bad Mark screen
PWB Conveyor screen
Placeme
nt data
List screen
This command copies a record in which the focus is located
into the memory buffer.
You can paste the copied record with the [Paste] command.
Area mark screen
You cannot use this command in Browse mode.
This command copies the entire mark group in Line Selection
mode.
You can paste the copied data with the [Paste] command.
Area Bad Mark screen
You cannot use this command in Browse mode.
This command copies the entire mark group in Line Selection
mode.
You can paste the copied data with the [Paste] command.
Compone
nt data
List screen
This command cannot be used.
Form screen
Pick data
List screen
Form screen
