Part 1 Basic Operation Chapter 5 Database

5-1

Chapter 5 Database

A “database” is used to register and collect component data.

After you register the created component data in the “database,” the system manages the

data by component names.

Once you register component data in the database, you can easily create component data

only by specifying the component name registered in the database when creating a

production program with the Program Editor.

This chapter describes how to use a database mainly.

・ For the operations on a mounter, refer to Chapter 5.1.2.

5.1 Component Database

How to Use a Database 5.1.1

After starting up the Program Editor, use a database to create component data.

(1) If you know a component name

If the name of a component whose data you want to create is registered in the database,

enter the component name on the “Placement” data screen.

The system will register the data created for the component in the production program

that is being created.

Enter the component name here. The corresponding component data is created completely.

(2) If you do not know a component name

Display the database list, and select a component name you are to register from the list

(this is the “CallList” function).

① Click a blank “Component name” field. ② Click the [Database]/[CallList] commands.

Part 1 Basic Operation Chapter 5 Database

5-2

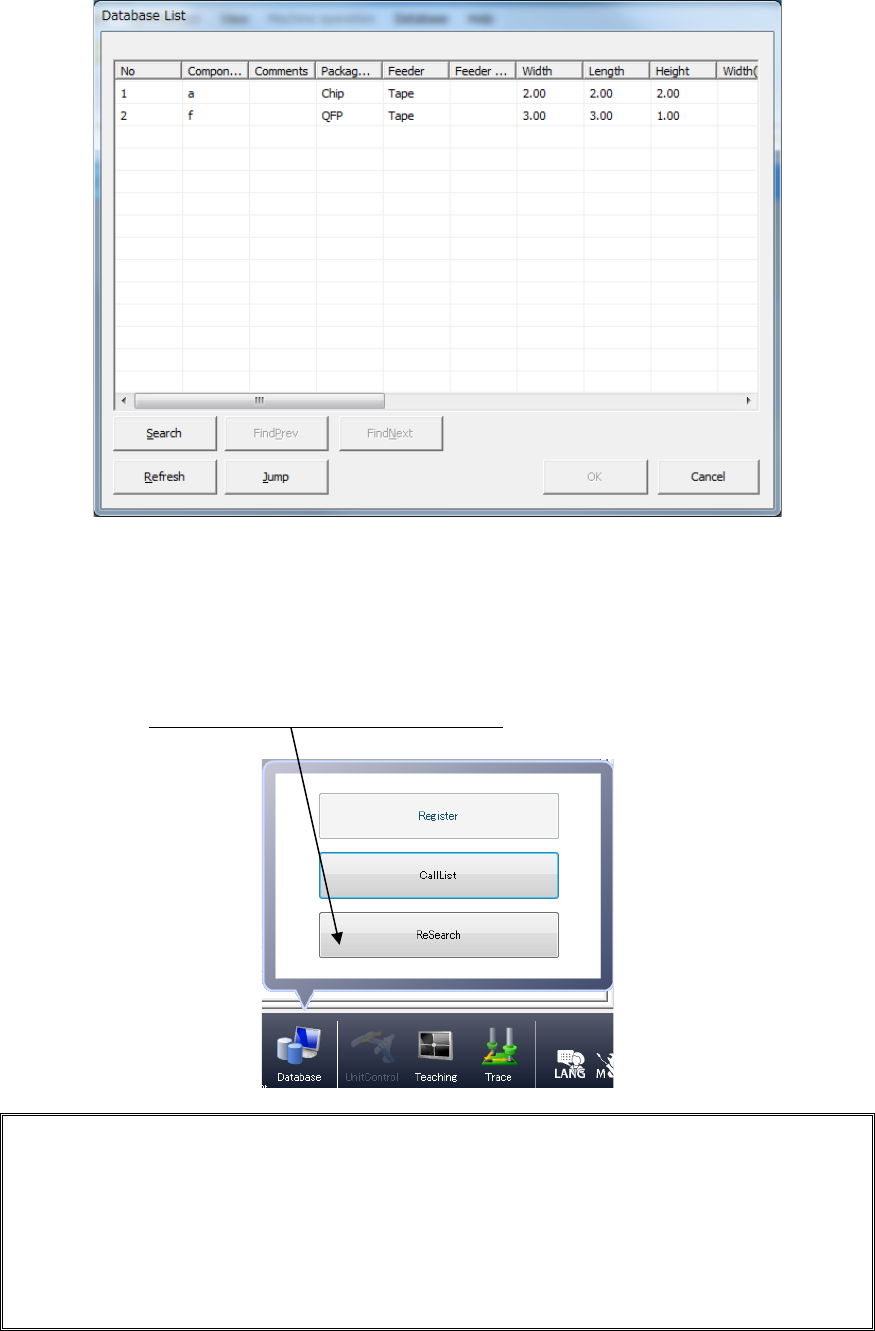

③ The “Database List” appears on the screen. Select the desired component name,

and click the <OK> button.

(3) If the component name has already been registered in the placement data (such as data

converted from CAD data)

If component name(s) registered in the placement data is (are) registered in the

database also, register in the production program all the associated component data

registered in the database by one operation (by using the “ReSearch”* function).

Click the [Database]/[ReSearch] commands.

* ReSearch function:

This function compares a component name registered in a database with that in the

placement data, and invokes the associated component data from the database if it

finds the same component name in both the database and placement data to register

the data in a production program. Once you execute this [ReSearch] command, the

system compares all component names registered in the placement data with those

in the database, and registers (overwrites) the associated component data of a

production program.

Part 1 Basic Operation Chapter 5 Database

5-3

(4) Changing the associated component data only without changing a component name

When you execute the [CallList] command on the “Component” data screen, the system

changes the associated component data only.

① Display the “Component” data screen.

② Select a name of a component whose data is to be changed from the “Component

list.”

③

Click the [Database]/[CallList] commands.

④ Select the name of a component whose data you want to register in the component

data from the component list of the database, and click the <OK> button.
