Save to file
This command outputs data such as production management information, machine operation
information, machine setup state and settings of the operation options to a text file.
(1) Procedure for outputting a text file
① Select the “File” button from the main menu, and then the [Save to file] command.

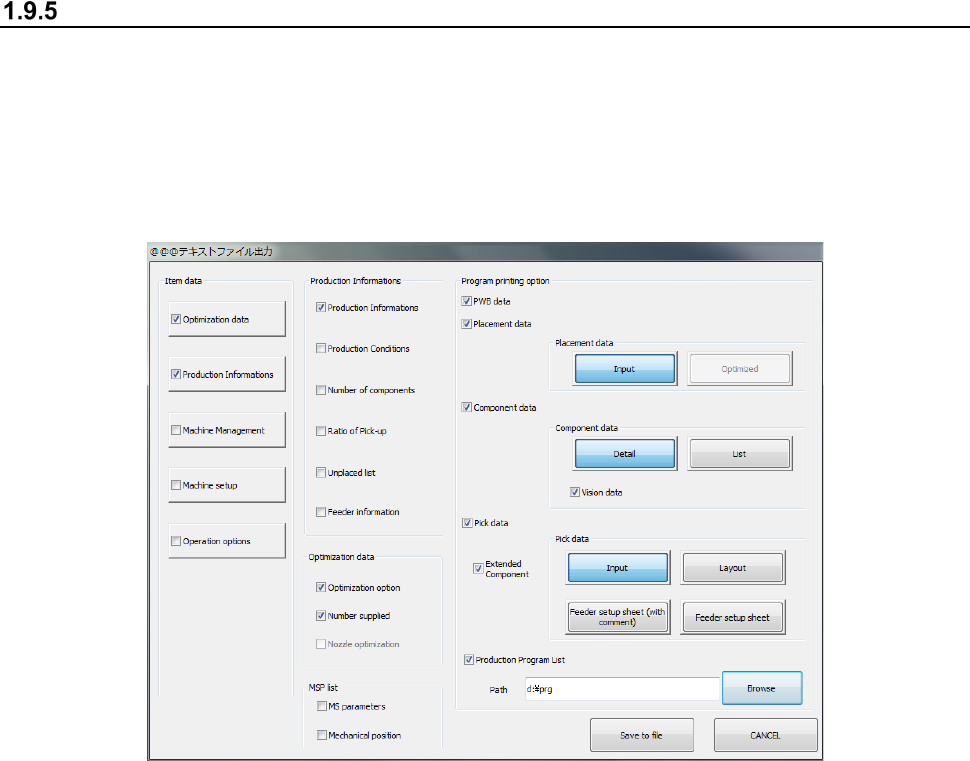

② When the text file output dialog box appears on the screen, check the items to be output to a
text file.
When you press the <Browse> button, the dialog box for selecting a folder appears on the
screen.
Select a folder to be browsed. The path of the selected folder is set.
Part 1 Basic Operation Chapter 1 Overview of the Machine
1-78

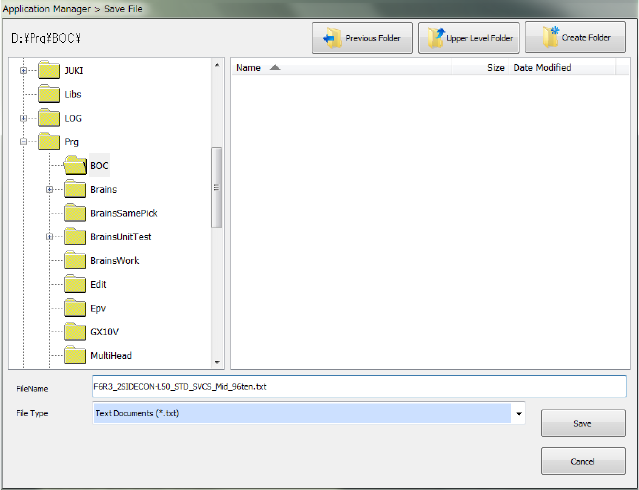

When you set a folder to be browsed in the “Path” field and press the <Save to file> button, the
dialog box for saving a file appears on the screen.
Specify a path and a file name, and then press the <Save> button. The selected item(s) is (are)
output as a text file. When you press the <CANCEL> button, the screen is switched back to the
“Production Program List” dialog box.
Part 1 Basic Operation Chapter 1 Overview of the Machine
1-79
(2) Items output to a text file
No. Item to be output Detailed item Description
1 Optimization data
Optimization option Outputs the list of the optimization options.
Number supplied
Outputs the number of the supplied components
of each type.
Nozzle optimization Outputs the nozzle assignment state.
2
Production
Information
Production Information
Outputs the management information obtained
during PWB production.
Production Conditions Outputs the PWB production conditions.
Number of components Outputs the number of components.
Ratio of Pick-up Outputs each component pick-up ratio.
Unplaced list Outputs of the list of unplaced components..
Feeder information Outputs information on feeders.
3
Machine
Management
Output the operation state of the following
devices:
Machine operation information
Nozzle operation information
Head operation information
Signal light operation information
Mini signal light operation information
OCC operation information
Other unit operation information
Application operation information
4 Machine setup Outputs the information set for each machine.
5 Operation options Outputs the settings of the operation options.
6 PWB data Outputs the PWB data.
7 Placement data
- Input
- Optimized
Outputs the Placement data in the input order or
in the optimized order.
8 Component data
- Detail
- List
Outputs the Component data in the form of
details or in the form of a list.
Vision data Outputs the Vision data.
9 Pick data
Extended Component Outputs a component name.
- Input
-Layout
- Feeder setup sheet (with
comment)
- Feeder setup sheet (without
comment)
Outputs the Pick data in the input order/in the
form of a layout/in the form of the feeder setup
sheet.
You can specify whether to append a comment
to a feeder-setup sheet.
10
Production Program
List
Production Program List
Specifies a production program folder, and then
outputs the list of production programs in the
folder.
To print production program data, start up the Program Editor and
then print it from the displayed menu.
