Part 1 Basic Operation Chapter 4 Creating a Production Program
4-205

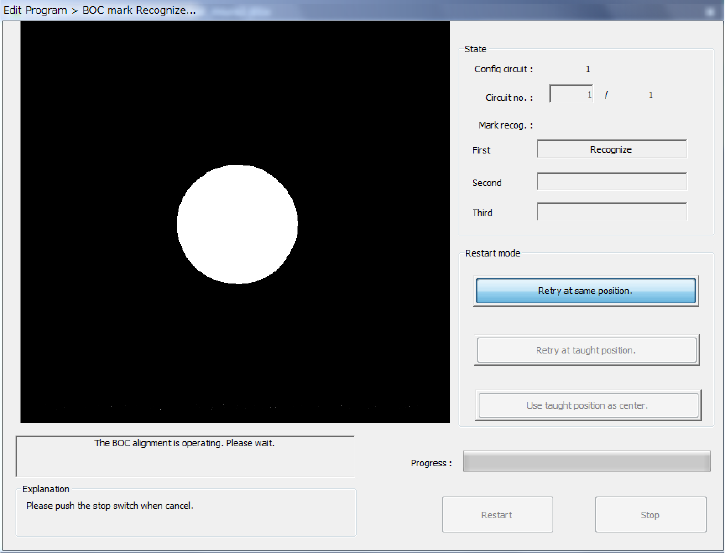

The following dialog box appears on the screen during BOC alignment operation.
The image shot with the OCC appears at the upper left corner of the screen.
To abort the operation for some reason, press the <Stop> button.
After the system stops recognizing a BOC mark, the start screen reappears.
1) State
The system display its operation status here.
• Circuit no
The number of circuit being recognized is displayed here.
(Normally, only a BOC of the reference circuit is recognized.)
• Mark recog.
The system displays the operation condition at the mark point being recognized now.
2) Restart mode

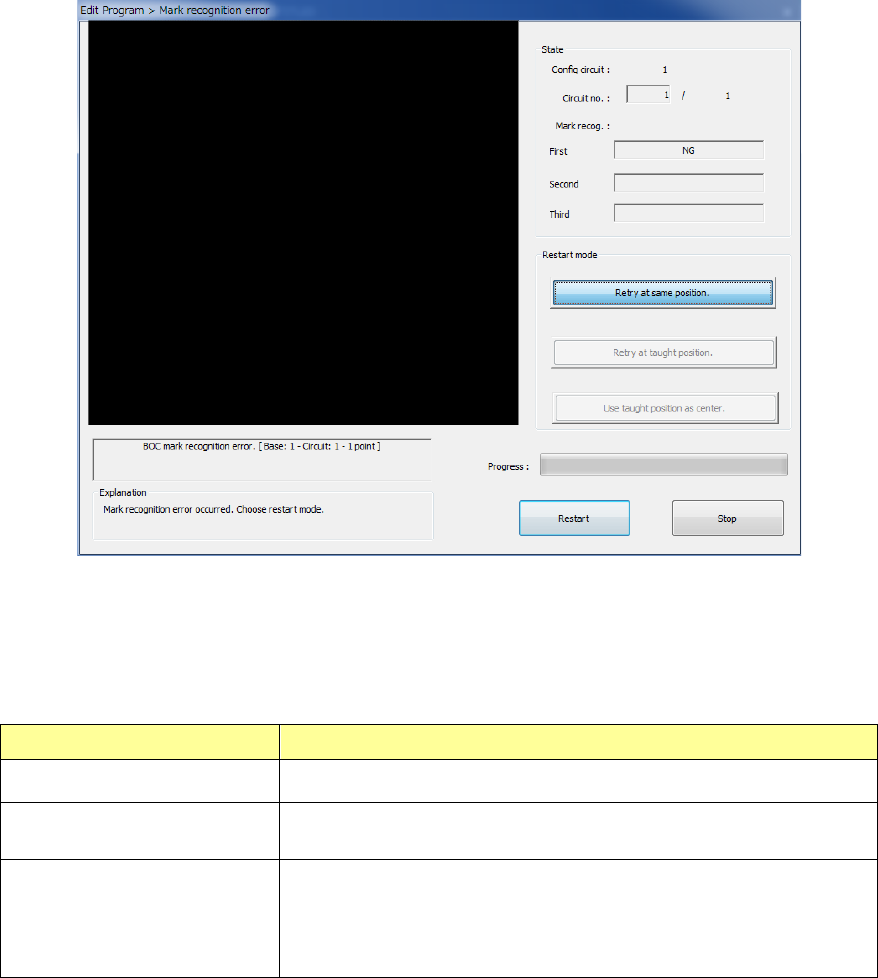

If the system fails to recognize a BOC mark during alignment of a BOC mark, you can select
each button of the “Restart mode” items.
3) Progress
The progress bar displays the ratio of the marks recognized already to the total number of
marks.
Part 1 Basic Operation Chapter 4 Creating a Production Program
4-206
To restart recognizing a BOC mark, select the “Restart mode.”
At this point, you can press the <Teaching> button of the function bar to teach the coordinates.
Until you teach the coordinates, neither the button <Retry at taught position.> nor the button <Use
taught position as center.> can be selected in the “Restart mode” column.
Restart mode Description
Retry at same position. The system recognizes the BOC mark at the current position.
Retry at taught position.
You can select this button only after you teach the coordinates.
The system recognizes a mark at the taught coordinates again.
Use taught position as
center.
You can select this button only after you teach the coordinates.
The system saves the taught position as the coordinates at which
a mark is recognized. The system does not recognize a mark.
To restart the BOC mark recognition operation after selecting one of the above buttons,
button the <Restart> button.
When you press the <Stop> button, the system quits the “BOC mark Recognize” screen, and
then returns to the Program Editor screen.
Part 1 Basic Operation Chapter 4 Creating a Production Program
4-207
4.5.6.2 Area mark
This function allows you to check edited data of a production program.
The system memorizes the measured values of the coordinates at which the system recognized
an area mark, and uses them to correct the coordinates when it teaches the placement data.
CAUTION
To prevent any accident causing injuries, never put your hands or head
inside the machine while the machine is operating.
(1) Recognizing an area mark
Select the [Machine operation] command from the menu bar, and the [Area mark] command from
the “Machine operation” menu. To recognize a mark on the left station, select the [Left] command
from the “Area mark” menu. To recognize a mark on the right station, select the [Right] command
in the same manner. The confirmation screen appears.

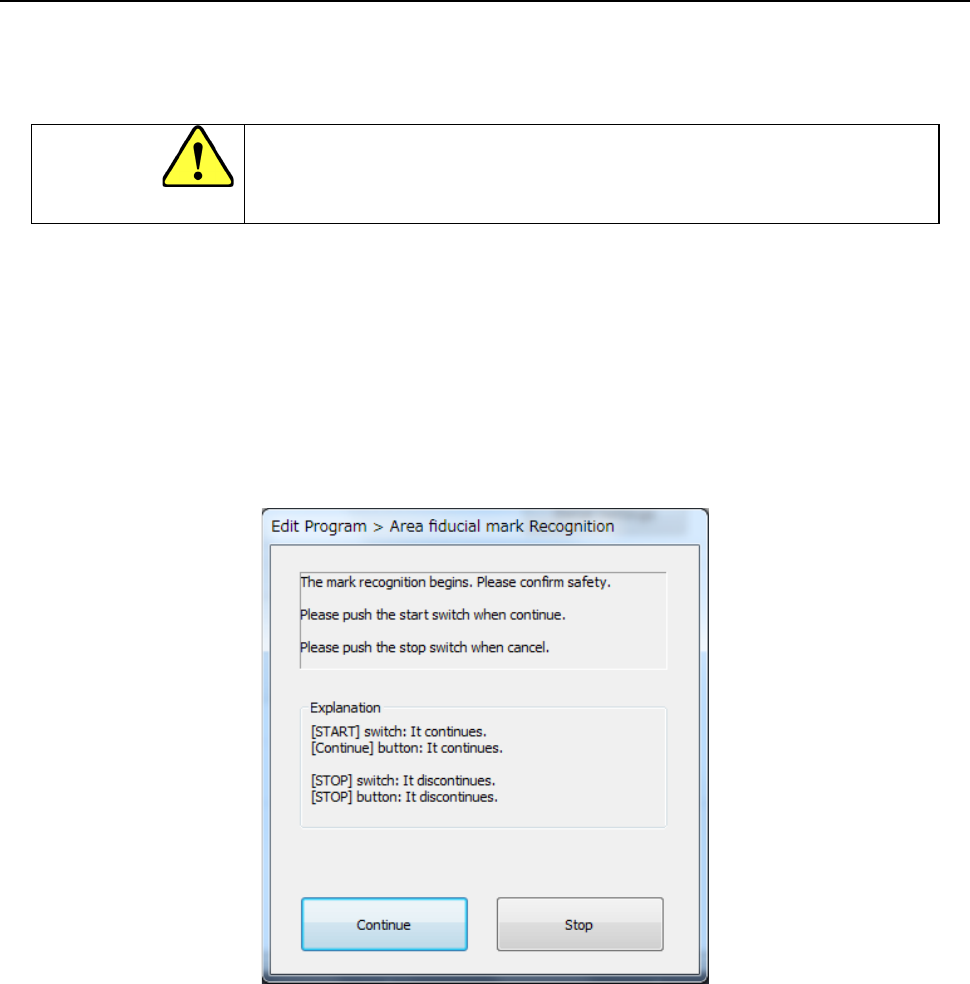

If the safety cover opens at this point, the following message appears on the screen because this
function moves the axis.
Only after checking the safety, press the <START> switch or the <Continue> button.
