Part 1 B asic O peration Chapter 2 Pr oduction 2- 61 2.10 Elec tric feed er check In the electri c feeder ch eck, t he system chec ks whet her or not correc t compon ents are put on the electric feed er set for the curre…
Part 1 Basic Operation Chapter 2 Production
2-60
No.
Menu item
Description
1 Feeder Position
Shows the component supply position.
For a stick feeder, the lane is displayed in parentheses.
2
Comp. Name
Displays the name of a component.
3
Total picked (A)
“Cmp. picked” + “Pick Error”
4
Cmp. picked (B)
Displays the number of components that were picked up successfully.
5
Cmp.placed (C)
Displays the number of components that were placed on boards successfully.
6
Pick Error
Displays how many times the system failed to pick up a component.
7 Pick-up (B/A)
Displays the ratio of successful pick-ups.
“Pick-up” = “Cmp. picked” / (Cmp. picked” + “Pick Error”)
8 Recog. (C/B)
Displays the recognition ratio of components that were picked up successfully.
“Recog.” = “Cmp. placed” / “Cmp. picked”
• Updating the data
♦ During PWB production (while the system is producing a PWB):
Any data is not updated during PWB production. When you press a button, or when you
display the screen again, data is updated.
♦ While PWB production is suspended:
Data is automatically updated.
Managing the production management information
1) <Clear> button
To clear the production management information, select the <Clear> button in the “View”
column.
Or, select the [Program] command from the “Product” menu, and then the [Management Info
is cleared] command.

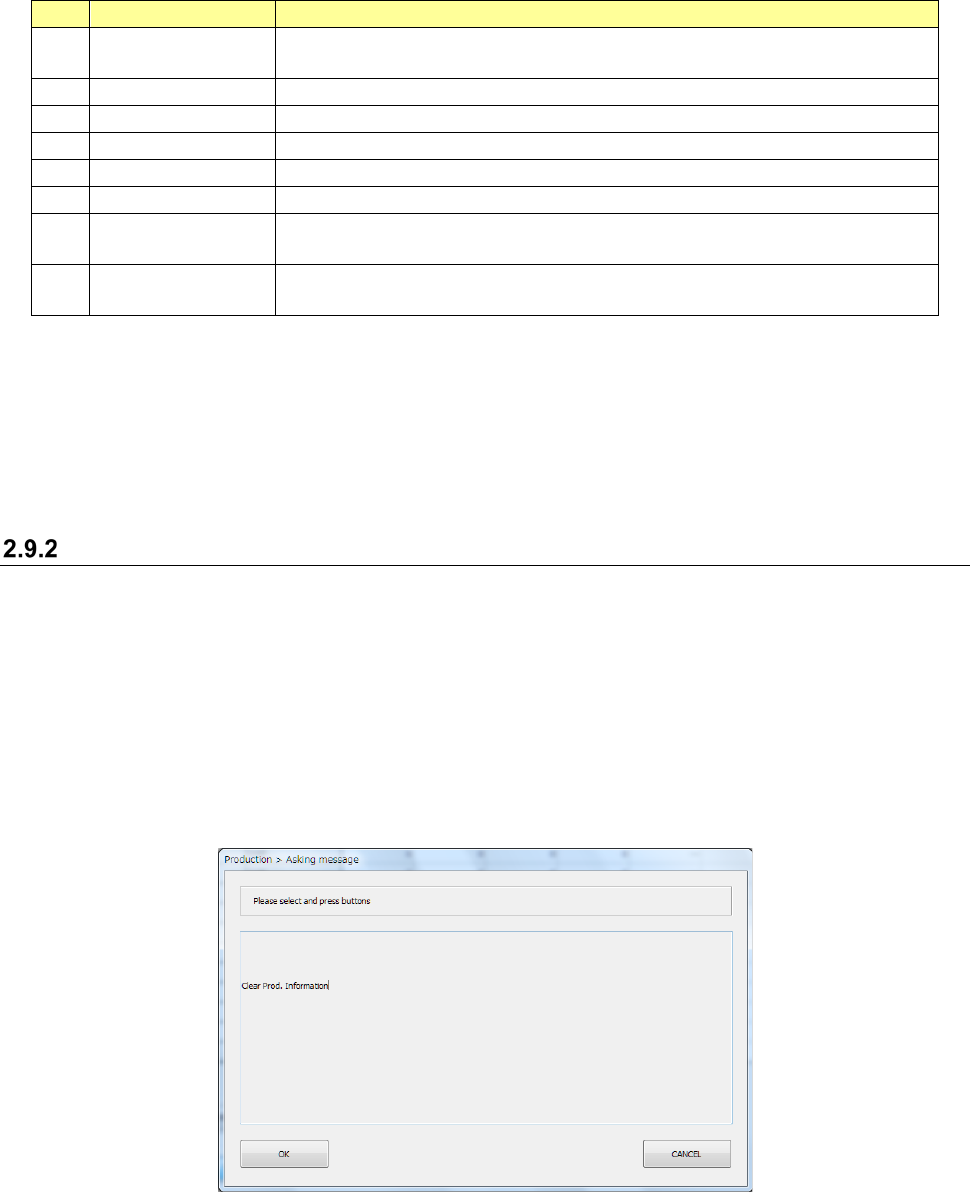

The “Asking message” screen that asks you whether to clear the production conditions
appears.
When you press the <OK> button, the system clears the production management information.
When you press the <CANCEL> button, the system does not clear the production
management information.
2) Saving the production management information
When you execute the [Save] command or the [Save as] command on the “File” menu after
PWB production, you can save the production management information in a file.
When you save a production program in response to the production-quit message displayed
after PWB production, you can the production management information also.
Part 1 Basic Operation Chapter 2 Production
2-61
2.10 Electric feeder check
In the electric feeder check, the system checks whether or not correct components are put on the
electric feeder set for the current production program and displays the check results.

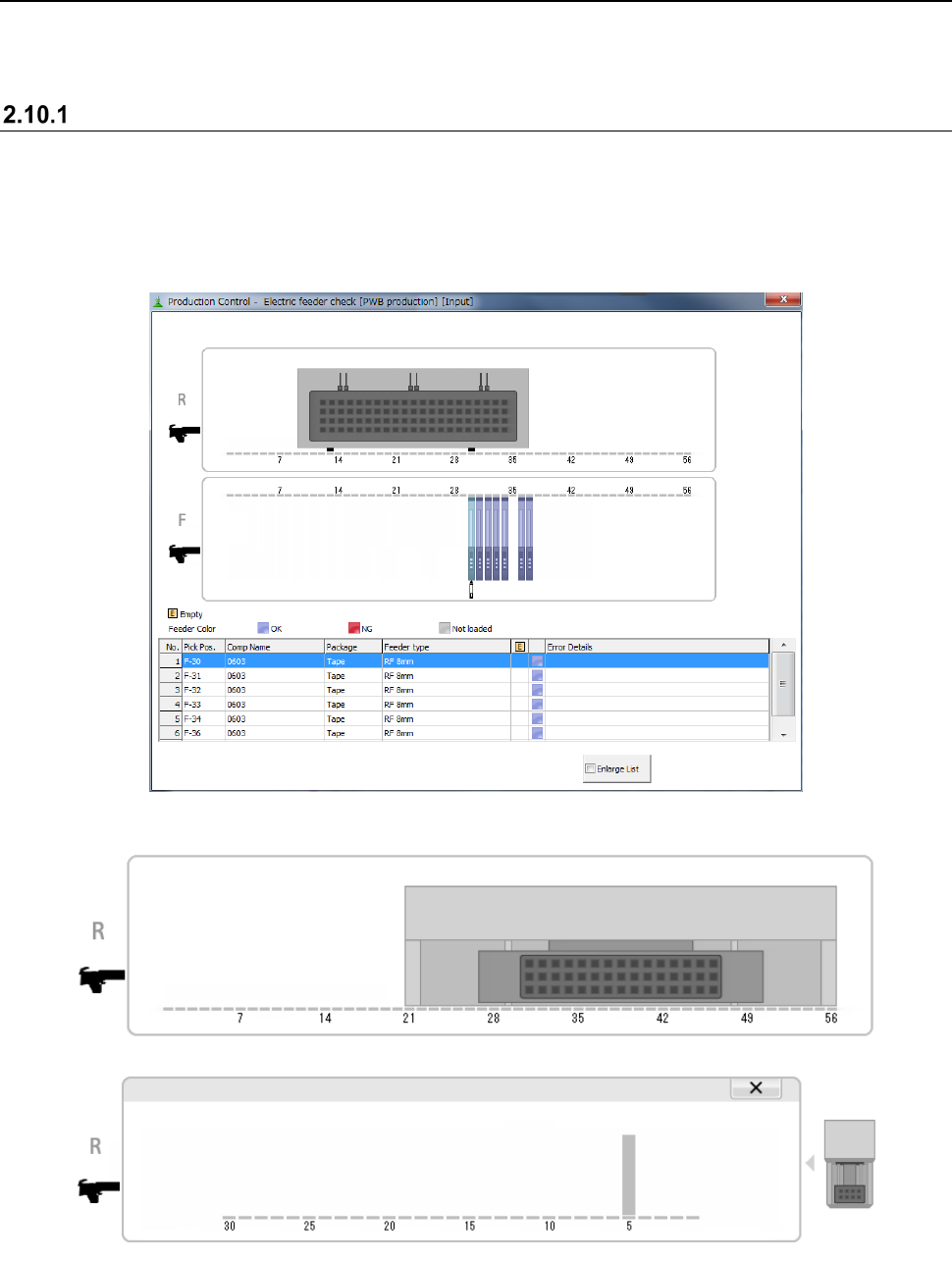

“Electric feeder check” screen
(1) “Electric feeder check” menu
Click the [Window] menu command on the “Product” menu and select the [Electric feeder
check].
(2) Contents
When a TR8SR is used as a component supply device, the TR8SR image is displayed on the
screen as shown below.
When you touch the displayed TR8SR image, the enlarged TR8SR image is displayed.
To return to the original TR8SR image screen, touch “×” or the TR8SR image displayed on the
right side of the screen.
Part 1 Basic Operation Chapter 2 Production
2-62
1) Image view
Using images, the upper half portion of the “Electric feeder check” screen shows the condition
of the feeder used for the current production program.
(Note: A feeder with the skip designation or actually not used for the production as specified
in the production conditions is not displayed on the image view.)
The bank type is displayed as shown in the table below.
Bank status
The production bank matches the connected bank.
The production bank does not match the connected bank.
* If the program does not match the bank, you cannot start production.
Electric feeder-setting mistake conditions are shown in different colors.
Feeder color
Description
EF
RF
Blue
Electric feeder is mounted that all of the component, feeder type, feed pitch,
and other items are correct.
Red
Electric feeder, in which an error occurs, is mounted.
Review the component, feeder type, or feed pitch, etc.
Additionally, if the bank is different from that in the production program or
setup, or mounted actually, the feeder is shown in red.
Gray
Electric feeder, which is set in the production program, but not loaded (i.e. not
connected), is mounted.
Light
blue
A feeder selected on the list is mounted.
When you click the feeder image displayed on the screen to select it, the
corresponding feeder is selected on the list also.
Additionally, if the component run-out condition is notified, the icon is overlap-displayed
on relevant feeder.
Icon
Description
:Component run-out
This icon is overlap-displayed on the feeder, in which the
component run-out occurs.
