Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-38

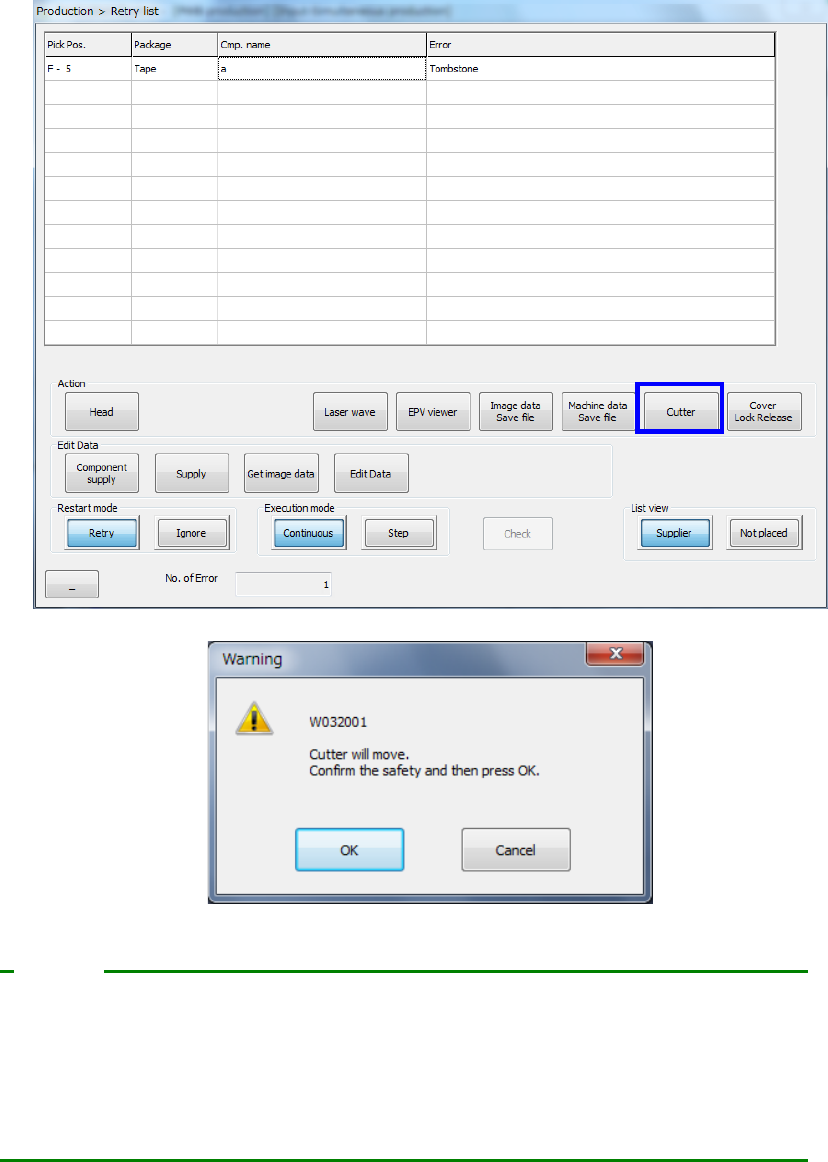

- “Retry list” dialog box
1. Do not open the guide section of the cutter unit with your hand or put your hand
in the cutter unit.
Or you may have your finger cut with the blade of the cutter or the movable part.
2. Do not put any substance on the cutter unit or apply any load to it.
Or the guide or cover of the cutter unit may be deformed, so it may hurt you,
malfunction or generate abnormal noise.
Note
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-39
12.7 Conveyor options and functions
The RS-1/1R supports “a long-sized board,” the function “Change of standby position of a short
substrate” and “ZA-axis operation with the substrate size for 3 buffers” as standard functions.
When you attach a conveyor extension option on this machine, the board size supported with these
functions can be extended.
This Section describes the conveyor extension options and the board transport function.
12.7.1 Conveyor extension options
When you attach a conveyor extension option onto the RS-1/1R, the supported board size is
extended.
The conveyor extension options you can select are shown in the table below.
Note that if you extend the downstream side only, the size of a board the machine can transport is
not changed, but the operation corresponding to the function “ZA-axis operation with the substrate
size for 3 buffers” changes (see Section 12.6.4 “ZA-axis operation with the substrate size for 3
buffers”).
Supported conveyor extension options: maximum X-dimension of a board (unit: mm)
Conveyor extension option
3 buffers
1 buffer (feeds
a board once)
1 buffer (feeds
a board twice)
“ZA-axis operation with
the substrate size for 3
buffers”: “ZA-axis moves
down at OUT ON”
No conveyor extension (standard)
360
650
950
150
Extension of the downstream side by
150 mm
300
Extension of the downstream side by
250 mm
400
Extension of both sides by 150 mm
500
1100
300
Extension of both sides by 250 mm
600
1200
400
* The Y-dimension of a board is fixed to 50 to 370 mm regardless of whether a conveyor
extension option is attached on the machine or not.
* The conveyor extension option is not supported with a machine for an extra-large board.
12.7.2 Support of a long-sized board
12.7.2.1 Supported board sizes
When the machine feeds a board twice, the supported X-dimension of the board can be extended to
up to 950 mm.
This enables production of a long-sized PWB that is to be used in a LED light.
Note that when this option is combined with a conveyor extension option, the machine can support a
board whose dimension is up to 1200 mm.
The maximum size of a board to be fed once according to the corresponding specifications is
referred to as “the regulated size” hereinafter.
Supported long-sized board size: (unit: mm)
Board specifications Direction Minimum size
Maximum size
When fed once When fed twice
Standard specifications
X
50
650
950
Y
50
370
Extension specification for both
sides to 150 mm (option)
X
50
650
1100
Y
50
370
Extension specification for both
sides to 250 mm (option)
X
50
650
1200
Y
50
370
* A longer-sized board is not supported with a machine for an extra-large board.
Part 2 Detailed Description of Each Function Chapter 12 Handling the Optional Devices
12-40
12.7.2.2 Board stop position and component placement area
When the outer X-dimension of a board exceeds the regulated size, the machine cannot place any
component on the board with normal clamping operation.
The machine clamps the board inside the station twice. When the machine clamps the board for
the first time, it stops the board at the stopper position. When clamping it for the second time, it
uses the HMS to detect the edge of the board to stop it. These operations support a board
whose outer X-dimension is up to 950 mm (this value exceeds the regulated size). (When the
conveyor is extended, the machine supports a board whose outer X-dimension is up to 1200 mm.)

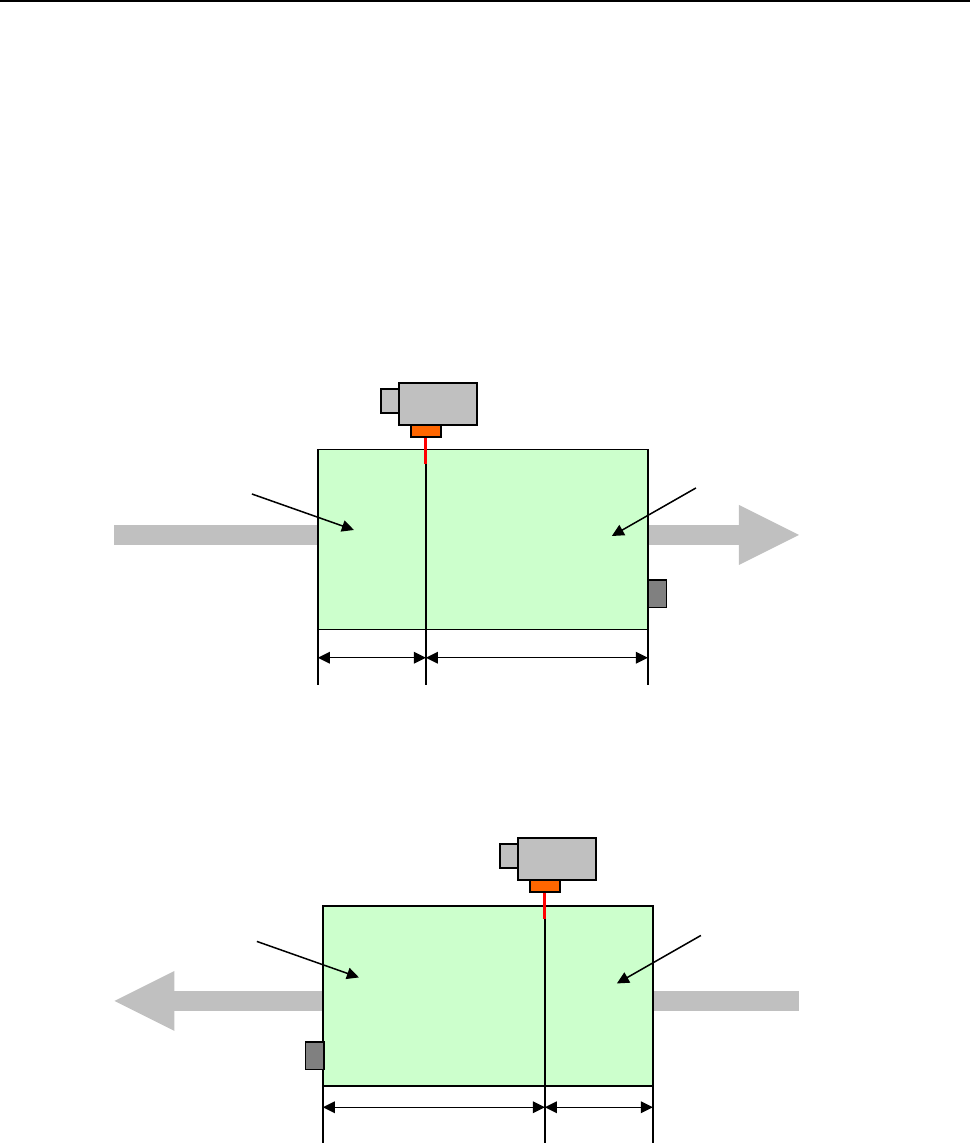

[When a board is transported from left to right]
①: Long-sized board division position (specified with
a production program)
②: “Board size” – “Long-sized board division position”
[When a board is transported from right to left]
Area where a
component is placed
with the first board
clamping operation
①
②
Area where a
component is placed
with the second board
clamping operation
①
②
Area where a
component is placed
with the second board
clamping operation
Area where a
component is placed
with the first board
clamping operation
