R1-2 Isolation

R1-2.1 As mentioned in Section 3.4, the standard RS-

232-C line does not provide isolation between the

grounds of remote equipment and a central computer. It

is often desirable to provide isolation to minimize

communications errors and to protect equipment. The

following example is provided here to illustrate how

such an isolation might be provided between two

devices using RS-232-C, while at the same time

providing the capability to drive longer lines. This

description is provided for information only and is not

part of the standard.

R1-2.2 Figure R1-1 illustrates a possible circuit for

isolation which provides line isolation and line driving

capability. The two wires used to provide power to the

remote isolator are required since any local power

supply would have the same isolation problems as the

data wires. The power wires also eliminate extra

supplies at every terminal or remote device. There are

many other possible circuits. This example has been

used successfully and works quite well at 9600 baud for

lines less than 300 meters and illustrates the use of the

voltages on pins 18 and 25 as mentioned in 3.2.4.

R1-3 Examples of Block Transfer Protocol

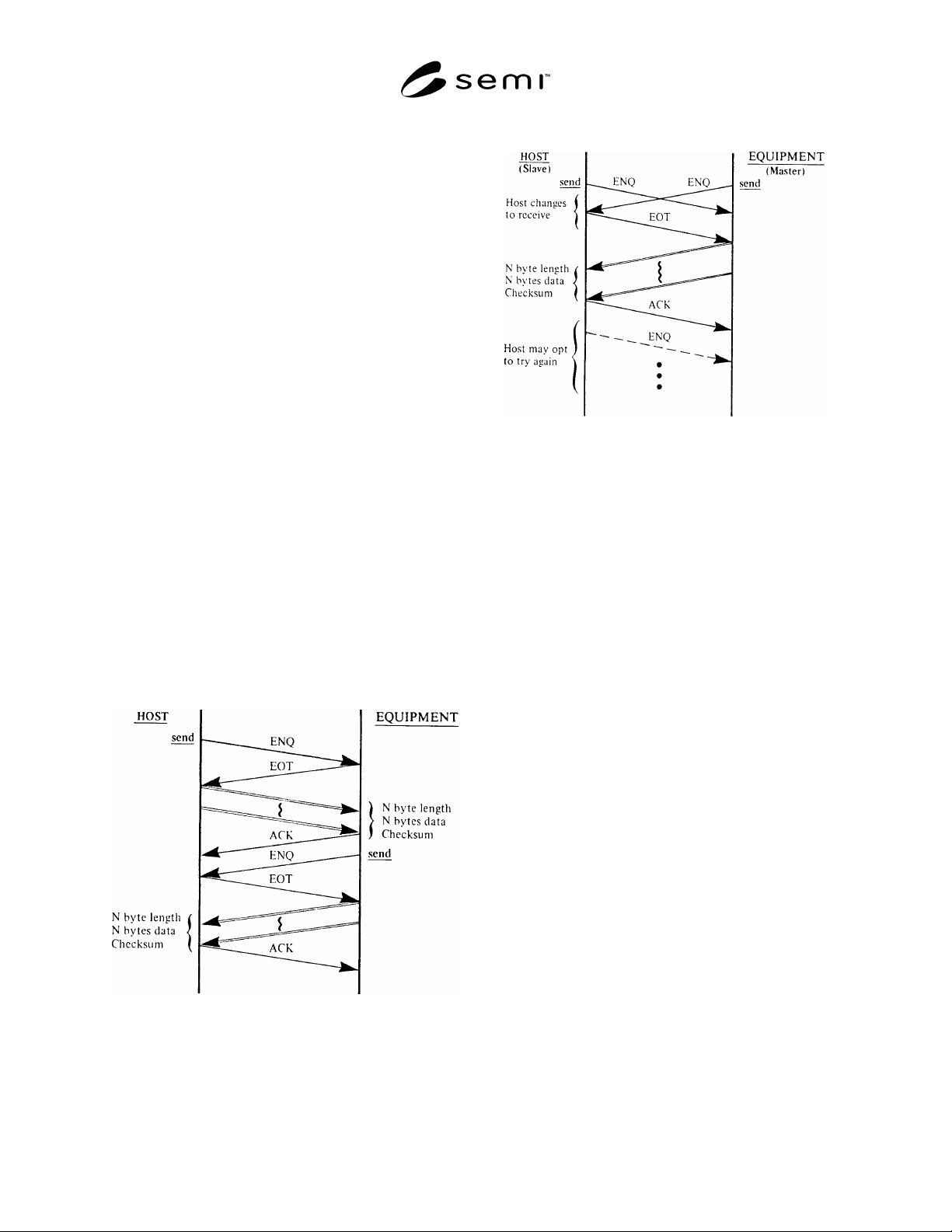

R1-3.1 Figures R1-2 and R1-3 illustrate some simple

message interactions between the host and the

equipment. Figure R1-2 shows the handshake sequence

possible to acquire the status of the equipment. Fig-ure

R1-3 shows the sequence of events when both the host

and the equipment try to send at the same time.

Figure R1-2

Ask for Status

Figure R1-3

Contention Resolution

R1-4 Use of Buffers in the Block Transfer

Protocol

R1-4.1 In the flow chart of the Block Transfer Protocol

(Figure 2), the flow chart entry "LISTEN" implies that

characters are recognized after entering the given state

and not before. If the particular implementation uses

buffers and stores all of the characters received before

the "LISTEN" state is achieved, care must be taken in

the proper handling of the data in the buffer to avoid

problems due to "timing windows" between sending

and receiving.

R1-4.2 If the buffer is cleared before sending the last

character prior to the "LISTEN" (last checksum byte in

sending a message, ENQ or EOT in line control), there

is still a time, albeit small, where spurious characters

could be received into the buffer.

R1-4.2.1 In addition, during the sending of the

message, a delay between the checksum bytes while the

buffer is cleared may cause an inter-character timeout

by the receiver. If the buffer is cleared after the last

character sent before the "LISTEN," there is a

possibility that the desired character will be cleared

from the buffer.

R1-4.3 One solution is to look at the buffer after

entering the "LISTEN" state and examine the last

character in the buffer, if any are there. This works

while listening for an EOT after sending an ENQ. In the

case where the sender is listening for an ACK after

sending the second checksum byte, it is possible that

the receiver also has a block to send, and follows the

SEMI E4-0699 © SEMI 1980, 1999 16

ACK immediately with an ENQ. In this case the last

character in the buffer might be an ENQ, and so the last

two characters should be examined. If an ACK

precedes the ENQ, then it should be assumed that the

block was sent successfully, and the ENQ should be

saved for establishing line control (i.e., send an EOT, or

an ENQ if there is contention).

R1-4.4 The handling of the buffer when listening for

the length byte is not improved by this suggestion. The

buffer should be cleared after the ENQ is received and

before the EOT is sent. Spurious characters received

before the length byte will cause a send failure.

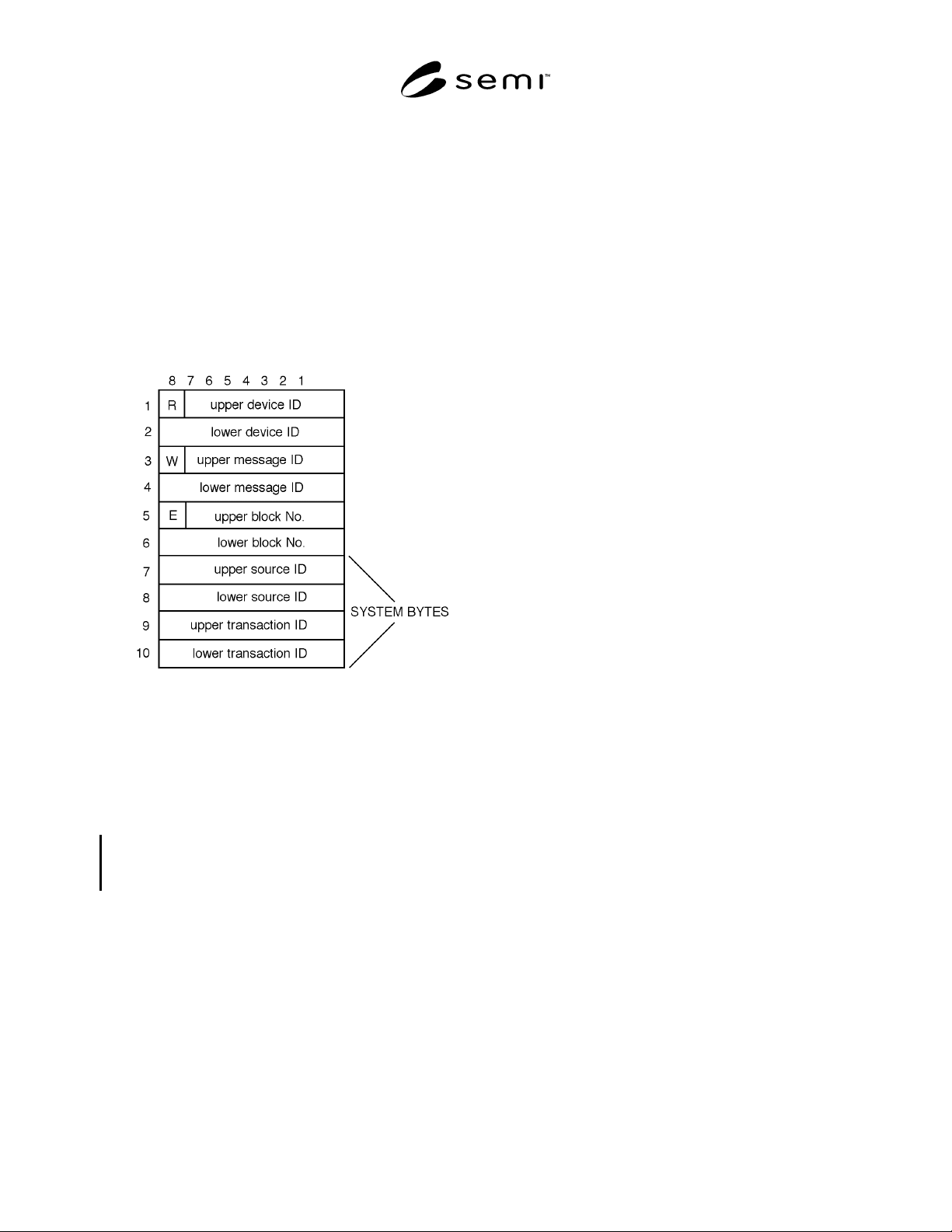

Figure R1-4

Possible Bock Header Structure

R1-5 System Bytes

R1-5.1 This section presents a sample scheme for

generating and managing the system bytes field of the

block header. There are many possible implementations

which meet the requirements of SECS-I. This section

describes one of those implementations.

R1-5.2 Source ID and Transaction ID — The system

bytes are divided into two parts, a source ID and a

transaction ID, as shown in Figure R1-4.

R1-5.3 Distinct source IDs are assigned to each

application level originator of primary messages in a

host or equipment. This allows a secondary message to

be routed to the source of the corresponding primary

message of the transaction. The transaction ID is an

integer that is incremented for each primary message

sent by the SECS-I interface. It is the same for all

blocks of a multi-block message.

R1-5.4 Actions — When a SECS-II message is passed

to the SECS-I protocol, the least significant bit of the

lower message ID is examined to determine whether the

message is primary (bit 1 = 1) or secondary (bit 1 = 0)

message. If the message is primary, transaction ID is

generated and placed in the transaction ID portion of

the system bytes. One method for generating the

transaction ID is to start with a value of 0 upon

initialization, and increment by 1 for each new

transaction, starting with 1 (not 0) when the largest

transaction ID value has been used. At the same time,

the application sender's source ID is placed in the

source ID portion of the system bytes. If the message is

secondary, the system bytes are the same as those of the

corresponding primary message. It is assumed that the

application generating the reply can identify the reply to

the message protocol, which has saved the system bytes

from the primary message.

R1-5.5 Block Send Failures (see Sections 5.8.2 and

6.8.1) — Since it is a requirement that the system bytes

be distinct from those used in blocks that were not

successfully sent since the last successful block send,

the use of two bytes for the transaction ID would

effectively satisfy the requirement by allowing for up to

65,536 consecutive block send failures.

R1-6 Using SECS in a Network

R1-6.1 The SECS standard can be used to control the

flow of data within a network of computers. A network

is an interconnection of computers or intelligent

controllers communicating with one another over

communications lines. Each intelligent entity is a node

of the network. Each node may have a number of

connections to other members of the network.

R1-6.2 One connection of equipment and computers is

in the form of a tree network with the processing

equipment at the ends of branches as shown in Figure

R1-5. Intermediate Nodes A and B service like pieces

of equipment; i.e., all the furnaces to Node A, all

masking to Node B, and so on, for more nodes.

R1-6.3 Node A monitors the three stations 1A, 2A, and

3A. Node A handles most of the normal requirements

of coordinating 1A, 2A, and 3A. Node A receives

instructions from Node C regarding the behavior

desired from 1A, 2A, and 3A. A CRT or operator

interface connected to Node A is shared by 1A, 2A, and

3A. Any node can direct messages up or down the tree.

A message such as an alarm can be sent from 1A to

Node A and from Node A to Node C which might be

considered the host of the network. Node A might be

part of a system supplied by a company which has its

own communications scheme for devices tied to Node

A. As long as the company provides one connection to

Node A which is consistent with this standard, then

Node A and its attached equipment can be connected to

the host, Node C, and collectively be called one node.

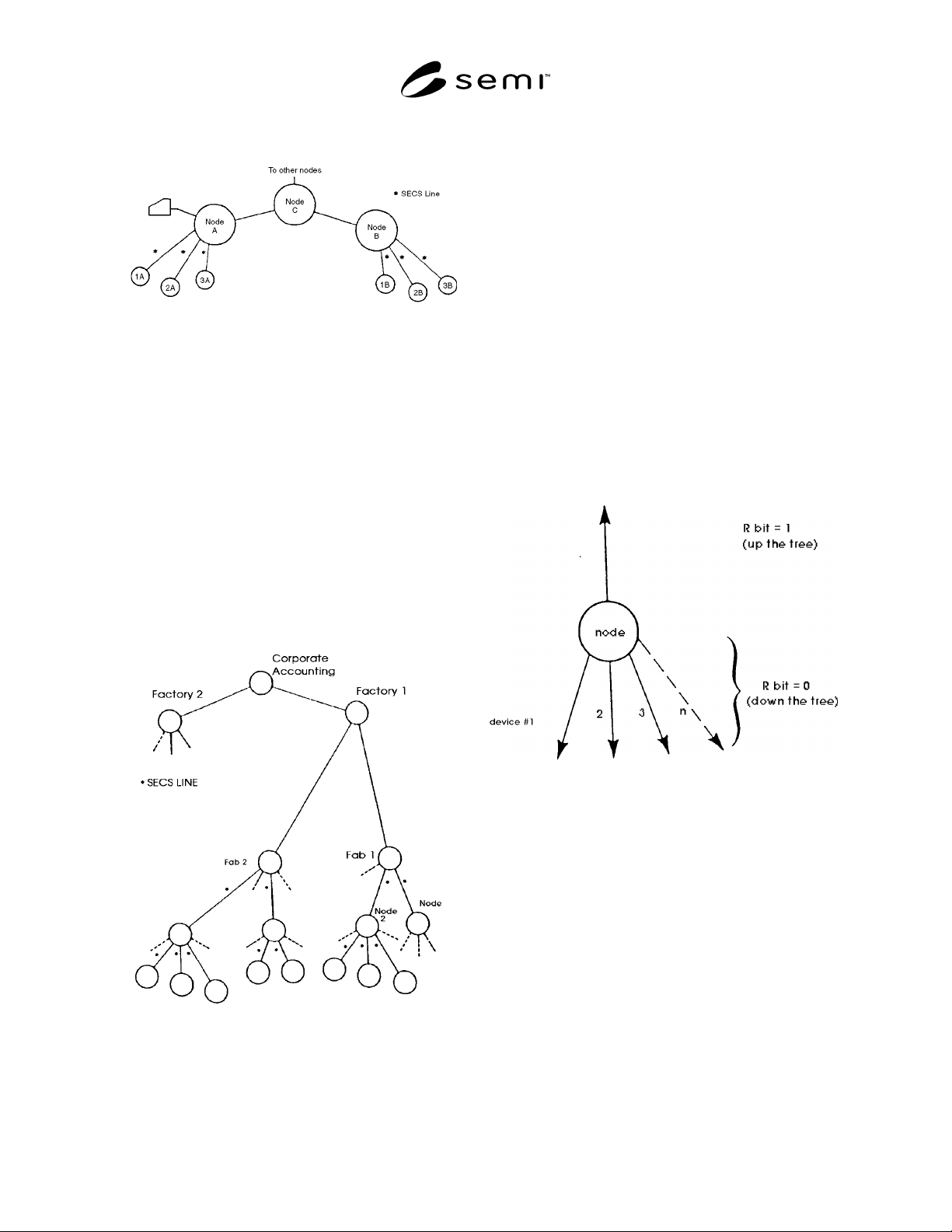

Figure R1-5

Tree Network

R1-6.4 This tree structure can be extended even further

as shown in Figure R1-6 to include multiple

manufacturing plants at remote sites. However, the

primary intent of this standard is to address the

communication between processing equipment and a

host. At higher levels of the tree, the message is

combined with more system level messages and more

computer file manipulations. At these levels, the

communications may require more complex or higher

speed standards. Thus, the SECS line is intended to be

used within one integrated circuit manufacturing area

rather that between general purpose computer centers,

although its only limitations for such a use would be

speed.

Figure R1-6

Extended Tree Network for a Large Organization

R1-6.5 The tree network is characterized by the fact

that there is only one possible path between any two

nodes in the network. This feature makes handling

messages in the tree network relatively easy when

compared to networks where more than one

communication path exists between nodes. In these

latter networks, the nodes must make some judgment

about which path to take, perhaps based on the

conditions of the lines or on the destination of the

message.

R1-6.6 The device ID and the R (Reply) bit play an

important role in directing messages in the network.

Each node of the three maintains a table of the device

below it. From the device code, it knows on which

branch to send the data. When a message is going from

the central node toward the device, the R-bit is set to 0.

When a message is being sent from the device up the

tree, the R-bit is set to 1. When a node sees the R-bit set

to 1, the message must take the one communication

direction that goes up the tree structure. Thus, the R-bit

serves to direct messages up the tree or down the tree,

depending on its value. At any given node, this

behavior may be explained in Figure R1-7.

Figure R1-7

Message Handling at a Node by Using the R-Bit

R1-7 The General Node Transaction Protocol

R1-7.1 The transaction protocol has three primary

functions. First, it coordinates the receiving of

messages that arrive in multiple blocks. Second, it

provides a mechanism for matching primary and

secondary messages. Third, it does error detection on

incomplete messages whether they are due to a break

during multiple blocks or a lack of reply messages. The

third function is vital to the maintenance of a working

system, as can be seen from the following discussion.

Once a transaction is begun with the first block of a

primary message, the receiving machine will have some

memory allocated to buffering or pointing to

interpreting modules. If the transaction remains

incomplete for some reasonable length of time, it may
