4.1.3 product package — the first tie, wrap, or container to a single item or quantity thereof that constitutes a
complete identifiable pack. Product package may be packaged together or a group of the parts packaged together.
Product package is also called unit pack.

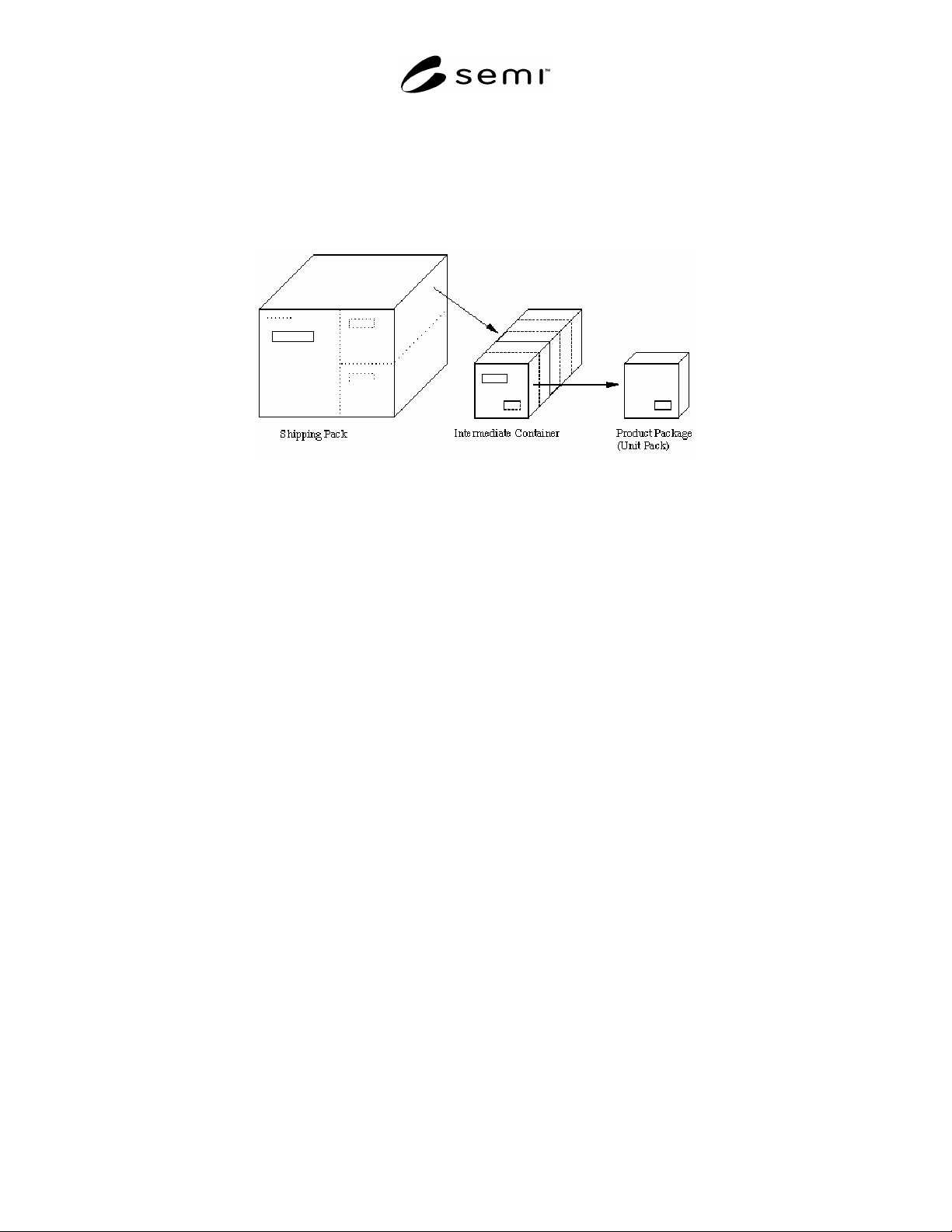

4.1.4 shipping pack — a package or shipping container/ final container that is of sufficient strength to be used in
commerce for packing, storing, and transporting products (see Figure 1).
Figure 1
Definition of Package Form
4.1.5 Package forms for each material type are defined in Table 1.
5 Ordering Information
5.1 Purchase orders for the materials furnished in an intermediate package to the specification shall be include the
following:
5.1.1 Content of message characters for customer product ID.
5.1.2 User-specified data, if required.
5.2 In addition, the following optional items may be specified.
5.2.1 Label location on the intermediate container.
5.2.2 Label size, if a label larger than the specified size in this specification.
6 Content of Data Field
6.1 The label shall include vendor field and customer field.
6.2 The customer field shall contain three data fields for barcode symbols. Each data field shall contain a maximum
17 message in addition to the start and stop characters. The content of the barcode symbol is shown in Table 2.
6.2.1 The upper data field shall contain a barcode symbol with customer product ID which consists of maximum 15
characters, preceded by a “P”, the data identifier for this item as specified in ANSI/FACT-1.
6.2.2 The middle data field shall contain a barcode symbol with lot number which consists of maximum 12
characters, preceded by a “1T”, the data identifier for this item as specified in ANSI/FACT-1.
6.2.3 The lower data field shall contain quantity and the production date concatenated into a single barcode symbol.
Quantity is indicated by maximum 7 characters, preceded by a “7Q”, the data identifier for this item as specified in
ANSI/FACT-1. The production date is indicated by 6 characters, preceded by a “D”, the data identifier for this item
as specified in ANSI/FACT-1. The quantity and the production date are separated by a space.
6.2.3.1 Quantity indicated in this field shall be quantity in the intermediate container. The unit of measure should
follow the quantity data to indicate what unit of measure is being used in the quantity count. The Unit uses 2
characters listed in Appendix D of ANSI/FACT-1.
SEMI G71-0996 © SEMI 1996, 2004 2
6.2.3.2 Quantity that are not filled by a message characters shall contain hyphen (-) as a place saver to that the
symbol always has exactly 7 characters.
6.3 Vendor company name and its logo mark; supplier’s ID may be included in the supplier’s field.
Table 1
Explanation Data Identifier No. of Characters
Part No. Customer part number. The number is assigned by the customer in the
ordering information.
P 15 max.
Lot No. Lot number is assigned by the supplier to identify or trace a unique
group of the entries.
1T 12 max.
Quantity Quantity and unit within the package. The unit uses characters listed in
Appendix D of ANSI/FACT-1.
7Q 7
Production Data The Date of production. The date is shown by “YYMMDD”. D 6
Supplier’s Field Supplier’s name, supplier’s company logo mark, supplier’s code
(agreed between supplier and customer) country, etc.
- (Option)
Figure 2
Barcode Arrangement
7 Barcode Character
7.1 The barcode characters specified in AIM USS-39 shall be used.
7.2 Character Set — The Code 39 character set consists of 43 characters: 0–9, A–Z, ., $, /, %, and space. In
addition, an asterisk (*) is used only for both the stop and stop characters.
7.3 Print Quality — The Code 39 print quality shall be B/03/630 or better in accordance with ANSI X3.182. To
assure reading efficiency, the minimum reflectance of the quiet zones shall be 60%, the minimum reflectance of
spaces shall be 51%, and the maximum reflectance of bars shall be 10%.
7.4 Symbol Dimensions — Barcode symbol dimensions shall be as listed in Table 2.
Table 2 Symbol Dimensions
Code 39 Dimension
Narrow Element Width 0.250 mm
Wide Element Width 0.625 mm (Element Width Ratio 1:2.5)
Space between Characters 0.250 mm
Character Height 8.0 mm
Quiet Zone 5.0 mm (after and before barcode symbol)
Space between Barcode Field 5.0 mm
3 SEMI G71-0996 © SEMI 1996, 2004
8 Human-Readable Interpretation (HRI) Symbols
8.1 Each barcode symbol data field on the customer field shall have an associated human-readable data field either
immediately above or below it.
8.1.1 Start and stop characters shall not be included, but the data field identifier shall be included.
8.2 The height of human-readable characters shall be 3.0 mm.
8.3 The spaces above and below the human-readable characters shall be 1.0 mm.
9 Dimensions and Placement of Data Field on Label
9.1 The size of barcode label shall be 42 mm in height and 120 mm in width.
9.2 The dimensions and placement of data field on label are shown in Figure 3.
9.3 The barcode and human-readable characters shall be placed within this area of the label as indicated in Figure 3.
Figure 3
Dimensions and Placement of Data Field on Label
Horizontal Dimension Value (mm) Vertical Dimension Value (mm)
L 120.0 W 40
S 40.0 M 2.0
C 80.0 H 3.0
BL 68.625 S 1.0
Q1 5.0 BH 8.0
Q2 6.375
10 Barcode Label Location
10.1 The barcode label shall be located on the end of the packages for easy identification when the packages are
temporarily stored in the storage shelf.
SEMI G71-0996 © SEMI 1996, 2004 4
