SEMI T6-0697 © SEMI 1997, 2004 36
Segment: SE Transaction Set Trailer
Level: Summary
Loop: _______
Usage: Mandatory
Max Use: 1
Purpose: To indicate the end of the transaction set and provide the count of the transmitted segments (including
the beginning (ST) and ending (SE) segments).
Comments: 1 SE is the last segment of each transaction set.
Data Element Summary
SEMI USE: Ref. Des. Data Element Name Attributes
M SE01 96 Number of Included Segments M N0 1/10
Total number of segments included in a transaction set including ST and SE segments.
M SE02 329 Transaction Set Control Number M AN 4/9
Identifying control number that must be unique within the transaction set functional
group assigned by the originator for a transaction set.
SEMI T6-0697 © SEMI 1997, 2004 37
APPENDIX 5
EXAMPLES OF EDI TRANSMISSIONS
NOTICE: The material in this appendix is an official part of SEMI T6 and was approved by full letter ballot procedures.

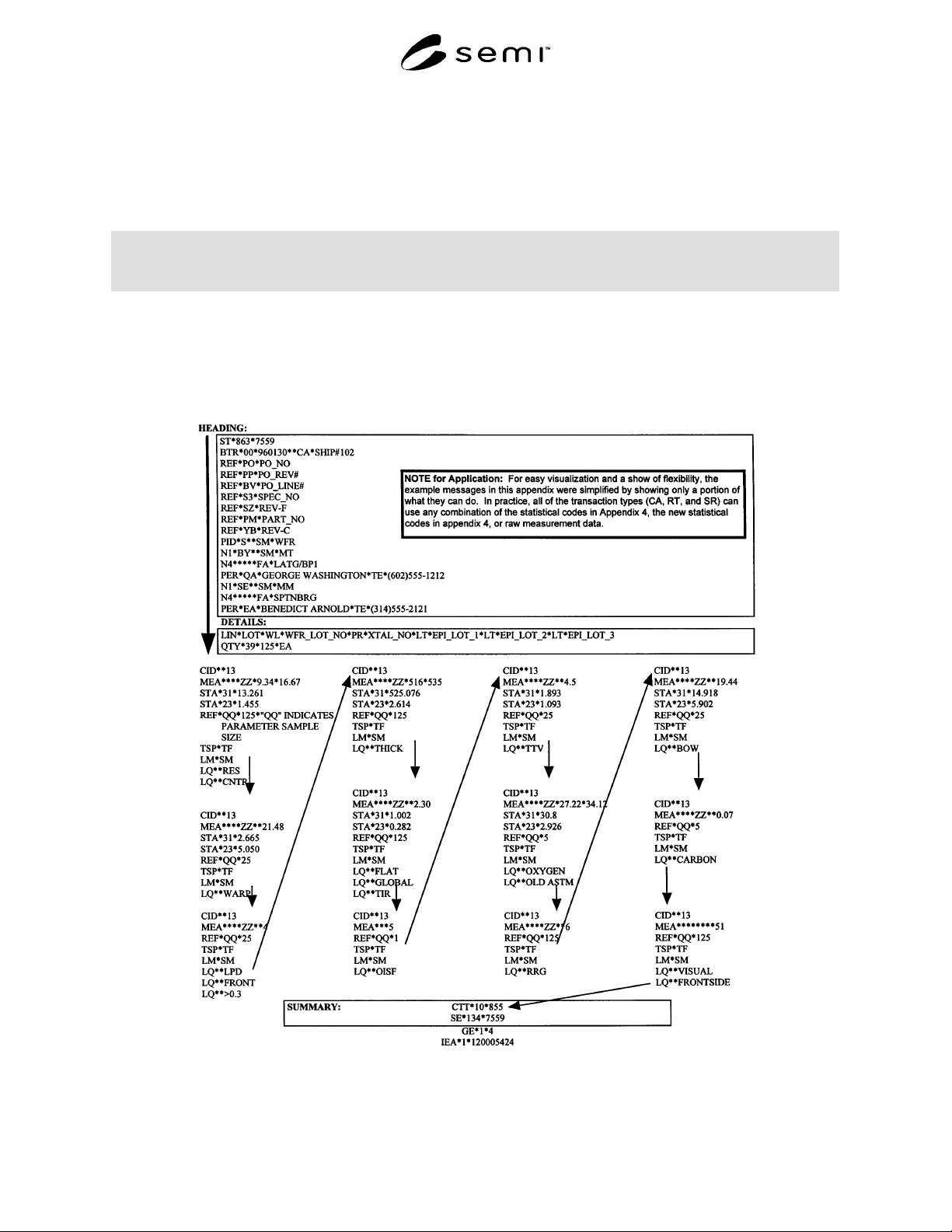

A5-1 Certificate of Analysis Transmission
The "ISA" and "GS" segments indicated at the start of this example and the "GE" and "IEA" segments located at the
end are generally handled by the Information System (IS) dept. in charge of managing the translation and routing of
EDI messages through various VAN channels, and are not part of this document.
ISA*00* *00* *01*9012345720000 *01*908887732000*960130*2049*U*00200*120005424*0*T*:
GS*RT*901234572000*908887732000*960130*2049*4*T*003050
SEMI T6-0697 © SEMI 1997, 2004 38

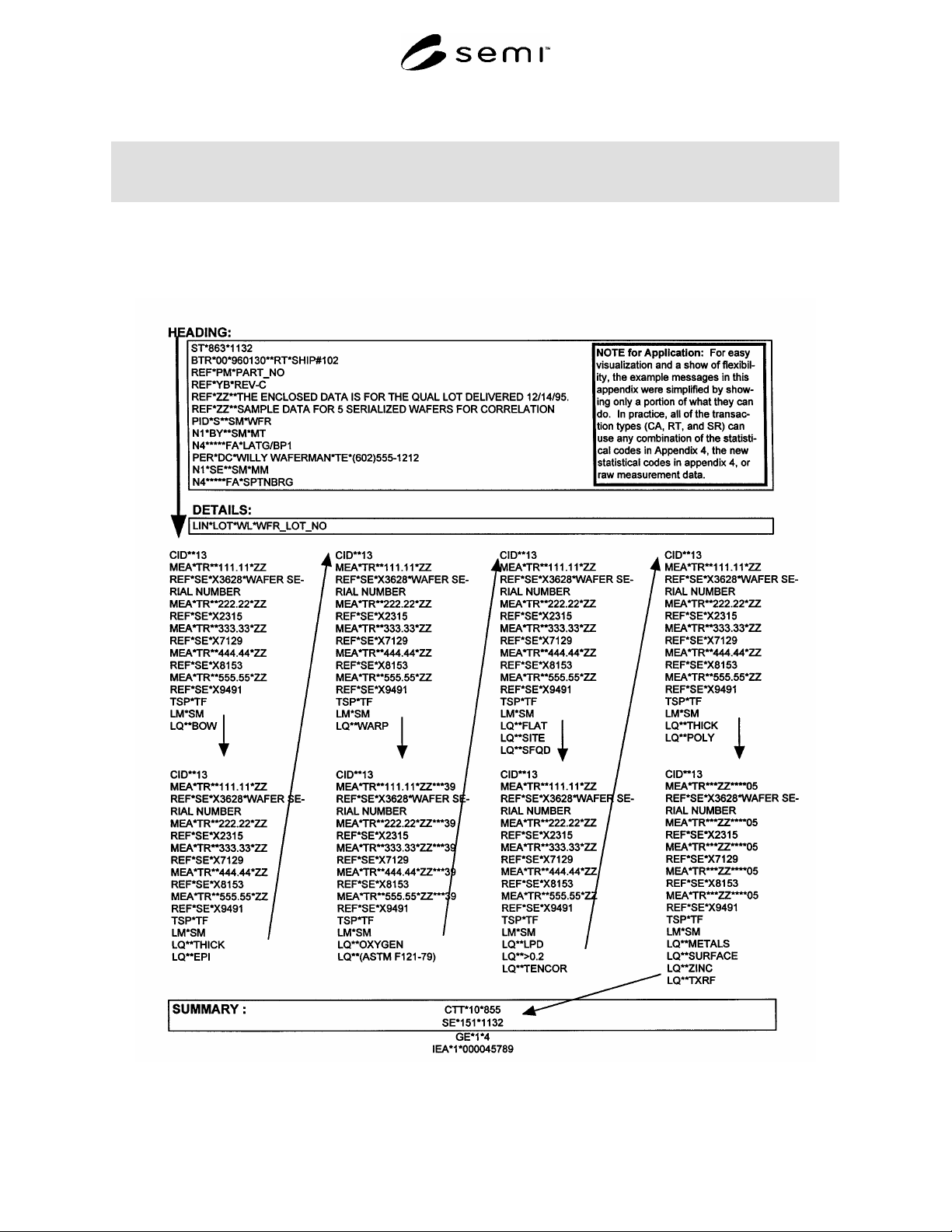

A5-2 Test Results Transmission
The "ISA" and "GS" segments indicated at the start of this example and the "GE" and "IEA" segments located at the
end are generally handled by the Information System (IS) dept. in charge of managing the translation and routing of
EDI messages through various VAN channels, and are not part of this document.
ISA*00* *00* *01*9012345720000 *01*908887732000 *960130*2049*U*00200*000045789*0*T*:
GS*RT*901234572000*908887732000*960130*2049*4*T*003050
