SEMI P29-0997 © SEMI 1997 1 SEMI P29-0997 GUIDELINE FOR DESCRIPTION OF CHA R A CTE RISTICS SPECIFIC TO HALFTONE/ A TTEN UATED PHASE SHIFT MASKS AND MA SK BLANKS 1 Purpose 1.1 This guide line d efine s the cha r a c t er …
SEMI P28-96 © SEMI 1996 4

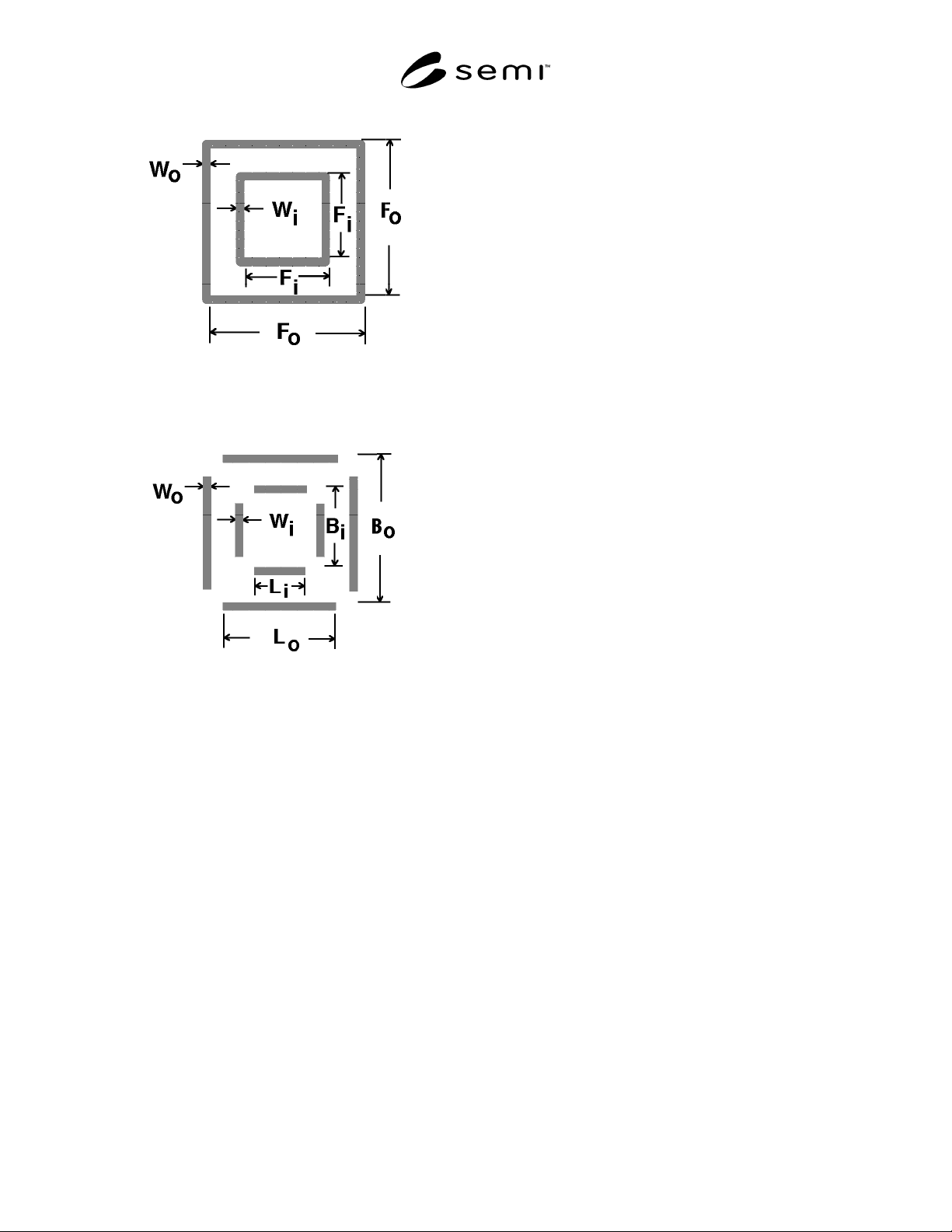

Figure 2
Frame-in-Frame
Figure 3
Bars-in-Bars
NOTICE: These standards do not purport to address
safety issues, if any, associated with their use. It is the
responsibility of the user of these standards to establish
appropriate safety and health practices and determine
the applicability of regulatory limitations prior to use.
SEMI makes no warranties or representations as to the
suitability of the standards set forth herein for any
particular application. The determination of the
suitability of the standard is solely the responsibility of
the user. Users are cautioned to refer to manufacturer’s
instructions, product labels, product data sheets, and
other relevant literature respecting any materials
mentioned herein. These standards are subject to
change without notice.
The user’s attention is called to the possibility that
compliance with this standard may require use of
copyrighted material or of an invention covered by
patent rights. By publication of this standard, SEMI
takes no position respecting the validity of any patent
rights or copyrights asserted in connection with any
item mentioned in this standard. Users of this standard
are expressly advised that determination of any such
patent rights or copyrights, and the risk of infringement
of such rights, are entirely their own responsibility.
Copyright by SEMI® (Semiconductor Equipment and Materials
International), 3081 Zanker Road, San Jose, CA 95134. Reproduction
of the contents in whole or in part is forbidden without express written
consent of SEMI.
SEMI P29-0997 © SEMI 19971
SEMI P29-0997
GUIDELINE FOR DESCRIPTION OF CHARACTERISTICS SPECIFIC TO
HALFTONE/ATTENUATED PHASE SHIFT MASKS AND MASK BLANKS
1 Purpose
1.1 This guideline defines the characteristics specific
to halftone/attenuated phase shift masks and mask
blanks.
1.2 This guideline is intended to provide a baseline for
specification of phase shift masks and mask blanks to
be agreed between the supplier and user.
Because the phase shift mask is still under
development, it may be needed to continue the research
activity to standardize a final specification.
2 Scope
2.1 This guideline applies to halftone/attenuated phase
shift masks and mask blanks for g-line, i-line, KrF,
ArF, and/or DUV wavelengths.
2.2 These types of masks can be called either halftone
or attenuated phase shift masks. This guideline uses
“halftone phase shift masks” as the nomenclature.
2.3 Items not described in this guideline shall conform
to SEMI P1.
3 Referenced Documents
NOTE: As listed or revised, all documents cited shall be the
latest publications of adopted standards.
3.1 SEMI Documents
SEMI P1 — Specification for Hard Surface Photomask
Substrates
SEMI P22 — Guideline for Photomask Defect
Classification and Size Definition
4 Terminology
4.1 Terms for General Description
4.1.1 halftone phase shift mask — a photomask
designed to increase resolution through intentional
control of light transmittance and phase against a
transparent part by replacing a conventional opaque
pattern with a thin, partially transmitting film (halftone
shifter film) that controls light phase difference and
transmittance.
4.1.2 phase shift mask — a photomask designed to
increase resolution through intentional control of the
exposure light phase.
4.2 Terms for Structural Description
4.2.1 additional film type opaque ring — an opaque
ring composed of light shield materials other than the
shifter.
4.2.2 embedded shifter type opaque ring — an opaque
ring composed of small rectangles or line/space patterns
in a shifter.
4.2.3 multilayer halftone phase shift mask — a
halftone phase shift mask having multiple thin films of
different material compositions to give a certain phase
difference and transmittance. The layer that adjoins the
substrate should be called the first layer.
4.2.4 opaque ring — an area of a certain width,
adjacent to the periphery of the desired exposure area
on a reticle, located in the non-exposure area of the
reticle to obtain a dark portion required in a wafer
lithography process.
4.2.5 single-layer halftone phase shift mask —
halftone phase shift mask having a thin film of uniform
material composition to give a certain phase difference
and transmittance.
4.3 Terms for Description of Optic al Characteristics

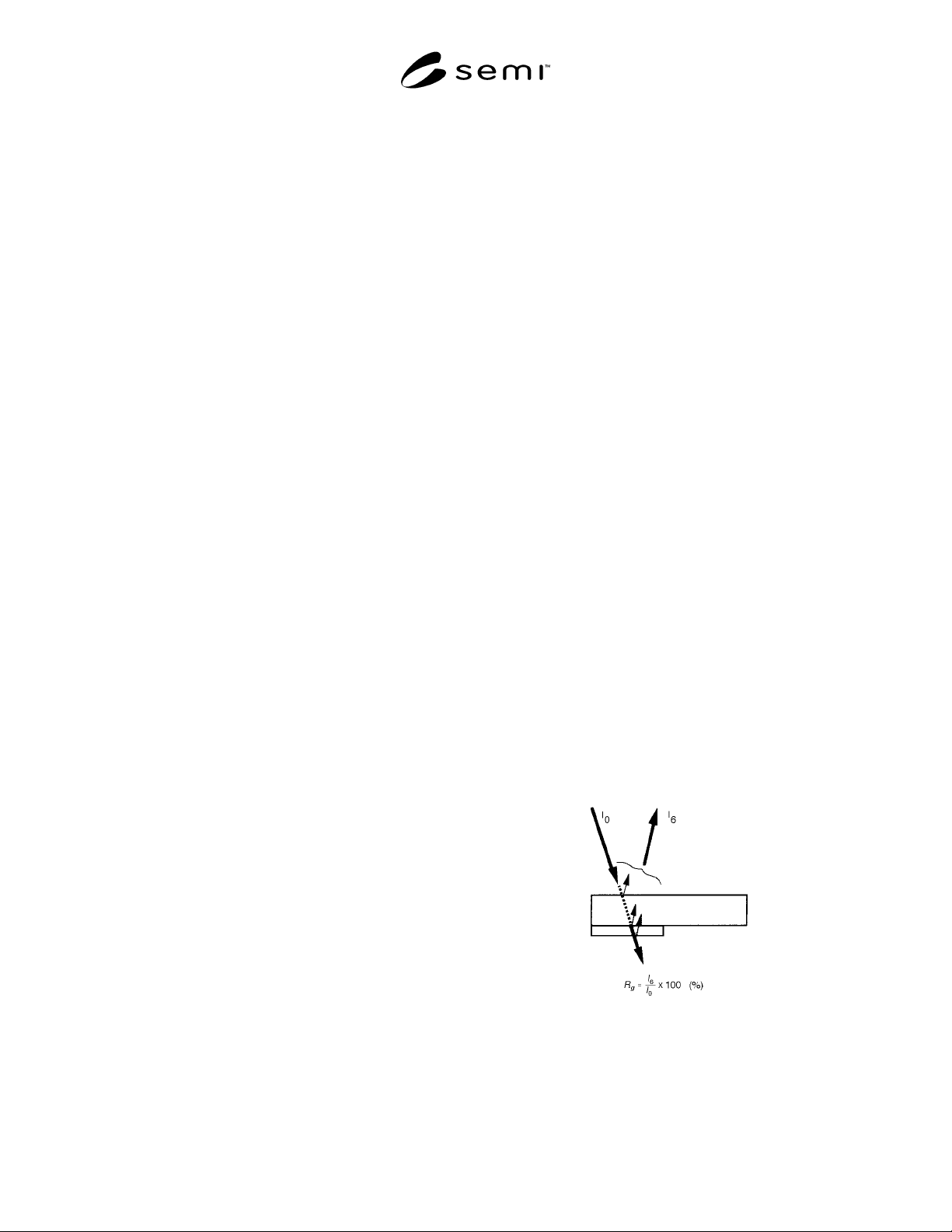

4.3.1 glass side reflectivity — a ratio of intensity of
reflected light to intensity of incident light into the glass
side that is the backside of the shifter film. The
intensity of incident light is usually calculated by the
intensity of reflected light measured using a reference
mirror. (Figure 1 illustrates the glass side reflectivity.)
Figure 1
Glass Side Reflectivity
SEMI P29-0997 © SEMI 1997 2
4.3.2 opaque ring transmittance — a ratio of intensity
of light transmitted through the additional film type
opaque ring area to intensity of incident light measured
with air reference. (Figure 2 illustrates the opaque ring
transmittance.)
NOTE 1: For a halftone phase shift mask with embedded
shifter type opaque ring, transmittance of the opaque ring area
is not defined in this guideline because it depends heavily on
the characteristics of the optical systems used.
Figure 2
Opaque Ring Transmittance
4.3.3 opening area transmittance — a ratio of
intensity of light transmitted through an opening area of
a patterned halftone phase shift mask to intensity of
vertical incident light measured with air reference.
(Figure 3 illustrates the opening area transmittance.)
Figure 3
Opening Area Transmittance
4.3.4 phase difference — a difference in phase of light
generated by vertical transmission through a shifter area
and an opening area with air equivalent to the shifter
film in thickness.
4.3.5 relative transmittance — a ratio of intensity of
light transmitted through a shifter area to intensity of
light transmitted through an opening area. (Figure 4
illustrates the relative transmittance.)
Figure 4
Relative Transmittance
4.3.6 shifter side reflectivity — a ratio of intensity of
reflected light to intensity of incident light onto the
surface of a shifter film. The reflected light is the sum
of the reflected light from the shifter surface and
reflected light from the boundary between shifter and
glass, and the boundary between glass and air. The
reflectivity depends on the incident angle, the
wavelength of the light, and the extent of polarization
of the incident light. The intensity of incident light is
usually calculated by the intensity of reflected light
measured using reference mirror. (Figure 5 illustrates
the shifter side reflectivity.)
Figure 5
Shifter Side Reflectivity
4.3.7 shifter area transmittance — ratio of intensity of
light transmitted through a shifter area of a halftone
phase shift mask (blank) to intensity of vertical incident
light measured with air reference. (Figure 6 illustrates
the shifter transmittance.)
