SEMI G41-87 © SEMI 1987 6 N OTE: 1. THE OBLONG SLOTS IN FRAMES, SLOT DIMENSIONS AND LOCATIONS ARE OPTIONAL. Figure 9 14 Lead Du al SOIC .300 (Wide) Figure 10 16 Lead Du al SOIC .300 (Wide) Figure 11 18 Lead Du al SOIC .3…

100%1 / 7923
SEMI G41-87 © SEMI 19875
Note:
1. The oblong slots in frames, slot dimensions and locations are optional.
Figure 7
8 Lead Dual SOIC .150 (Narrow)
N
OTE:
1. THE OBLONG SLOTS IN FRAMES, SLOT DIMENSIONS AND LOCATIONS ARE
OPTIONAL
Figure 8
16 Lead SOIC .150 (Narrow)
SEMI G41-87 © SEMI 1987 6
N
OTE:
1. THE OBLONG SLOTS IN FRAMES, SLOT DIMENSIONS AND LOCATIONS
ARE OPTIONAL.
Figure 9

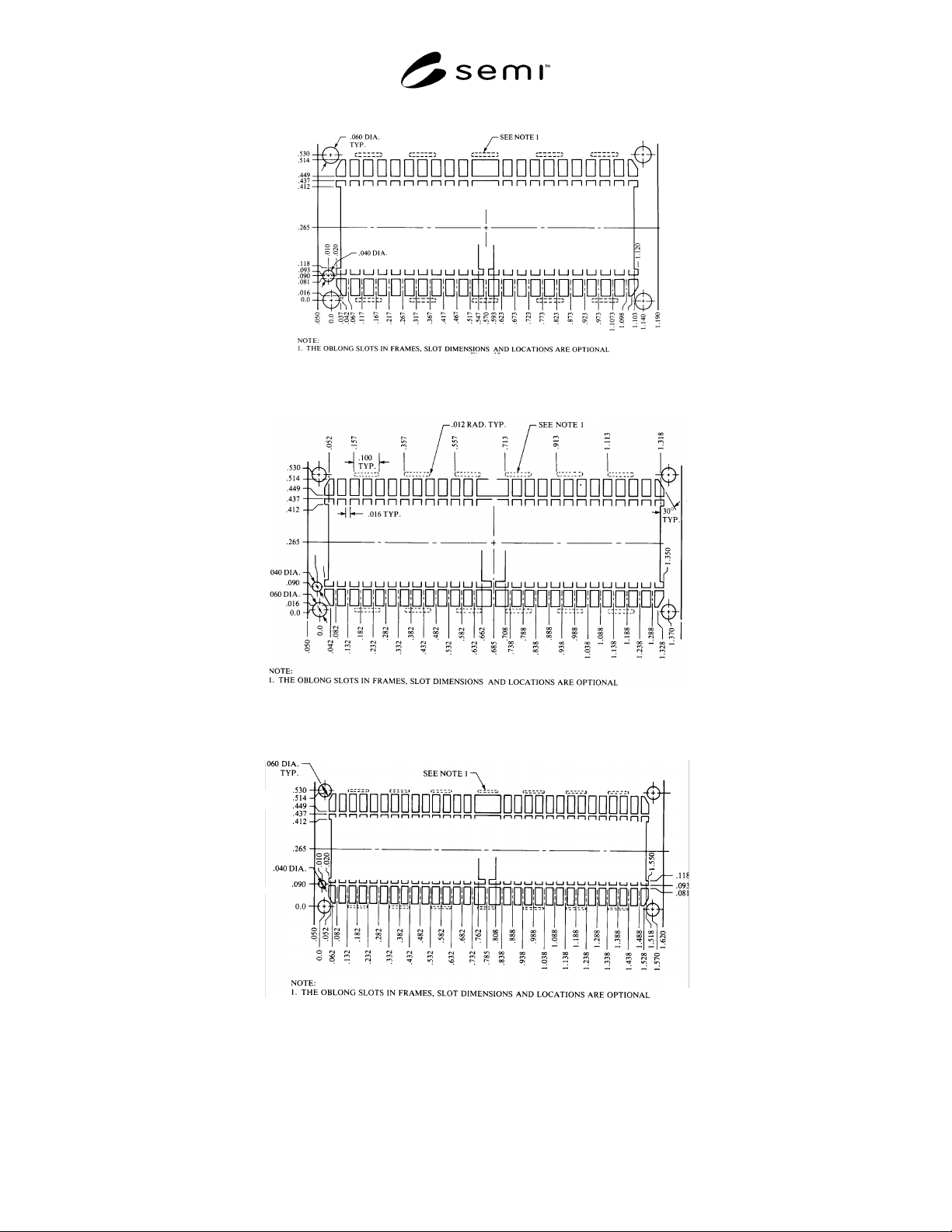

14 Lead Dual SOIC .300 (Wide)
Figure 10
16 Lead Dual SOIC .300 (Wide)
Figure 11
18 Lead Dual SOIC .300 (Wide)
SEMI G41-87 © SEMI 19877
Figure 12
20 Lead Dual SOIC .300 (Wide)
Figure 13
24 Lead Dual SOIC .300 (Wide)
Figure 14
28 Lead Dual SOIC .300 (Wide)
