SEMI F42-0600 © SEMI 1999, 2000 8
Table 5 Example of Test Data Sheet for Characterizing Equipment Susceptibility to Voltage Sags
Result
Event % Va-n % Vb-n % Vc-n DUT Mode
(Idle or
Processing)
Voltage Sag
Duration
Actual Time to
Interrupt (Seconds)
Comments
1 95 100 100 Processing 0.05 OK Equipment OK.
2 95 100 100 Processing 0.20 OK Equipment OK.
3 95 100 100 Processing 0.50 OK Equipment OK.
4 95 100 100 Processing 1.00 OK Equipment OK.
↓↓ ↓ ↓ ↓ ↓ ↓ ↓
53 30 100 100 Processing 0.05 OK Equipment OK.
54 30 100 100 Processing 0.20 0.16 Equipment Shutdown: EMO Relay
CR1 dropout
55 30 100 100 Processing 0.50 INT No Test - Beyond Interrupt
56 30 100 100 Processing 1.00 INT No Test - Beyond Interrupt
↓↓ ↓ ↓ ↓ ↓ ↓ ↓
129 100 35 100 Processing 0.20 OK Equipment OK.
130 100 35 100 Processing 0.50 OK Equipment OK.
131 100 35 100 Processing 1.00 OK Equipment OK.
132 100 30 100 Processing 0.05 OK Equipment OK.
133 100 30 100 Processing 0.20 0.16 Power Supply PS1 dropout
↓↓ ↓ ↓ ↓ ↓ ↓ ↓
233 100 100 5 Processing 0.05 OK Equipment OK.
234 100 100 5 Processing 0.20 0.16 Equipment Shutdown: EMO Relay
CR1 dropout
235 100 100 5 Processing 0.50 INT No Test - Beyond Interrupt
236 100 100 5 Processing 1.00 INT No Test - Beyond Interrupt
237 100 100 0 Processing 0.05 OK Equipment OK.
238 100 100 0 Processing 0.20 0.16 Same result as event 234.
239 100 100 0 Processing 0.50 INT No Test - Beyond Interrupt
240 100 100 0 Processing 1.00 INT No Test - Beyond Interrupt
.. . .

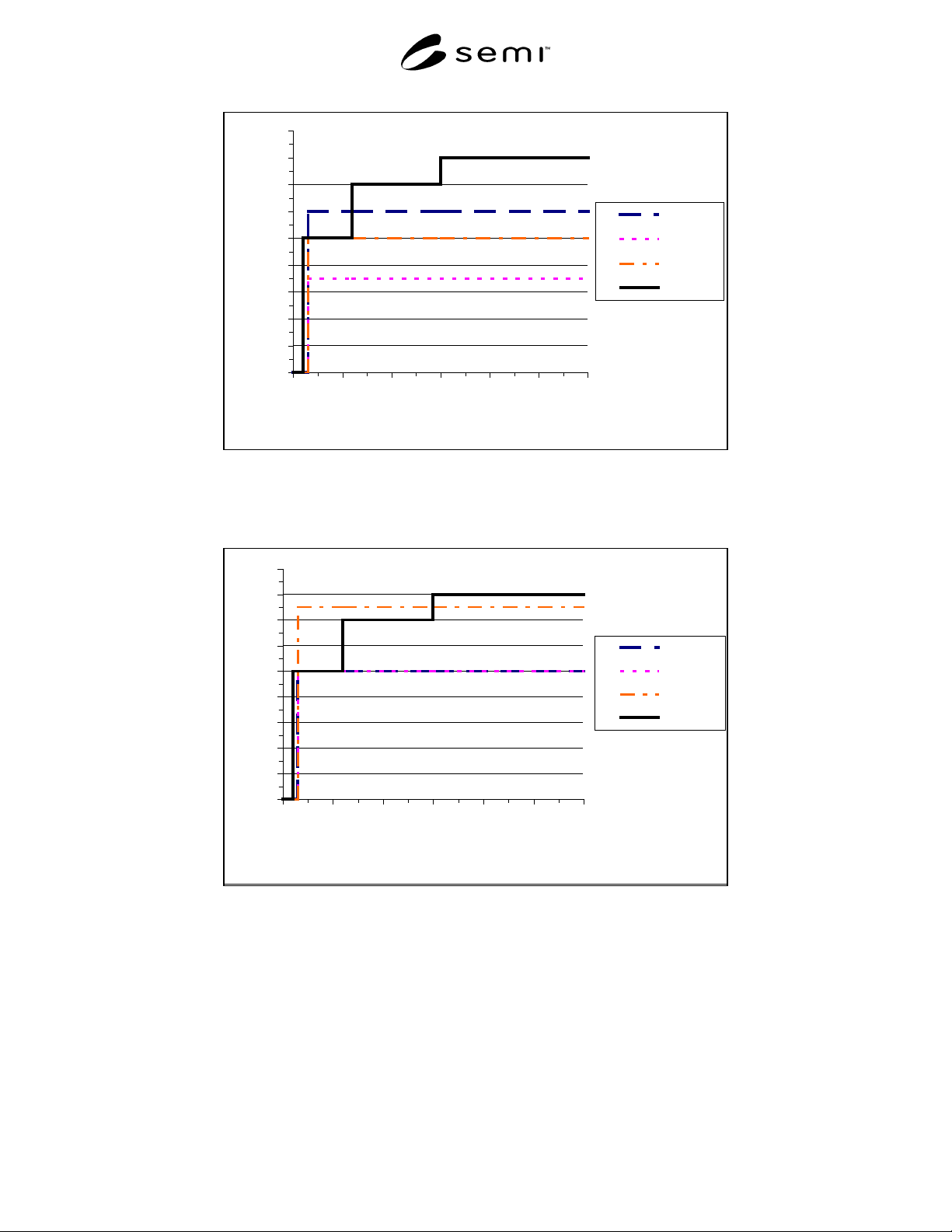

SEMI F42-0600 © SEMI 1999, 20009
0
10
20
30
40
50
60
70
80
90
0 102030405060
Seconds
%Vnom
Van
Vbn
Vcn
Spec
NOTE: Equipment did not meet standard during A to neutral sag events.
Figure 4
Example of Single-Phase Test Results
0
10
20
30
40
50
60
70
80
90
0 102030405060
Seconds
%Vnom
Vab
Vbc
Vac
Spec
NOTE: Equipment did not meet specification during A-C to sag events.
Figure 5
Example of Phase-to-Phase Test Results
SEMI F42-0600 © SEMI 1999, 2000 10
13 Related Documents
13.1 IEC Standard
2
13.1.1 IEC 61000-4-11 — Electromagnetic
Compatibility (EMC) - Part 4: Testing and Measuring
Techniques - Section 11: Voltage Dips, Short
Interruptions and Voltage Variations Immunity Tests.
NOTICE: SEMI makes no warranties or
representations as to the suitability of the test method
set forth herein for any particular application. The
determination of the suitability of the test method is
solely the responsibility of the user. Users are
cautioned to refer to manufacturer’s instructions,
product labels, product data sheets, and other relevant
literature respecting any materials mentioned herein.
These test methods are subject to change without
notice.
The user’s attention is called to the possibility that
compliance with this test method may require use of
copyrighted material or of an invention covered by
patent rights. By publication of this test method, SEMI
takes no position respecting the validity of any patent
rights or copyrights asserted in connection with any
item mentioned in this test method. Users of this test
method are expressly advised that determination of any
such patent rights or copyrights, and the risk of
infringement of such rights, are entirely their own
responsibility.
2 International Electrotechnical Commission, 3, rue de Varembé PO
Box 131, 1211 Geneva 20 Switzerland
